1 - 6 MC21XX Series User Guide

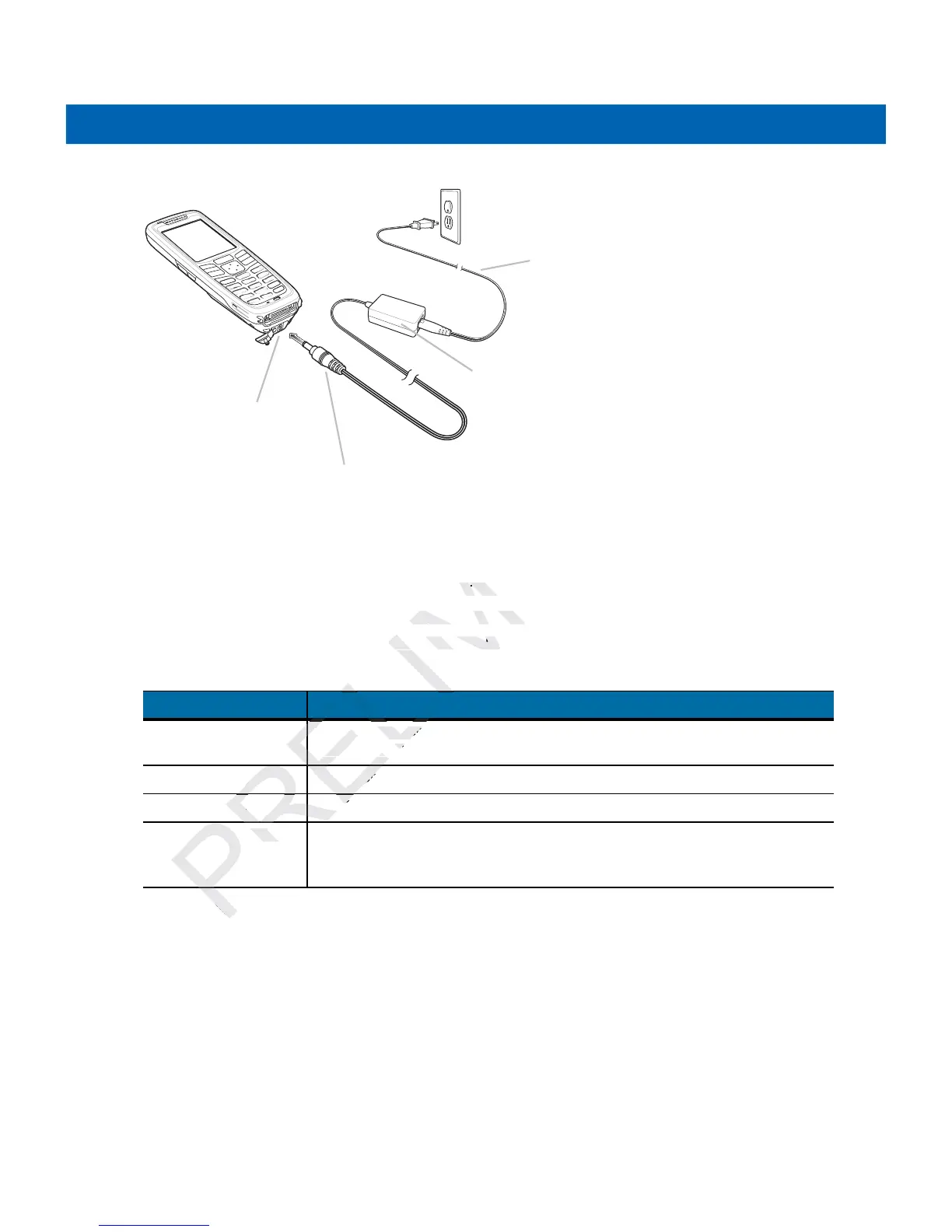

Figure 1-6 Charging Using Power Supply
1. Connect the AC Line Cord to the power supply.
2. Connect the AC plug to an AC outlet.
3. Lift the rubber plug covering the MC21XX power port.
4. Plug the power supply barrel jack into the power port on the bottom of the MC21XX.
The MC21XX starts to charge. The LED Indicator indicates the charging status.
The following accessories can also be used to charge the battery:
• Cradle (and a power supply):
• Single-slot USB Cradle.
• Cables (and a power supply):
• USB ActiveSync/Charge Cable.
• Chargers (and a power supply):
• Four-slot Spare Battery Charger.
See Chapter 6, Accessories for charging instructions using the accessories.
Table 1-1 LED Indicators
LED Indication
Off MC21XX not placed correctly in the cradle; charge cable not connected correctly or
charger is not powered.
Fast Blinking Amber Error in charging. Check placement of the
MC21XX .
Slow Blinking Amber
MC21XX is charging.
Solid Amber Charging complete.
Note: When the battery is initially inserted in the
MC21XX , the LED flashes once if
the battery power is low or the battery is not fully inserted.
Power Supply
Power Port
Barrel Jack
AC Line Cord
