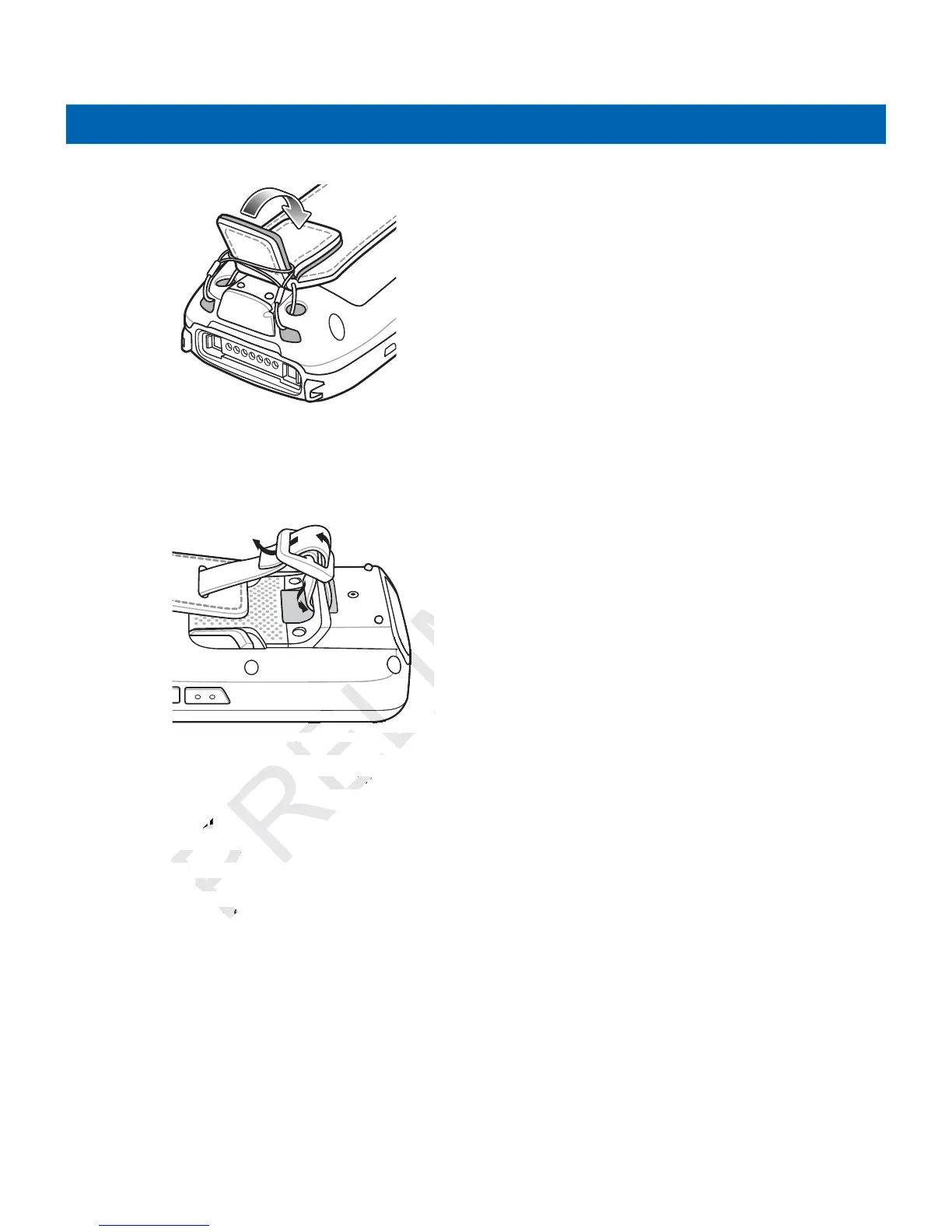

Figure 6-13 Secure Tab
3. Press the tab down to secure.
4. Feed the belt through the handstrap bar.
Figure 6-14 Connect Handstrap to Handstrap Bar
5. Feed the belt through the buckle.
Removal
To remove the handstrap:
1. Pull the belt through the buckle.
2. Pull the belt through the handstrap bar.
3. Lift the strap tab.
4. Lift both loops off the strap tab.
5. Pull loops through the mounting slots.
