Battery Discharging
(Discharging to find 0%
Rated Capacity)
STORAGE DISCHRGE
Steady Amber
Rapid Charging (Charging
to selection)
STORAGE CHARGE
xx% Rated Cap
Steady Red
Nearly Charged (Charging
to selection)
STORE TRKL CHRGE
xx% Rated Cap
Flashing Green
• Charge Complete
• Ready to Store
LONGTERM STORAGE
xx% Rated Cap
Battery does not require
Calibration:
Steady Green
Battery requires Calibration:
Alternating Amber/
Green
Fault
• Battery Faulted
• No discharge current
• Capacity too low to
complete charge
Warning:
NOT CHARGEABLE
REMOVE& REINSERT
or
CANNOT DISCHARGE
FOR LT STORAGE
or
STORE INCOMPLETE
Low Capacity:yy%
Flashing Red
Standby
• Battery is waiting to rapid
charge.
• Battery may be too hot,
too cold, or low voltage.
Warning:
HOT BATTERY
WAITING TO CHRGE
or
COLD BATTERY
WAITING TO CHRGE
or
VERY LOW BATTERY
WAITING TO CHRGE
Flashing Amber

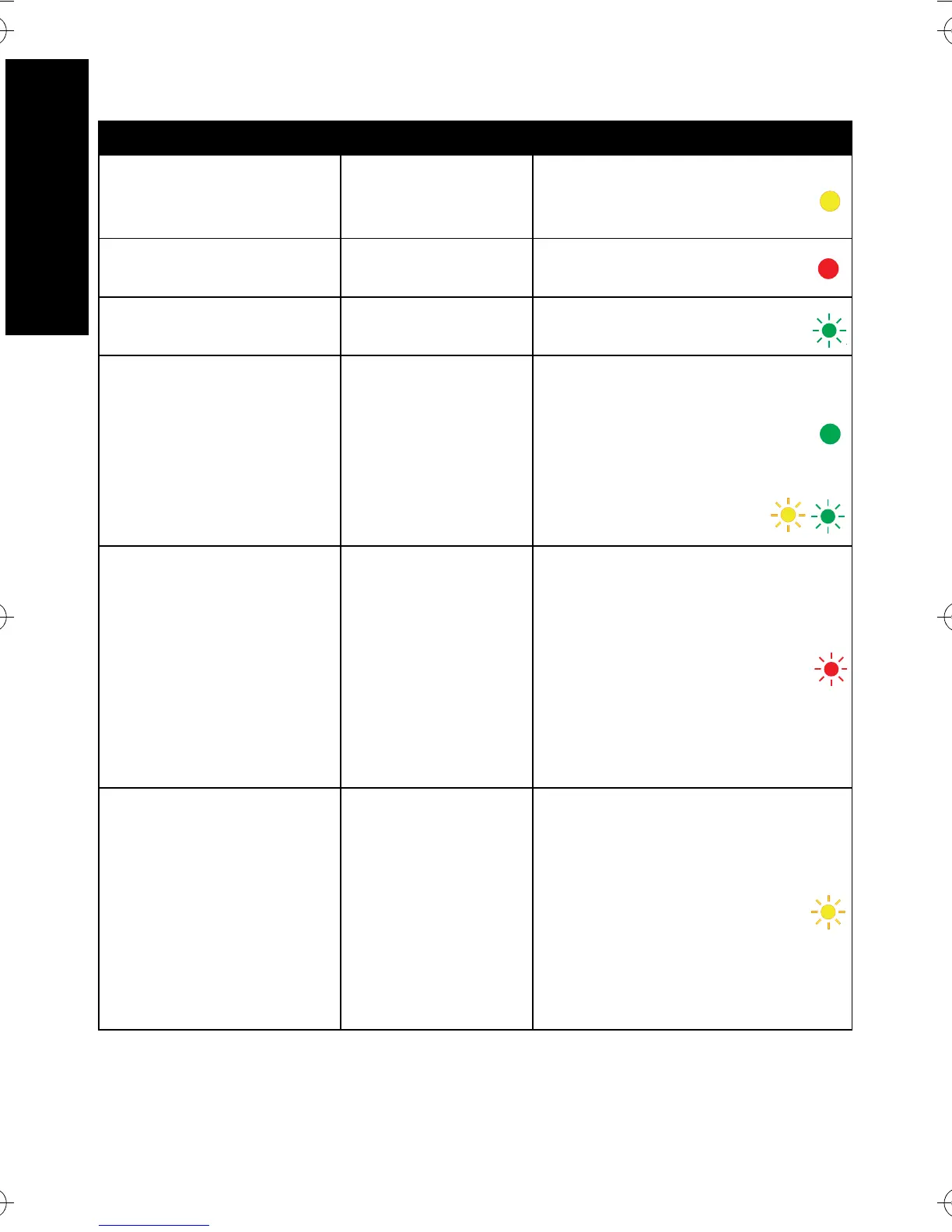

Table 14: Preparing New (Never Calibrated) IMPRES 2 or IMPRES
Batteries for Long-Term Storage - Calibration Required (Cont.)
Status Charger Display LED Indicator
