Symbologies 11 - 23

UCC Coupon Extended Code

Parameter # 55h

Enable this parameter to decode UPC-A bar codes starting with digit ‘5’, EAN-13 bar codes starting with digit ‘99’,

and UPC-A/GS1-128 Coupon Codes. UPCA, EAN-13, and GS1-128 must be enabled to scan all types of

Coupon Codes.

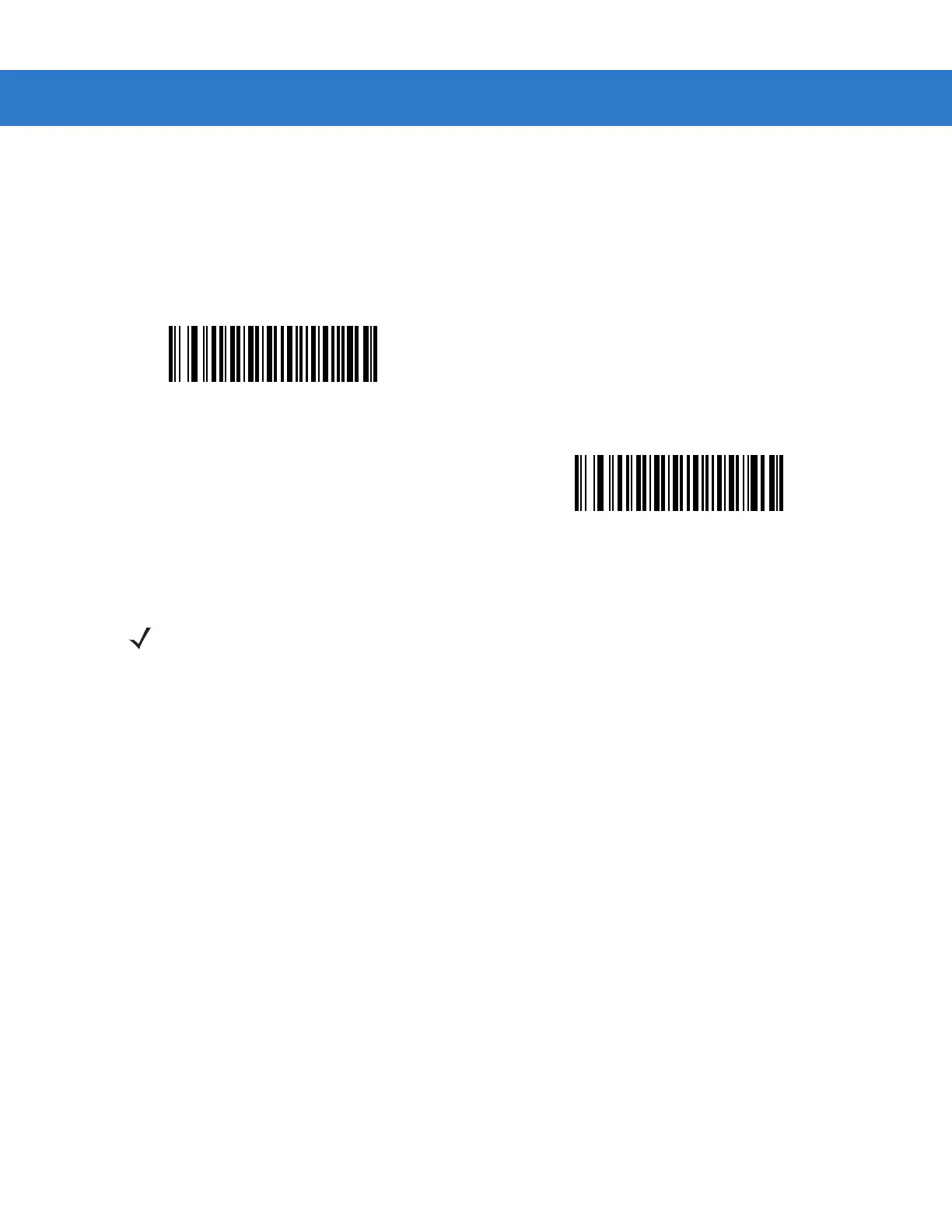

Enable UCC Coupon Extended Code

(01h)

*Disable UCC Coupon Extended Code

(00h)

NOTE See UPC/EAN/JAN Supplemental Redundancy on page 11-14 to control autodiscrimination of the

GS1-128 (right half) of a coupon code.
