Motorola Symbol DS9808 Product Reference Guide
4
of 1
of 1 rating
416 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
13 - 4
Symbol DS9808
Product Reference Guide

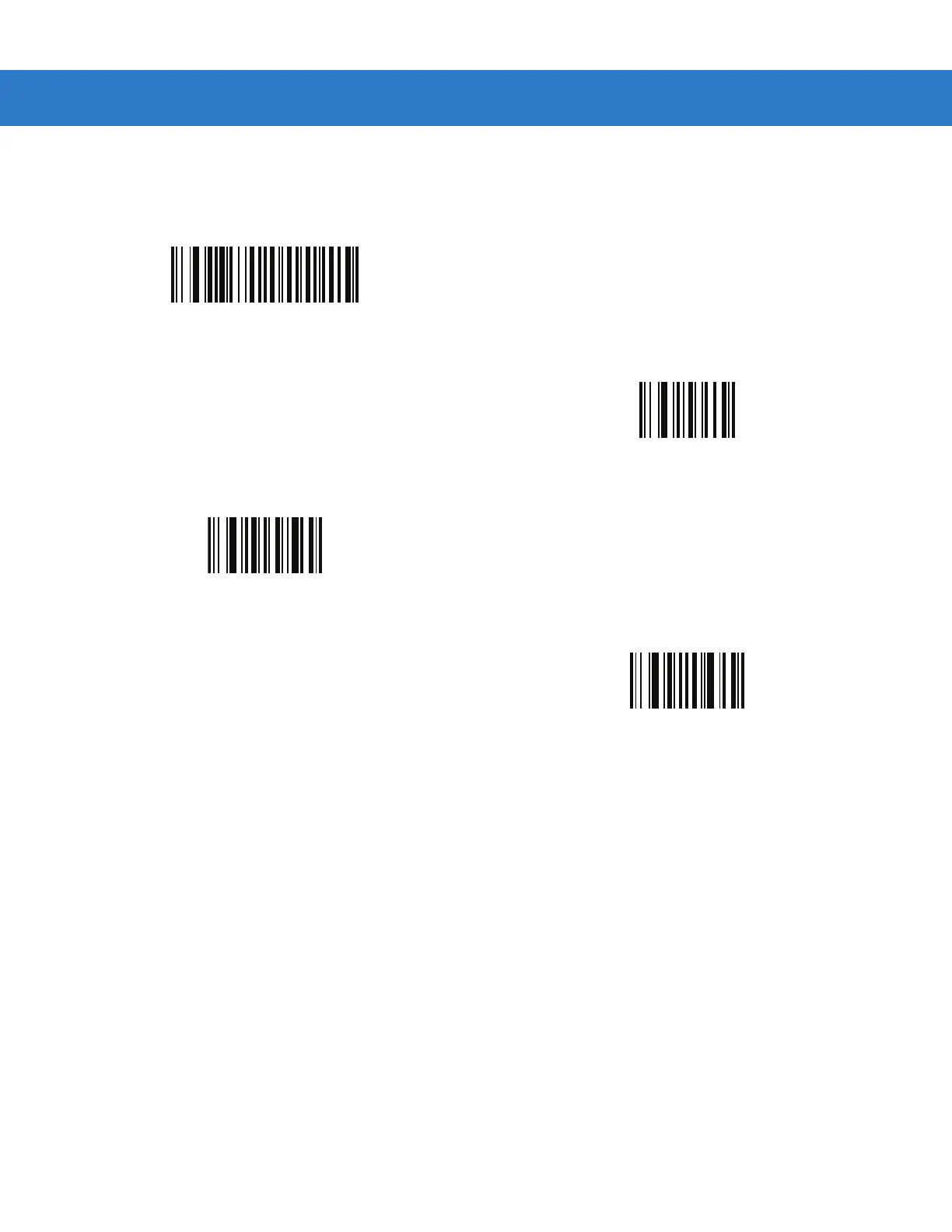

Driver’
s License Parse Field Bar Codes
Begin New Driver
’s License Parse Rule
Save Driver
’s License Parse Rule
Quit Entering Driver’s License Rule
Erase Driver
’
s License Parse
Rules
313
315
Table of Contents
Default Chapter
6
Revision History
6
Table of Contents
7
About this Guide
17
Introduction
17
Configurations
17
Chapter Descriptions
18
Notational Conventions
19
AIM Code Identifiers
19
Related Documents
20
Service Information
20
Chapter 1 Getting Started
21
Introduction
21
Interfaces
22
Unpacking
22
Setting up the Digital Scanner
23
Installing the Interface Cable
23
Connecting Power (if Required)
24
Configuring the Digital Scanner
24
Mounting the Digital Scanner
24
Accessories
25
Required Accessories
25
Optional Accessories
25
Electronic Article Surveillance (EAS) (Optional)
25
Chapter 2 Data Capture
27
Introduction
27
Beeper Definitions
28
LED Definitions
30
Scanning
31
Hands-Free Scanning
31
Hand-Held Scanning
31
Aiming
32
Decode Ranges
34
Chapter 3 Maintenance & Technical Specifications
35
Introduction
35
Maintenance
35
Troubleshooting
36
Technical Specifications
39
Digital Scanner Signal Descriptions
41
Chapter 4 User Preferences & Miscellaneous Digital Scanner Options
43
Introduction
43
Scanning Sequence Examples
44
Errors While Scanning
44
User Preferences/Miscellaneous Options Parameter Defaults
44
User Preferences
47
Set Default Parameter
47
Parameter Bar Code Scanning
48
Beep after Good Decode
48
Beeper Tone
49
Beeper Volume
50
Beeper Duration
51
Suppress Power-Up Beeps
51
Hands-Free Mode
52
Presentation Performance Mode
53
Digital Scanner Activity Modes
54
Hand-Held Trigger Mode
62
Multifunction Mode Triggering (DS9808-LR/LL Only)
63
Host Triggering (DS9808-LR/LL Only)
68
Picklist Mode
70
Continuous Bar Code Read
71
Unique Bar Code Reporting
71
Decode Session Timeout
72
Timeout between Decodes, same Symbol
72
Timeout between Decodes, Different Symbols
72
Fuzzy 1D Processing
73
Mobile Phone/Display Mode
74
PDF Prioritization
75
PDF Prioritization Timeout
75
Hand-Held Decode Aiming Pattern
76
Hands-Free Decode Aiming Pattern
77
Presentation Mode Field of View
78
Decoding Illumination (Hand-Held Mode Only)
79
Multicode Mode
80
Multicode Expression
81
Multicode Mode Concatenation
86
Multicode Concatenation Symbology
87
Multicode Troubleshooting
88
Miscellaneous Scanner Parameters
90
Transmit Code ID Character
90
Prefix/Suffix Values
91
Scan Data Transmission Format
92
FN1 Substitution Values
93
Scan Data Transmission Format (Continued)
93
Transmit "No Read" Message
94
Chapter 5 Imaging Preferences
95
Introduction
95
Scanning Sequence Examples
96
Errors While Scanning
96
Imaging Preferences Parameter Defaults
96
Imaging Preferences
98
Operational Modes
98
Image Capture Illumination
99
Gain/Exposure Priority for Snapshot Mode
100
Snapshot Mode Timeout
101
Snapshot Aiming Pattern
101
Image Cropping
102
Crop to Pixel Addresses
103
Image Size (Number of Pixels)
104
Image Brightness (Target White)
105
JPEG Image Options
105
JPEG Target File Size
106
JPEG Quality and Size Value
106
Image Enhancement
107
Image File Format Selector
108
Image Rotation
109
Bits Per Pixel
110
Signature Capture
111
Signature Capture File Format Selector
112
Signature Capture Bits Per Pixel
113
Signature Capture Width
114
Signature Capture Height
114
Signature Capture JPEG Quality
114
Video View Finder
115
Video View Finder Image Size
115
Chapter 6 USB Interface
117
Introduction
117
Connecting a USB Interface
118
USB Parameter Defaults
119
USB Host Parameters
120
USB Device Type
120
Symbol Native API (SNAPI) Status Handshaking
121
USB Country Keyboard Types - Country Codes
122
USB Keystroke Delay
124
Simulated Caps Lock
125
USB CAPS Lock Override
125
USB Ignore Unknown Characters
126
USB Convert Unknown to Code 39
126
USB Ignore Beep Directive
127
USB Ignore Type Directive
127
Emulate Keypad
128
Emulate Keypad with Leading Zero
128
USB Keyboard FN 1 Substitution
129
Function Key Mapping
129
Convert Case
130
USB Static CDC
130
ASCII Character Set for USB
131
Chapter 7 RS-232 Interface
143
Introduction
143
Connecting an RS-232 Interface
144
RS-232 Parameter Defaults
145
Host Parameters
146
Host Types
148
Baud Rate
150
Parity
151
Data Bits
151
Check Receive Errors
152
Hardware Handshaking
152
Software Handshaking
154
Host Serial Response Time-Out
156
RTS Line State
157
Beep on <BEL
157
Intercharacter Delay
158
Nixdorf Beep/Led Options
159
Ignore Unknown Characters
159
ASCII Character Set for RS-232
160
Chapter 8 IBM 468X / 469X Interface
165
Introduction
165
Connecting to an IBM 468X/469X Host
166
IBM Parameter Defaults
167
IBM 468X/469X Host Parameters
168
Port Address
168
Convert Unknown to Code 39
169
Ignore Beep Directive
169
Ignore Configuration Directive
170
Chapter 9 Keyboard Wedge Interface
171
Introduction
171
Connecting a Keyboard Wedge Interface
172
Keyboard Wedge Parameter Defaults
173
Keyboard Wedge Host Parameters
174
Keyboard Wedge Host Types
174
Keyboard Wedge Country Types - Country Codes
175
Ignore Unknown Characters
177
Keystroke Delay
177
Intra-Keystroke Delay
178
Alternate Numeric Keypad Emulation
178
Simulated Caps Lock
179
Caps Lock Override
179
Convert Wedge Data
180
Function Key Mapping
180
FN1 Substitution
181
Send Make and Break
181
Keyboard Maps
182
ASCII Character Set for Keyboard Wedge
183
Chapter 10 OCR Programming
193
Introduction
193
OCR Parameter Defaults
194
OCR Programming Parameters
195
Enable/Disable OCR-A
195
OCR-A Variant
195
Enable/Disable OCR-B
197
OCR-B Variant
198
Enable/Disable MICR E13B
201
Enable/Disable US Currency Serial Number
202
OCR Orientation
202
OCR Lines
204
OCR Minimum Characters
204
OCR Maximum Characters
205
OCR Security Level
205
OCR Subset
206
OCR Quiet Zone
206
OCR Bright Illumination
207
OCR Template
208
OCR Check Digit Modulus
217
OCR Check Digit Multiplier
218
OCR Check Digit Validation
219
Chapter 11 Symbologies
225
Introduction
225
Scanning Sequence Examples
225
Errors While Scanning
226
Symbology Parameter Defaults
226
Disable All Code Types
231
Upc/Ean
232
Enable/Disable UPC-A
232
Enable/Disable UPC-E
232
Enable/Disable UPC-E1
233
Enable/Disable EAN-8/JAN-8
233
Enable/Disable EAN-13/JAN-13
234
Enable/Disable Bookland EAN
234
Decode UPC/EAN/JAN Supplementals
235
User-Programmable Supplementals
238
UPC/EAN/JAN Supplemental Redundancy
238
UPC/EAN/JAN Supplemental AIM ID Format
239
Transmit UPC-A Check Digit
240
Transmit UPC-E Check Digit
240
Transmit UPC-E1 Check Digit
241
UPC-A Preamble
241
UPC-E Preamble
242
UPC-E1 Preamble
243
Convert UPC-E to UPC-A
244
Convert UPC-E1 to UPC-A
244
EAN-8/JAN-8 Extend
245
Bookland ISBN Format
246
UCC Coupon Extended Code
247
Coupon Report
248
Issn Ean
249
Code 128
250
Enable/Disable Code 128
250
Set Lengths for Code 128
250
Enable/Disable GS1-128 (Formerly UCC/EAN-128)
251
Enable/Disable ISBT 128
252
ISBT Concatenation
253
Check ISBT Table
254
ISBT Concatenation Redundancy
254
Code 39
255
Enable/Disable Code 39
255
Enable/Disable Trioptic Code 39
255
Convert Code 39 to Code 32
256
Code 32 Prefix
256
Set Lengths for Code 39
257
Code 39 Check Digit Verification
258
Transmit Code 39 Check Digit
258
Code 39 Full ASCII Conversion
259
Code 39 Buffering - Scan & Store
259
Code 93
262
Enable/Disable Code 93
262
Set Lengths for Code 93
262
Code 11
264
Set Lengths for Code 11
264
Code 11 Check Digit Verification
266
Transmit Code 11 Check Digits
267
Interleaved 2 of 5 (ITF)
267
Enable/Disable Interleaved 2 of 5
267
Set Lengths for Interleaved 2 of 5
268
I 2 of 5 Check Digit Verification
270
Transmit I 2 of 5 Check Digit
270
Convert I 2 of 5 to EAN-13
271
Discrete 2 of 5 (DTF)
271
Enable/Disable Discrete 2 of 5
271
Set Lengths for Discrete 2 of 5
272
Codabar (NW - 7)
274
Enable/Disable Codabar
274
Set Lengths for Codabar
274
CLSI Editing
276
NOTIS Editing
276
Msi
277
Enable/Disable MSI
277
Set Lengths for MSI
277
MSI Check Digits
279
Transmit MSI Check Digit(S)
279
MSI Check Digit Algorithm
280
Chinese 2 of 5
280
Enable/Disable Chinese 2 of 5
280
Matrix 2 of 5
281
Enable/Disable Matrix 2 of 5
281
Set Lengths for Matrix 2 of 5
282
Matrix 2 of 5 Redundancy
283
Matrix 2 of 5 Check Digit
283
Transmit Matrix 2 of 5 Check Digit
284
Enable/Disable Korean 3 of 5
284
Korean 3 of
284
Inverse 1D
285
Postal Codes
286
US Postnet
286
US Planet
286
Transmit US Postal Check Digit
287
UK Postal
287
Transmit UK Postal Check Digit
288
Japan Postal
288
Australia Post
289
Australia Post Format
290
Netherlands KIX Code
291
USPS 4Cb/One Code/Intelligent Mail
291
UPU FICS Postal
292
GS1 Databar
293
GS1 Databar-14
293
GS1 Databar Limited
293
GS1 Databar Expanded
294
Convert GS1 Databar to UPC/EAN
294
Composite
295
Composite CC-C
295
Composite CC-A/B
295
Composite TLC-39
296
UPC Composite Mode
296
Composite Beep Mode
297
GS1-128 Emulation Mode for UCC/EAN Composite Codes
297
2D Symbologies
298
Enable/Disable PDF417
298
Enable/Disable Micropdf417
298
Code 128 Emulation
299
Data Matrix
300
Data Matrix Inverse
300
Maxicode
301
QR Code
301
QR Inverse
302
Microqr
302
Aztec
303
Aztec Inverse
303
Redundancy Level 1
304
Redundancy Level 2
304
Redundancy Level 3
304
Redundancy Level 4
305
Security Level
306
Intercharacter Gap Size
307
Report Version
307
Macro PDF Features
308
Flush Macro Buffer
308
Abort Macro PDF Entry
308
Chapter 12 Advanced Data Formatting
309
Introduction
309
Chapter 13 Driver's License Set up (DS9808-DL / DS9808-LL)
311
Introduction
311
Driver's License Parsing
312
Parsing Driver's License Data Fields (Embedded Driver's License Parsing)
313
Embedded Driver's License Parsing Criteria - Code Type
313
Driver's License Parse Field Bar Codes
314
AAMVA Parse Field Bar Codes
317
Parsing Rule Example
327
Embedded Driver's License Parsing ADF Example
331
Field Update Procedure
333
User Preferences
334
Set Default Parameter
334
Send Keystroke (Control Characters and Keyboard Characters)
334
Appendix A Standard Default Parameters
355
Appendix B Programming Reference
367
Symbol Code Identifiers
367
AIM Code Identifiers
369
Appendix C Sample Bar Codes
375
Code 39
375
Upc/Ean
375
Ean-13, 100%
376
Code 128
376
Interleaved 2 of 5
376
GS1 Databar-14
377
Pdf417
377
Data Matrix
377
Maxicode
378
QR Code
378
US Postnet
378
UK Postal
378
Appendix D: Numeric Bar Codes
379
Numeric Bar Codes
379
Cancel
380
Appendix E ASCII Character Sets
381
Appendix F Signature Capture Code
393
Introduction
393
Code Structure
393
Signature Capture Area
393
Capcode Pattern Structure
394
Start / Stop Patterns
394
Dimensions
395
Data Format
395
Additional Capabilities
396
Signature Boxes
396
Index
407
Other manuals for Motorola Symbol DS9808
Quick Start Guide
2 pages
Reference Guide
352 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Motorola Symbol DS9808 and is the answer not in the manual?
Ask a question
Motorola Symbol DS9808 Specifications
General
Brand
Motorola
Model
Symbol DS9808
Category
Barcode Reader
Language
English
Related product manuals
Motorola Symbol DS6878
2 pages
Motorola SYMBOL DS6707
2 pages
Motorola SYMBOL DS3578
2 pages
Motorola Symbol DS6708
2 pages
Motorola Symbol
24 pages
Motorola Symbol LS2208
2 pages
Motorola Symbol LS9208
546 pages
Motorola Symbol LS4278
418 pages
Motorola Symbol CS3070
24 pages
Motorola SYMBOL LS7708
380 pages
Motorola Symbol MT2090
560 pages
Motorola Symbol LS3578-ER
4 pages
Need help?
General
To Next Page
