30 August 20, 2003 6809471A67-O
Disassembly V150
Removing the Rear Housing
1. Remove the battery cover, battery, antenna, and light guide as described in
the procedures.
2. Using the flat end of the disassembly tool, carefully pry each of the 4 front
housing latches inward to release the rear housing as shown in Figure
10.
3. Use the disassembly tool to disconnect the flex cable from its socket as shown
in Figure
11.
G
This product contains static-sensitive devices. Use anti-static handling procedures
to prevent electrostatic discharge (ESD) and component damage.
G
The phone has no screws to hold it together. The housing is fastened with plastic
catches. These are delicate and should be parted using utmost care.
031732o

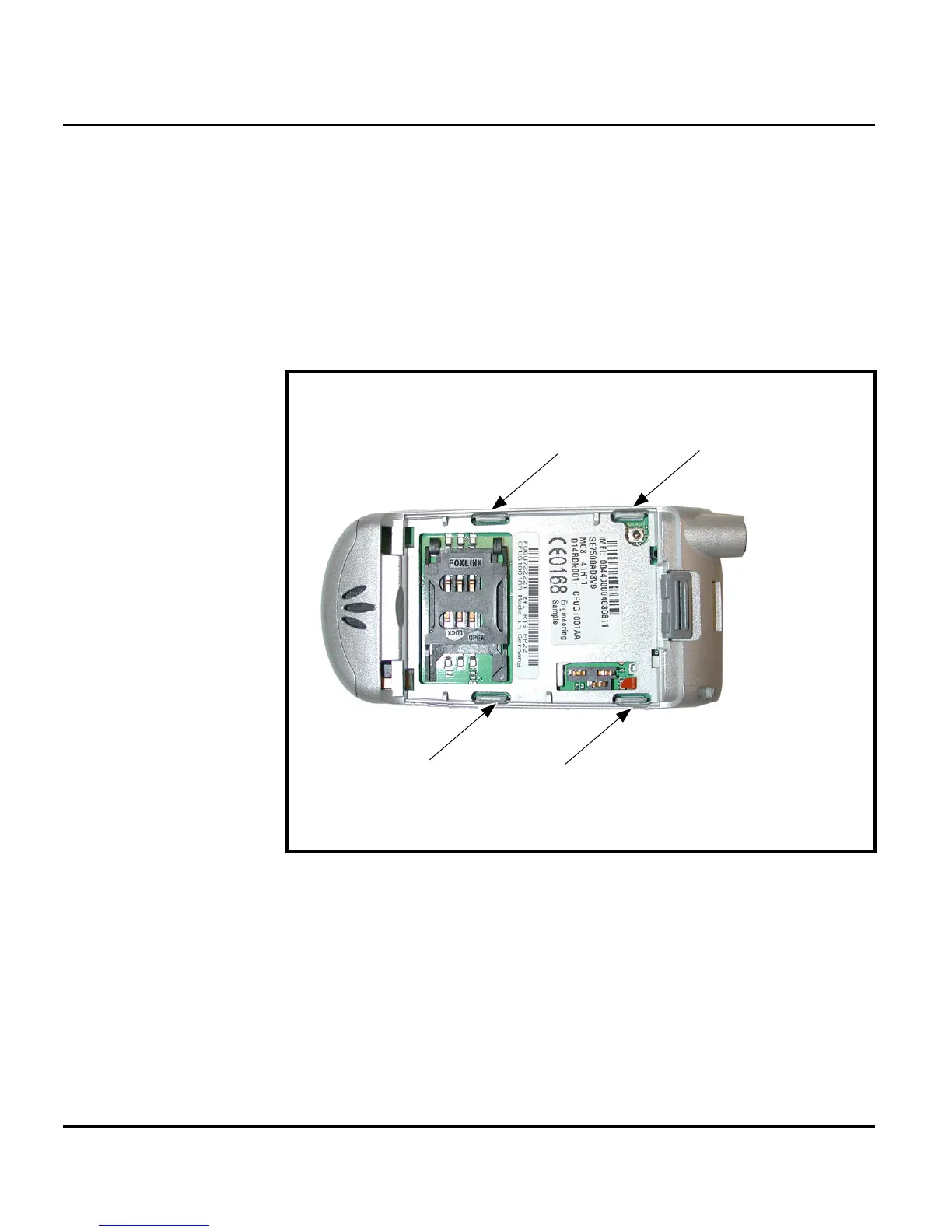

Figure 10. Unlocking the Rear Housing Latches
Rear Housing Latch
Rear Housing
Latch
Rear Housing
Latch
Rear Housing
Latch
