Level 1 and 2 Service Manual General Operation
General Operation
Controls, Indicators, and Input/Output (I/O) Connectors
The V551/V555 telephone controls are on the front of the device and on the keyboard
as shown in Figure 1. Indicator icons are displayed on the LCD (see Figure 2).
Menu Navigation
The V551/V555 telephone has a simplified icon and GUI. See Figure 3 for the V551/
V555 menu structure. A scroll key allows you to move easily through menus.
Liquid Crystal Display (LCD)
The V551/V555 phone features a 176 x 220 color display offering 3 lines of text, 1
line of icons, and 1 line of prompts. The display provides constant graphical
representations of battery capacity and signal strength, as well as the real-time
clock.

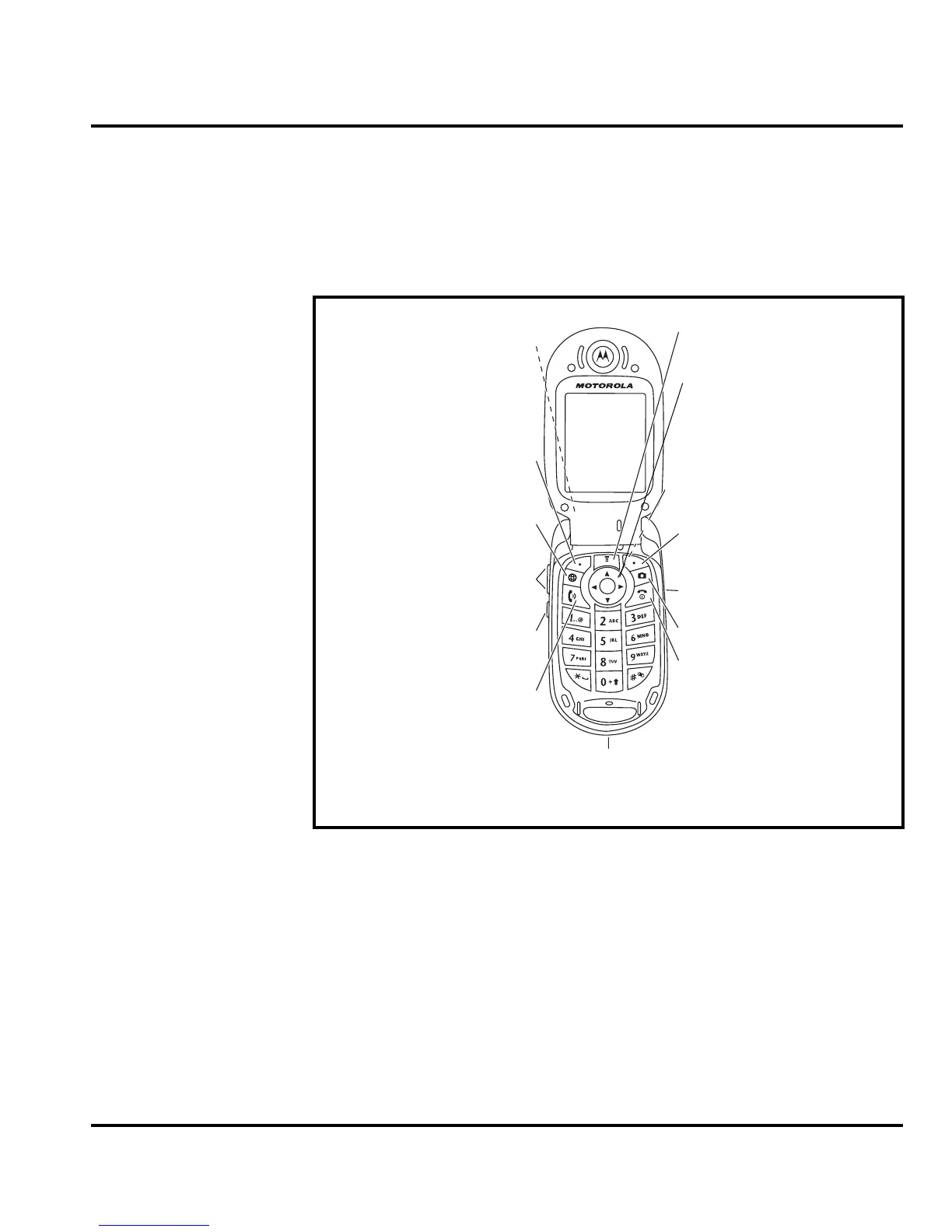

Figure 1. Controls and Indicators
040488a
Left Soft Key
Perform function
in lower left
display.
Volume Keys
Camera Key
Voice Key
Headphone
Connector
Smart Key
Power & End
Key
Turn phone
on/off, end calls,
exit menu
system.
Menu Key
Send Key
Make & answer
calls.
Browser Key
Right Soft Key
Perform function
in lower right
display.
5-Way
Navigation Key
Scroll to items.
Accessory
Connector
