Motostar ECLISTAR - Control Panel Legend and Fuse Table

Pag.
19
19 -
Manual code:
119R7179GB
119 R7179 G B ver.
3.0
3.0 07/2009
- The data and information in this manual are subject to change at any time.
1 - Transformer
2 - Card fuse
3 - Trimmer for adjusting automatic
closing time
4 - Terminals for connecting the
transformer
5 - Trimmer for adjusting the
sensitivity of the obstacles
6 - Trimmer for adjusting the closing
time of the 2nd motor
7 - Buttons for memorising the radio
code
8 - Function control LED
9 - “Dip-switch” function selector
10 - Accessories fuse
11 - Line fuse
12 - Radio Card
13 - Terminals for connecting up 230V
(A.C.) power
14 - Terminals for connecting up
gearmotors
15 - Motor fuse
16 - Terminals for powering up
accessories
17 - Terminals for connecting up
warning signal accessories
18 - Terminals for connecting up the
stop button
19 - Terminals for connecting up the
opening photocells
20 - Terminals for connecting up the
command buttons
21 - Terminals with N.O. (B1-B2)
output
22 - Terminals for antenna fi tted with
RG58 cable
23 - Terminals for connecting up the
partial stop photocells

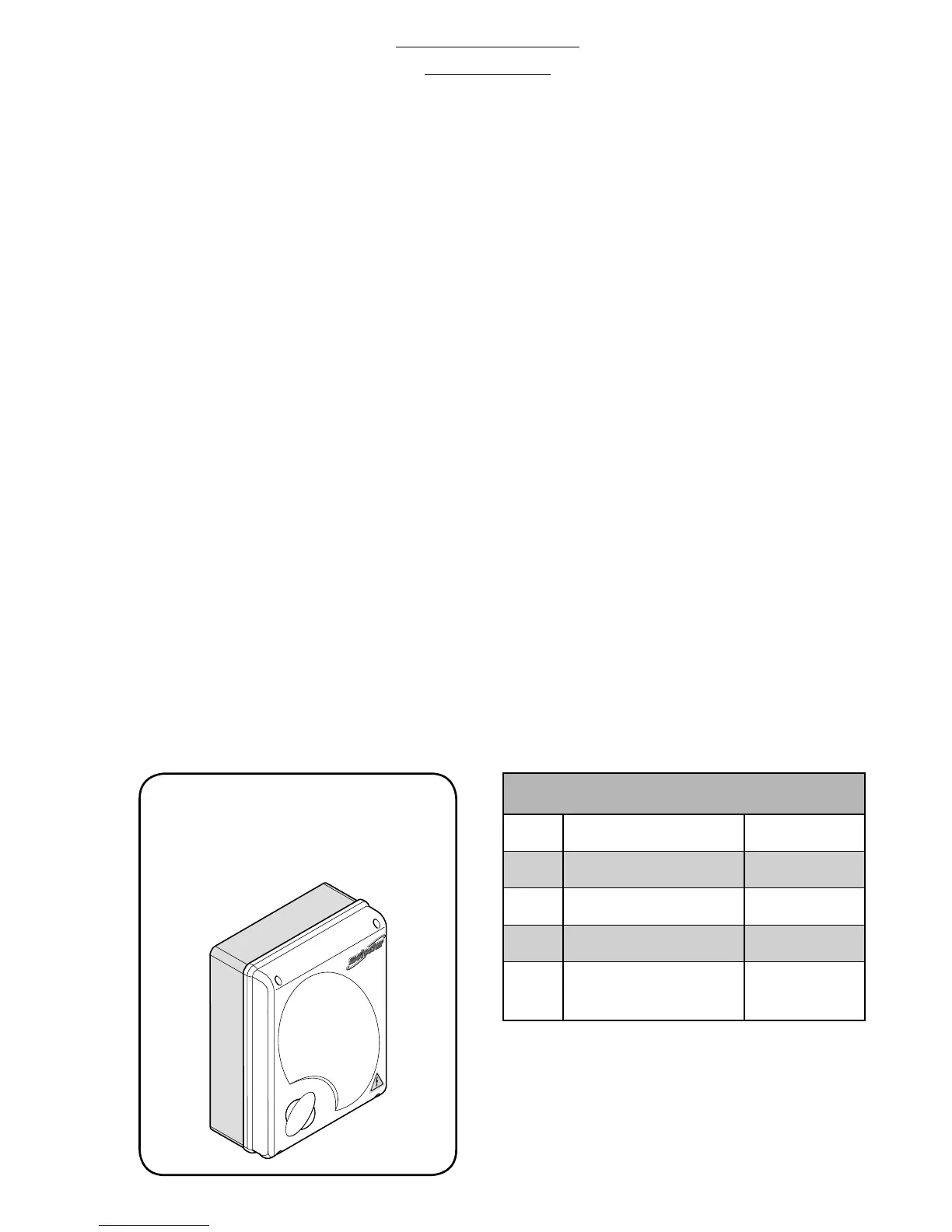

LEGEND
Protection rating against
dust and liquids:
IP54
FUSE TABLE
pos.
pos.
to protect:
to protect:
Fuses:
Fuses:
15 Motors 5A-F
11 Control board (line) 1.6A-F
10 Accessories 1A-F
2
Command devices
(card)
315mA-F
