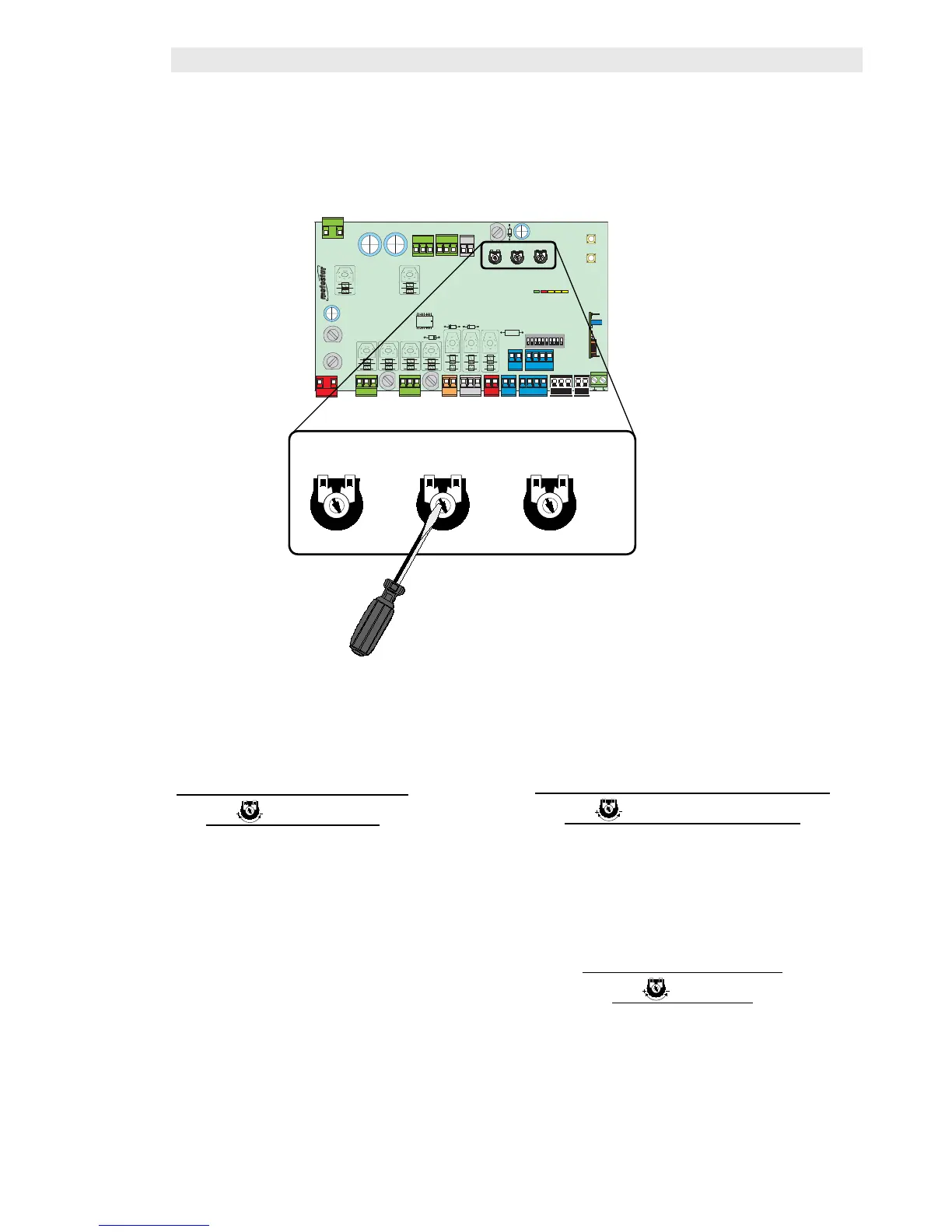

3.5 ADJUSTING FUNCTIONS
To adjust the trimmers, use a small screw driver by turning it clockwise (+) to increase or
counter-clockwise (-) to reduce.
DELAY 2M
This adjusts the delay time for the closing
of the A motor (see page 23) from 0 to 15
seconds. We suggest adjusting it so that
the closing arrival distance from motor B, is
about 50 cm.
If you use a button for the pedestrian
opening mode (see page 24), consider that
this distance is also the opening width for
pedestrian passage.
AUTOM. CLOSING
It adjusts the automatic closing action time
(see page 27) from 0 to 90 seconds.
SENS.
This adjusts the sensitivity of the amperometric
sensor, see page 22.
Increase the sensitivity to detect different
kinds of obstacles, or ones of different
sizes.
