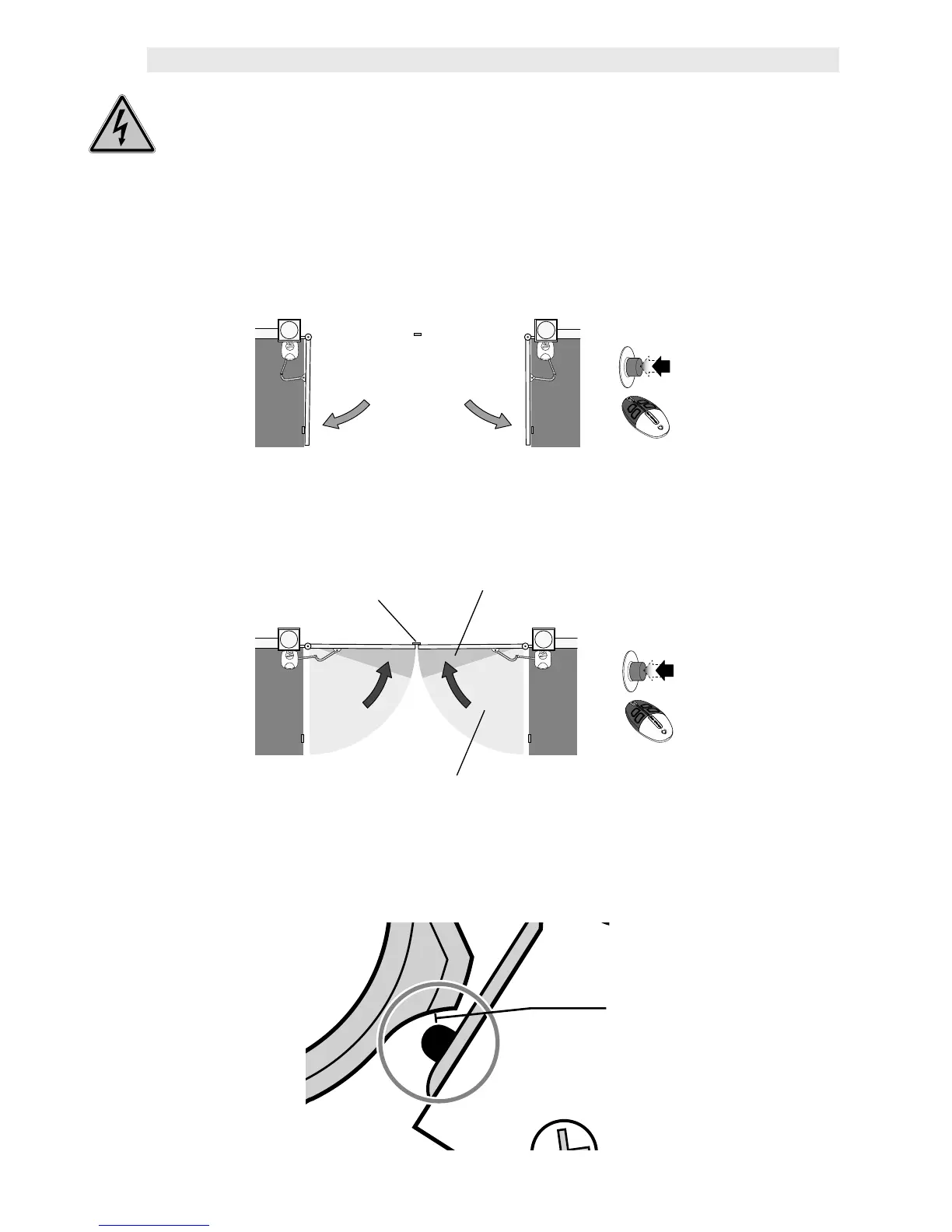

3.6 CHECKING SETTINGS OF ENDSTOP ASSEMBLY
Make sure you have secured the area in which you are working (i.e. loose cable ends
or live wires, equipment that may interfere with the movement of the structures,
unauthorised personnel or children), and then power up the system.
At this point, command a gate closing action,
Normal speed movement
Slow-down
Closing endstops
Check endstop setting, which was made when gearmotor was installed (page 12 to 17),
making sure whether the gate leaves reach the desired maximum opening point. If necessary,
repeat the setting by adjusting the position of stops or cams.
If the gate, instead of stopping closed, inverts its movement and reopens, repeat the setting
leaving a bit more space between the cams and the switch.
