2. Remove up to four screws, two for each
bracket. DO NOT remove more than
four, as these screws are also a part of
how the internal pipings are mounted.

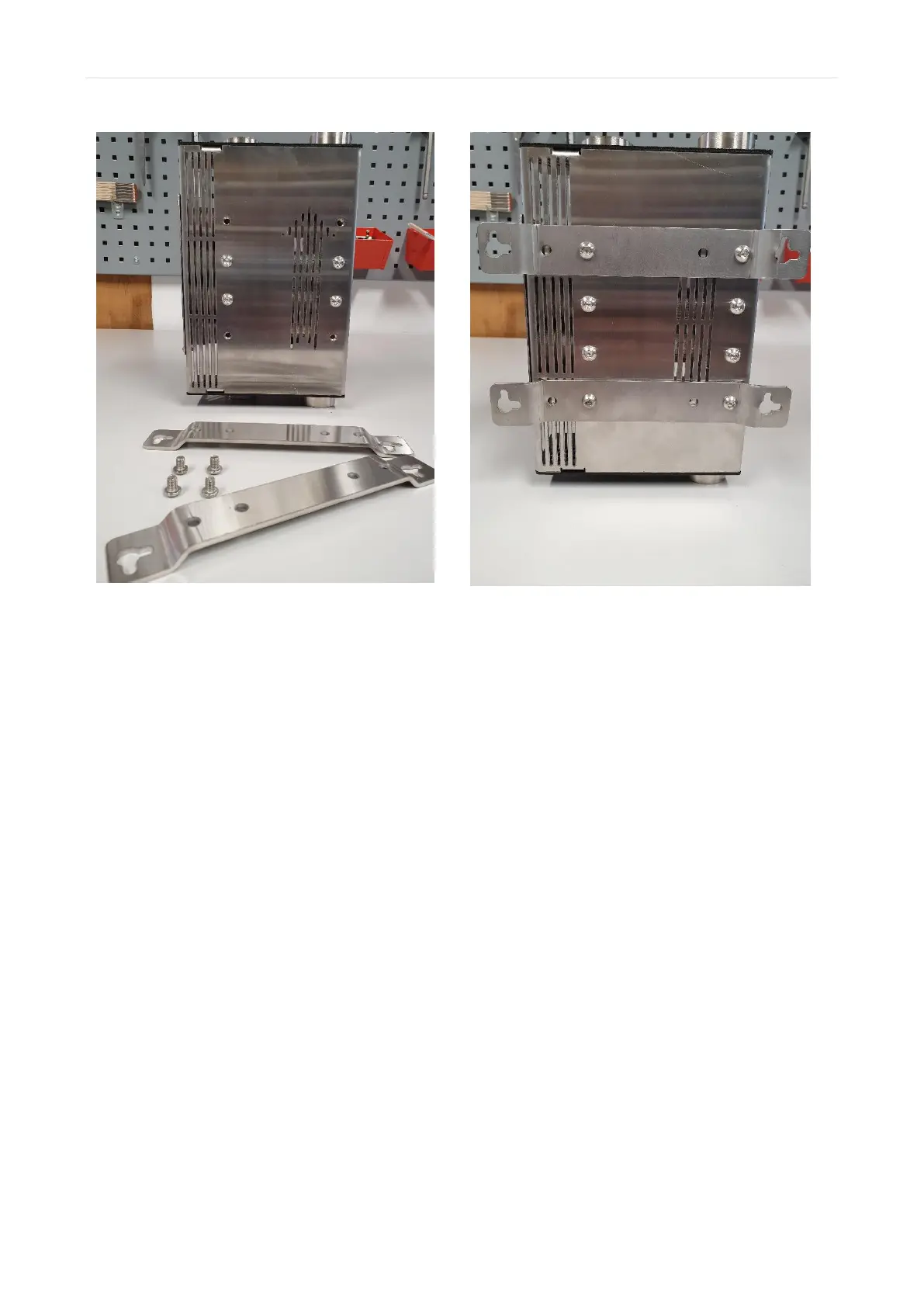

3. Mount the brackets by using the same
screws which were just removed.
Beware that the bracket should be
mounted so the holes at the ends point
“upwards” as on the picture. If the holes
are pointing “downwards”, then the
manifold can still be mounted, if you turn
it upside down.
When mounting the Flosense system, a minimum of two brackets are required, and it is
highly recommended to place them in the outermost positions as shown in step 3 above,
especially for the larger models.
