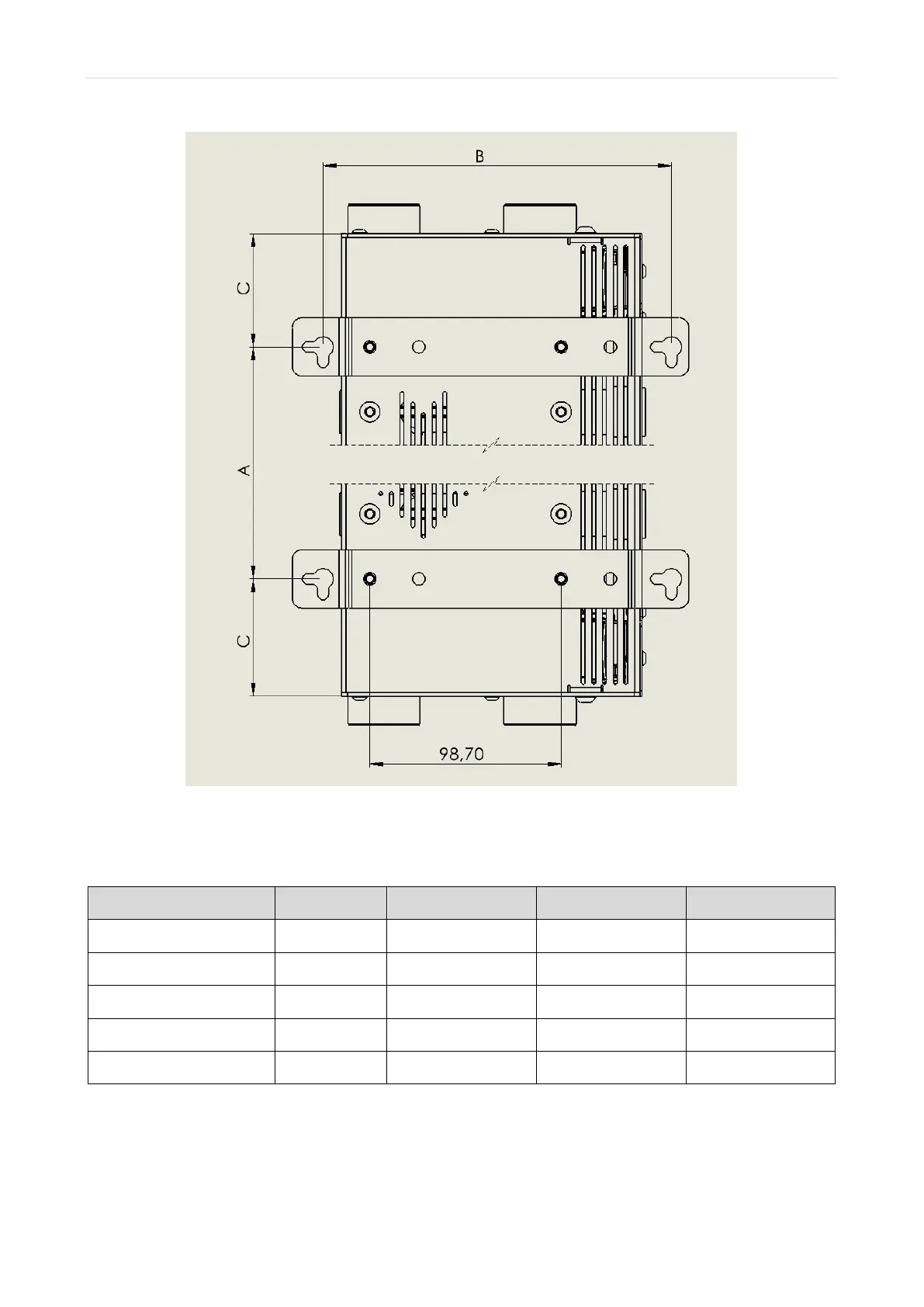

The position of the holes for the bracket can be seen in the figure above, and the dimensions
for each model can be seen in the table below.
Model
Channels
A [mm]
B [mm]
C [mm]
Flosense 4-Zone
4
100.50
180
59.5
Flosense 6-Zone
6
167.50
180
59.5
Flosense 8-Zone
8
234.50
180
59.5
Flosense 10-Zone
10
301.50
180
59.5
Flosense 12-Zone
12
368.5
180
59.5
