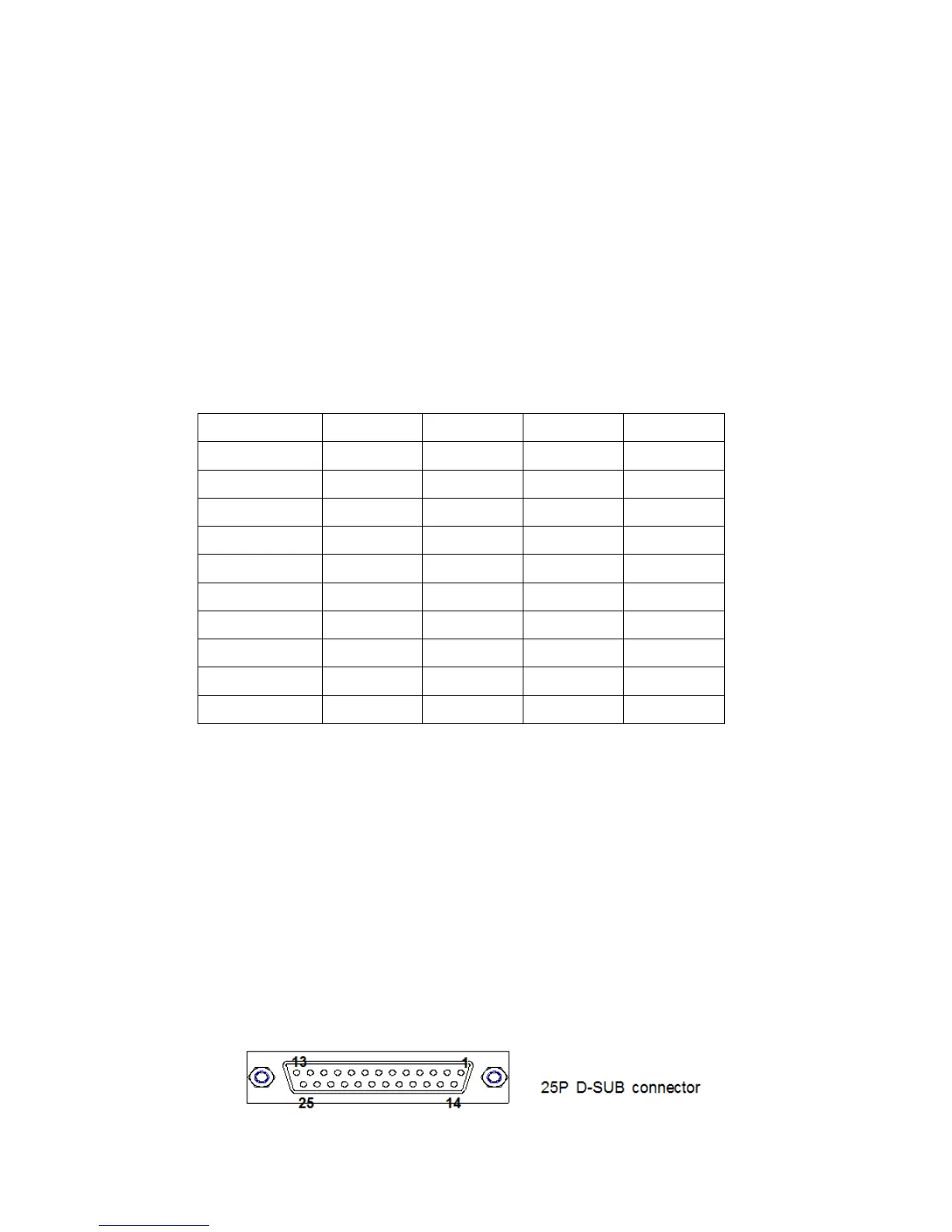

5.10 Preset number selecting by 25P I/O port
The 25P I/O port is useful interface with the PLC. The PLC can select one of the 8
preset numbers through 3 pins. It can not be used together with the direct sensor port
For 25P I/O port, choose "1" on the parameter P64.
By binary coding with 3 pins (pin no.1,2 and 3) among 25 pins, it make 1 to 8 decimal
preset number. The torque selecting code should be before the Start signal.
1) Binary coding with 3 pins
Preset no.
pin ③
pin ②
pin ①
pin ⑧
1
0
0
0
2
0
0
1
3
0
1
0
4
0
1
1
5
1
0
0
6
1
0
1
7
1
1
0
8
1
1
1
Multi A
0
1
Multi B
1
1
5.11 25 PIN I/O configuration
The configuration of 25P I/O port is different by the setting on P64.
[ P20 Setting ]
"0" : Torque selector by Sensor
"1" : Remote control I/O for PLC
"2" : Torque selector by Sensor (Input) + Remote control I/O for PLC (Output)
