5.9 Wiring example of check out signal output
The pin no.4 (status check out signal) of each sensor port 1 to 8 is useful to check
which preset number is selected by the LED, if LED is wired. The LED will require
the external or internal DC power source for lighting.

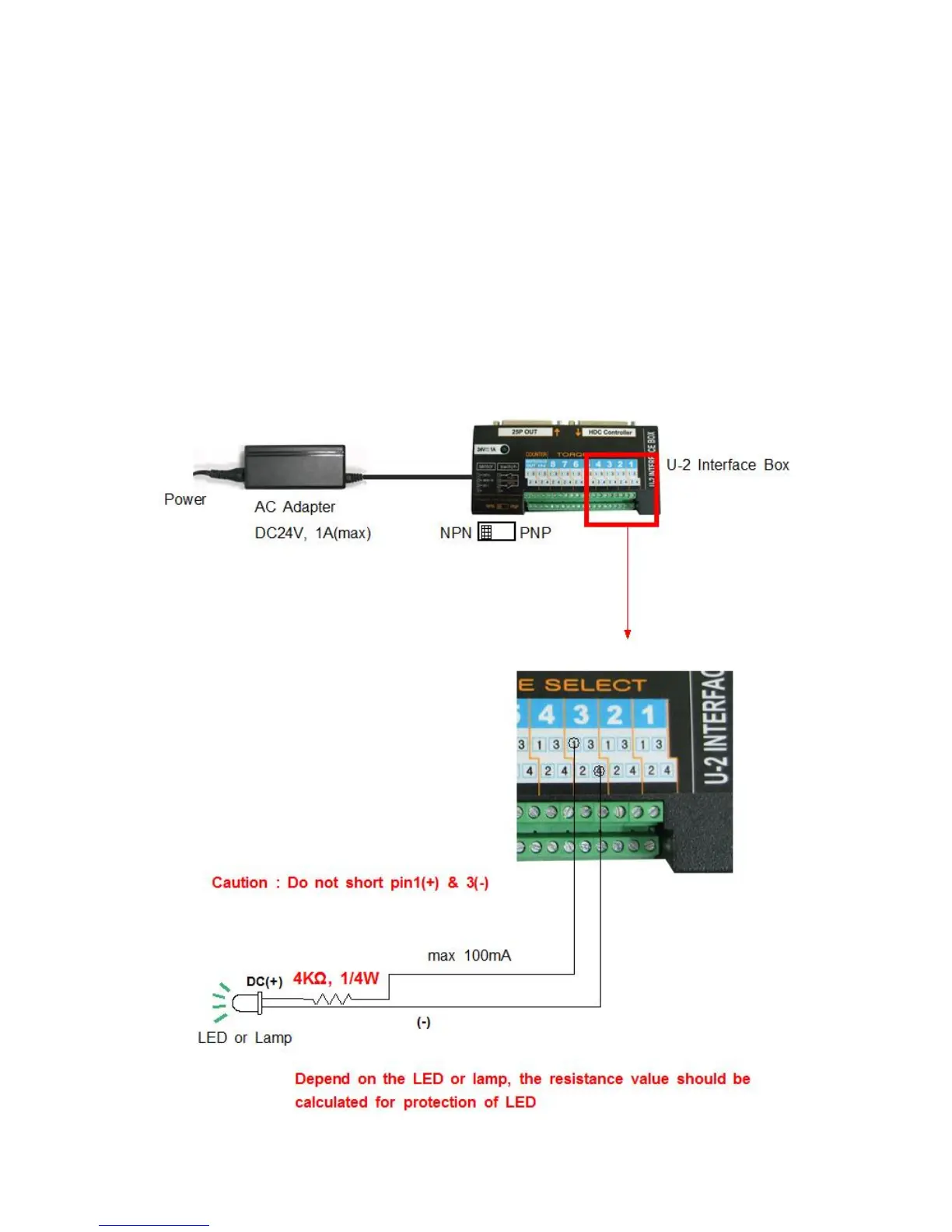

The wirings for both power sources are as below
[ P64 Setting ] Select " 0 "
