Page 23

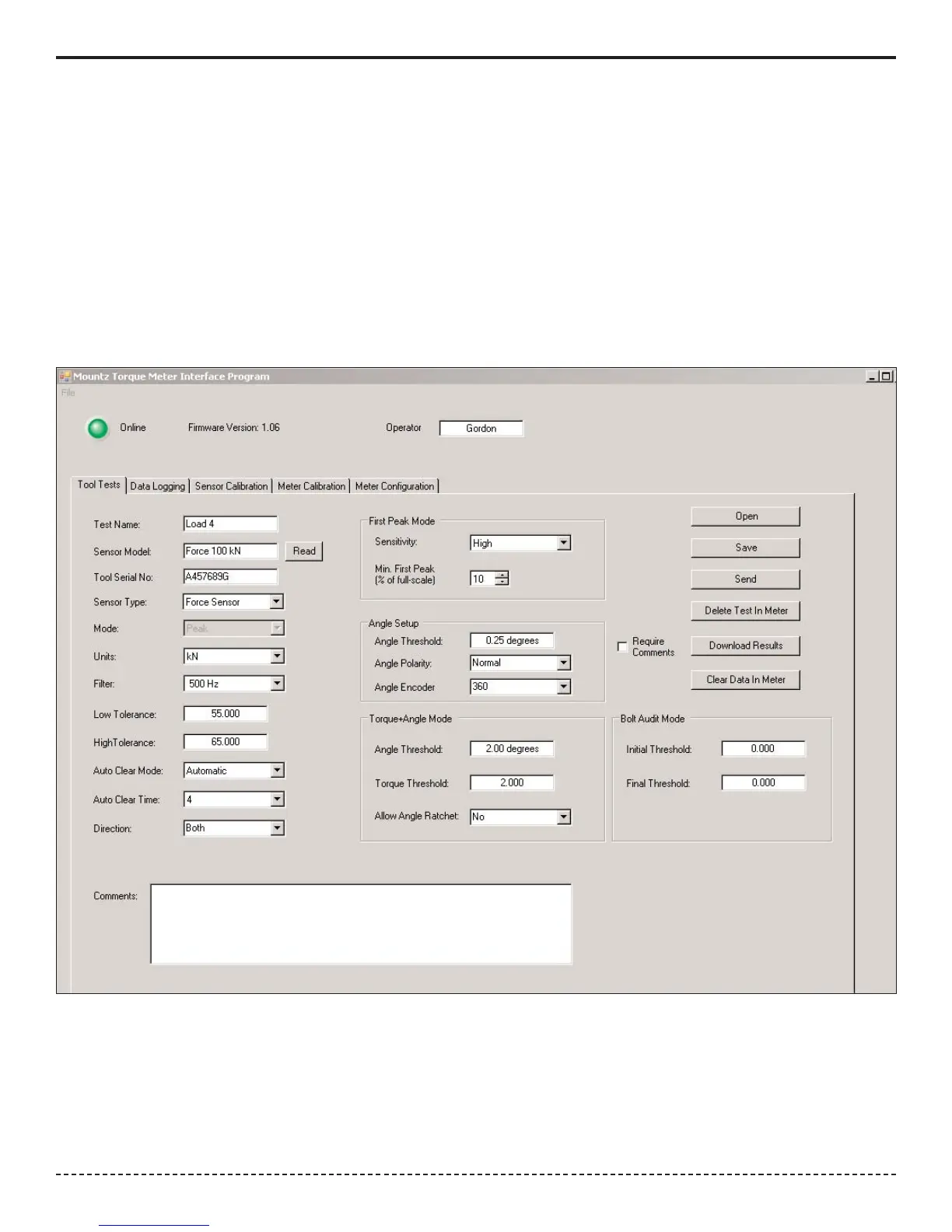

The Tool Test also supports Load Cells in Peak mode. See the screen shot below as an example of a Tool Test using a
Load Cell.
Connectors for connecting the PTT to Load Cells are available from Mountz. These are pre-wired except for the Load
Cell connections. They are:
Connector Mountz Part Number
For 2mV/V Load Cells 072008
For 4 mV/V Load Cells 072009
