Operation Section
16
3. CONSTRUCTION

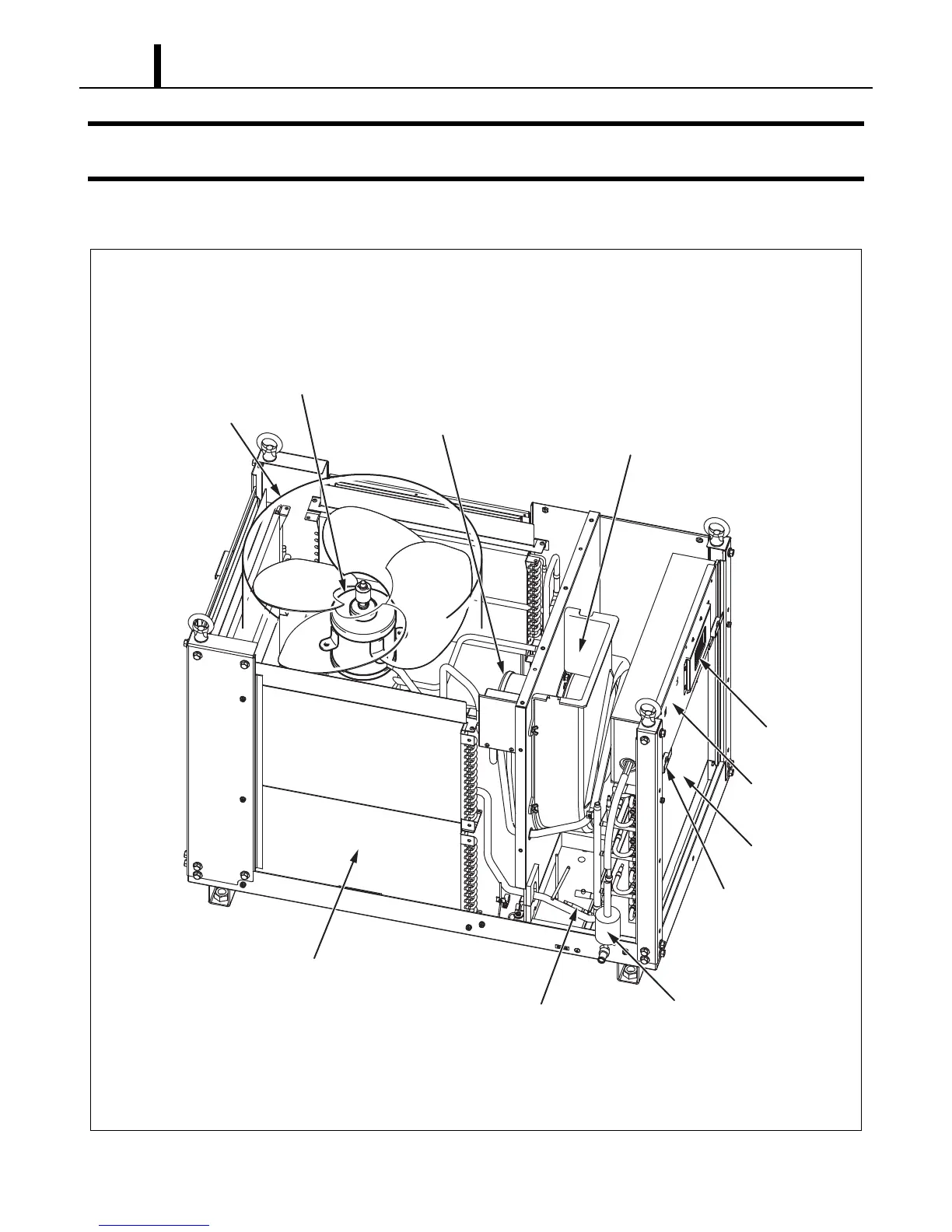

3.1 Internal Structure
I003089
Evaporator
Room Thermistor
(RTS)
Freeze Protection
Thermistor (CTS)
Power Cord
Controller
Condenser
Condenser Fan
and Motor
Evaporator Fan Motor
Evaporator Air Outlet
Condenser Air Outlet
Control Box
