Repair Section
72
9. REASSEMBLY
9.1 Removal of Unit
• Reassemble the unit in the reverse order of removal. Described below are the parts that require
special care in reassembling the unit. Perform all wiring or rewiring as referenced in the wiring
diagram.

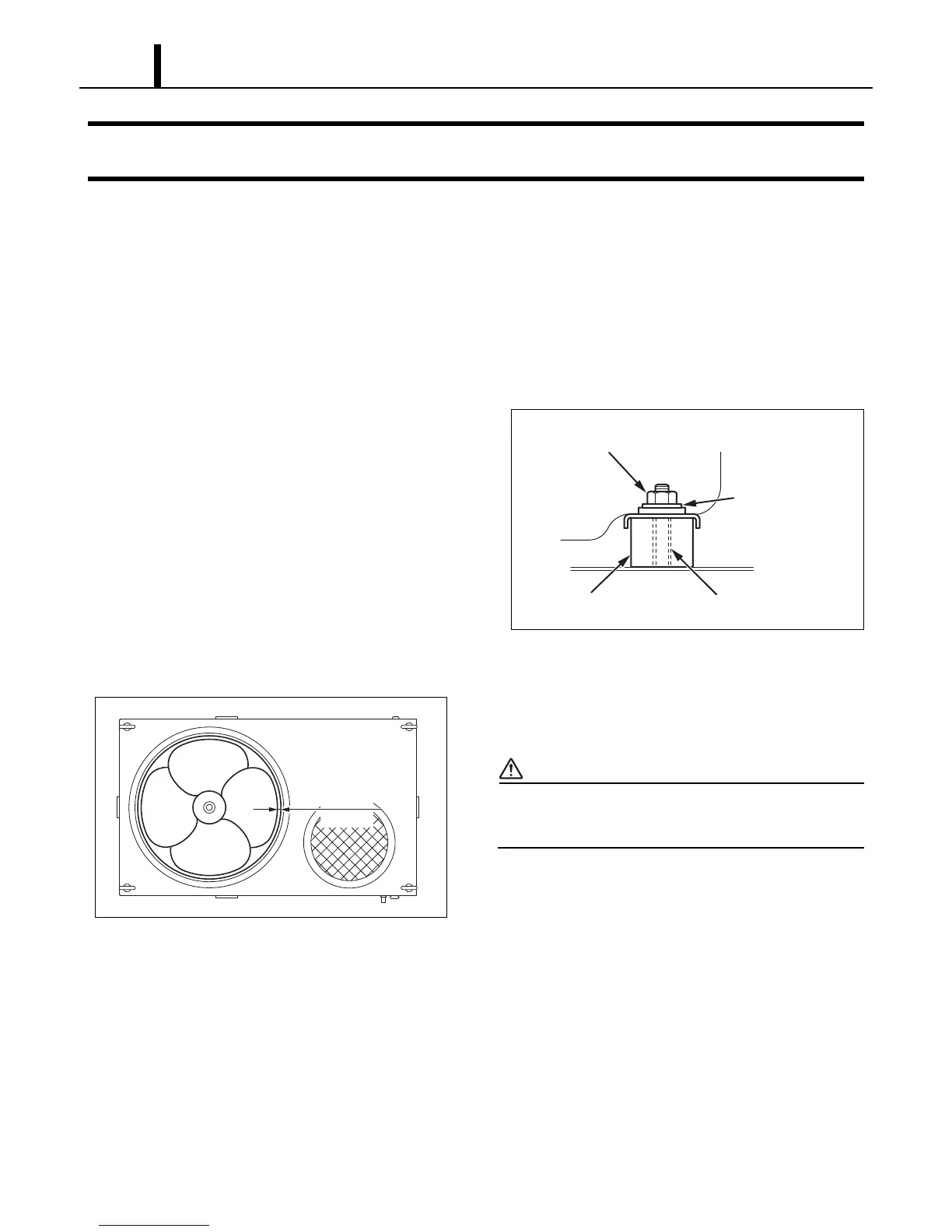

9.2 Compressor Mounting
• Mount the compressor on the frame, using
cushions, steel collars, plate washers and nuts.
9.3 Condenser Fan Assembly
• Install condenser fan. Allow a clearance of 0.2 in
(5 mm) or more on side of the condenser fan.
CAUTION
• Tightening torque:
- 32.5 ± 3.6 ft•lbf (44.1 ± 4.9 N•m)
I003042
Nut
Steel Collar
Cushion
Plate Washer
I002641
0.2 in
(5 mm)
or more
To Next Page
