4. REFRIGERANT SYSTEM

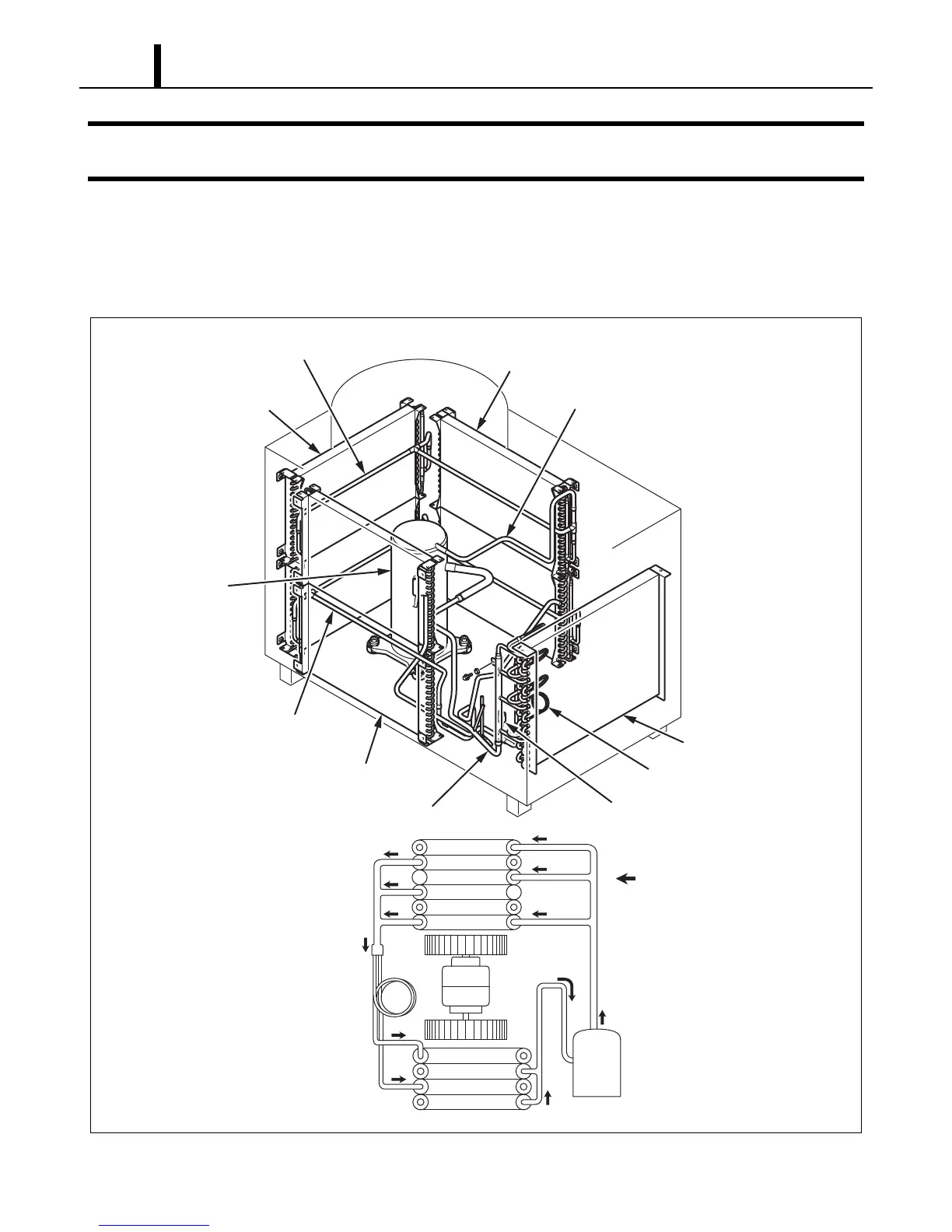

4.1 Refrigerant System Construction
The component parts of the refrigerant system include the following:
• Compressor, Evaporator, Condenser, Capillary tube
The parts above are all connected by copper pipes with brazed connections.
I003090
Condenser
Condenser
Fan
Evaporator
Fan
Evaporator
Compressor
Capillary
Tubes
Flow of Refrigerant
High Pressure Switch
Capillary Tube
Compressor
Condenser
Condenser
Condenser
Condenser Inlet Pipe
Condenser Outlet Pipe
Compressor Suction Pipe
Compressor Discharge Pipe
Evaporator
