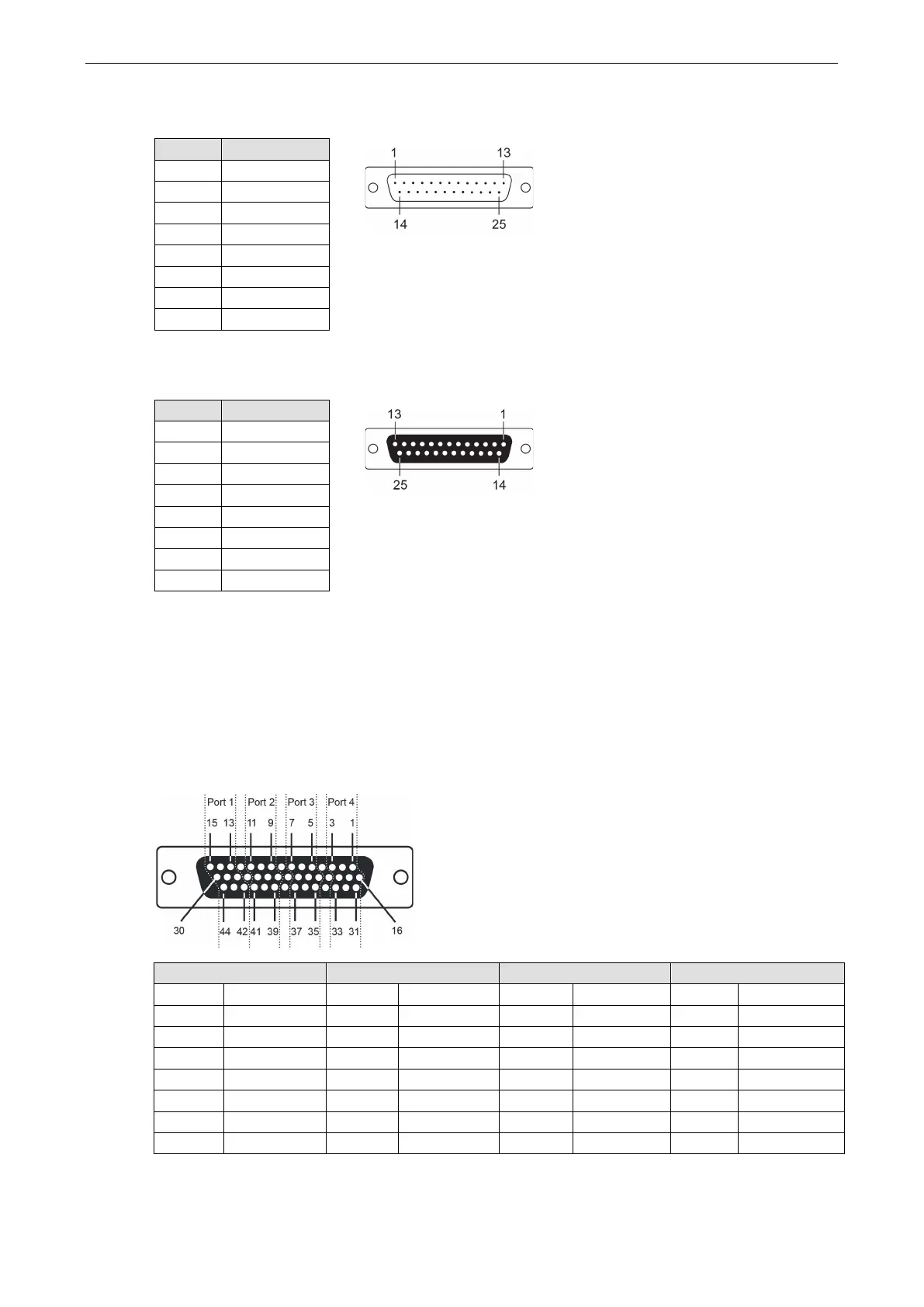

PCI Express Boards Pin Assignments
7-6
Male DB25 (OPT8B+/ CBL-M68M25x8-100)
Pin RS-232
2 TxD
3 RxD
4 RTS
5 CTS
6 DSR
7
GND
8 DCD
20 DTR
Female DB25 (OPT8A+/S+)
Pin RS-232
2 RxD
3 TxD
4
CTS
5 RTS
6 DTR
7 GND
8 DCD
20 DSR
CP-104EL-A
Board Side Pin Assignments-Female DB44
RS-232
Port 1 Port 2 Port 3 Port 4
13 TxD 9 TxD 5 TxD 1 TxD
14 RxD 10 RxD 6 RxD 2 RxD
15 RTS 11 RTS 7 RTS 3 RTS
28 CTS 24 CTS 20 CTS 16 CTS
29
DTR
25
DTR
21
DTR
17
DTR
30 DSR 26 DSR 22 DSR 18 DSR
42 DCD 39 DCD 35 DCD 31 DCD
44
GND
41
GND
37
GND
33
GND
