Moxa Technologies CP-116E-A - Board Side Pin Assignments-Female DB25; Device Side Pin Assignments

PCI Express Boards Pin Assignments
7-8
CP-102EL

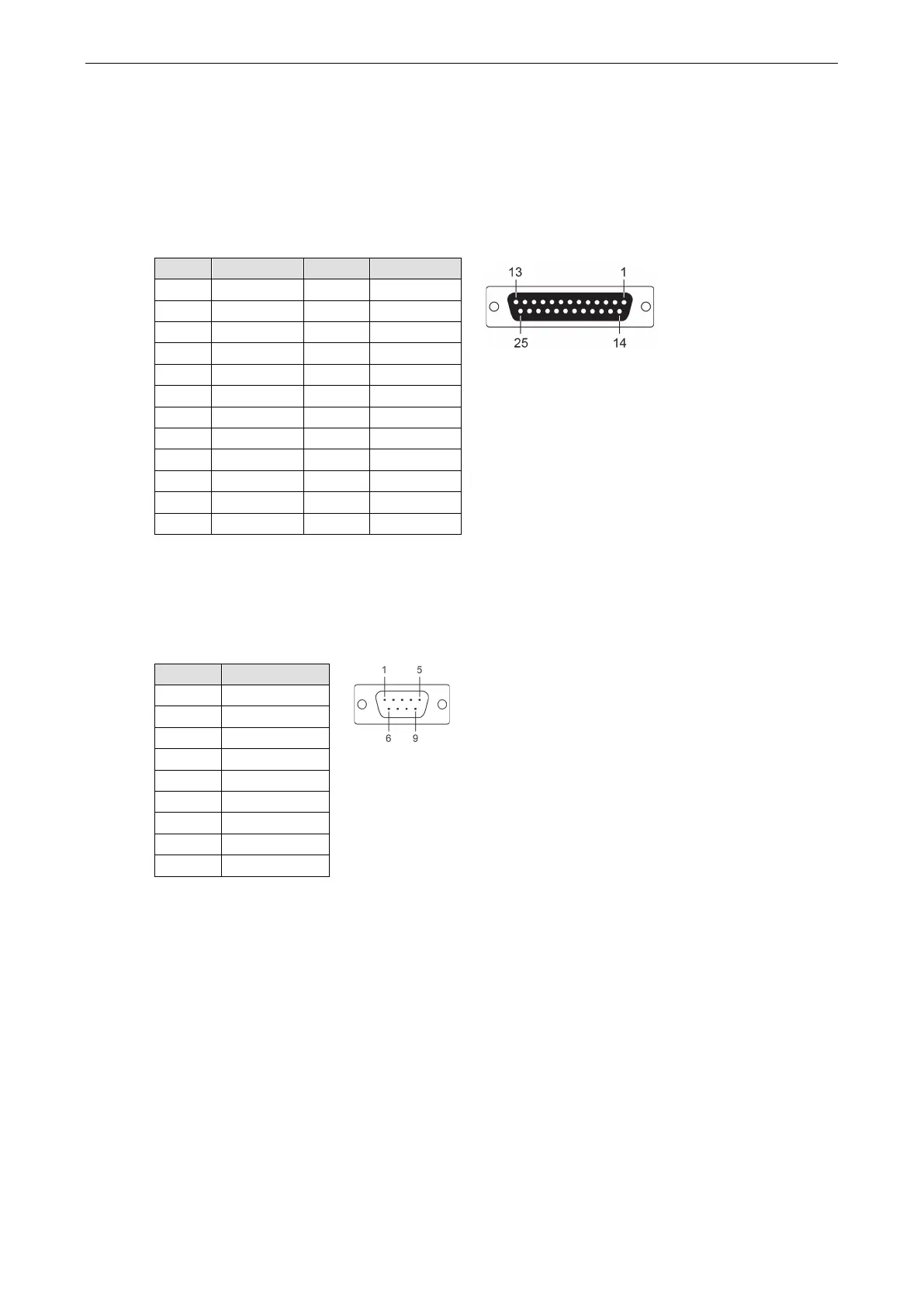

Board Side Pin Assignments—Female DB25
RS-232
Pin RS-232 Pin RS-232
1 – 13 –
2
DCD1
14
–
3 GND 15 DTR1
4 CTS1 16 DSR1
5
RxD1
17
RTS1
6 – 18 TxD1
7 – 19 –
8 – 20 –
9 DTR0 21 DCD0
10 DSR0 22 GND
11 RTS0 23 CTS0
12 TxD0 24 RxD0
Device Side Pin Assignments
Male DB9 (CBL-M25M9x2-50)
Pin
RS-232
1 DCD
2 RxD
3
TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 –
