- 8 -

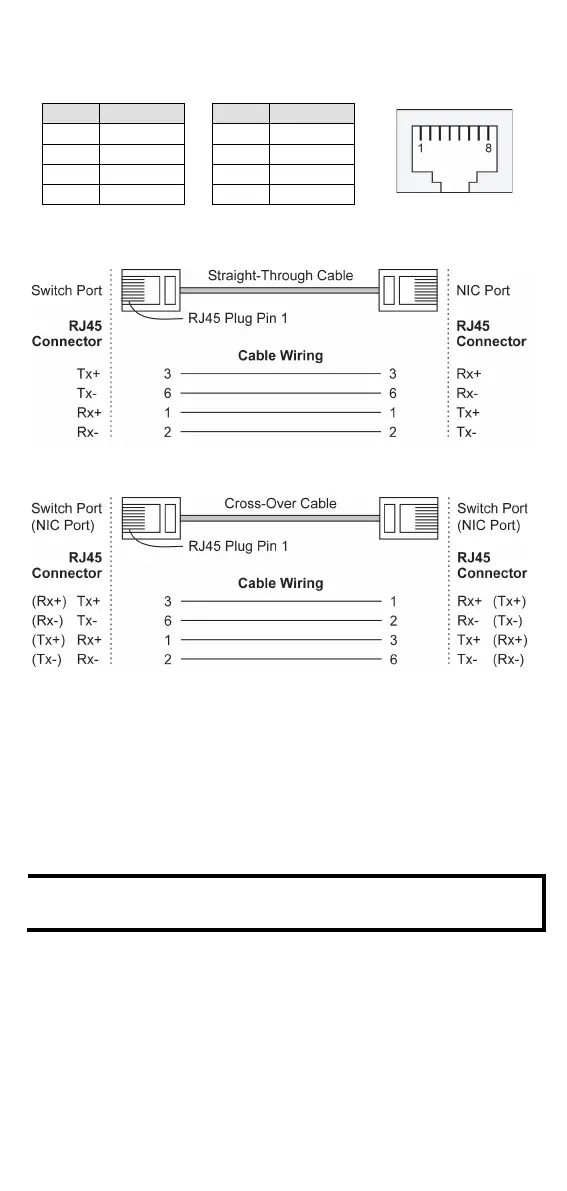

10/100Base T(x) RJ45 Pinouts
RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring
RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring
Reset Button
The reset button is to reset the Ethernet switch to factory default settings
by pressing and holding the reset button for 5 seconds. Use a pointed
object, such as a straightened paper clip or toothpick, to depress the
reset button. This will cause the STATE LED to blink once a second. After
depressing the button for 5 continuous seconds, the STATE LED will start
to blink rapidly. This indicates that factory default settings have been
loaded and you can release the reset button.
DO NOT power off the Ethernet switch when loading default
settings.
Turbo Ring DIP Switch Settings
EDS-405A-PTP series switches are plug-and-play managed redundant
Ethernet switches. The proprietary Turbo Ring protocol was developed by
Moxa to provide better network reliability and faster recovery time. Moxa
Turbo Ring’s recovery time is less than 300 ms (Turbo Ring) or 20 ms
(Turbo Ring V2) —compared to a 3 to 5-minute recovery time for
