- 3 -
• IP30 metal housing
• DIN-rail or panel mounting ability

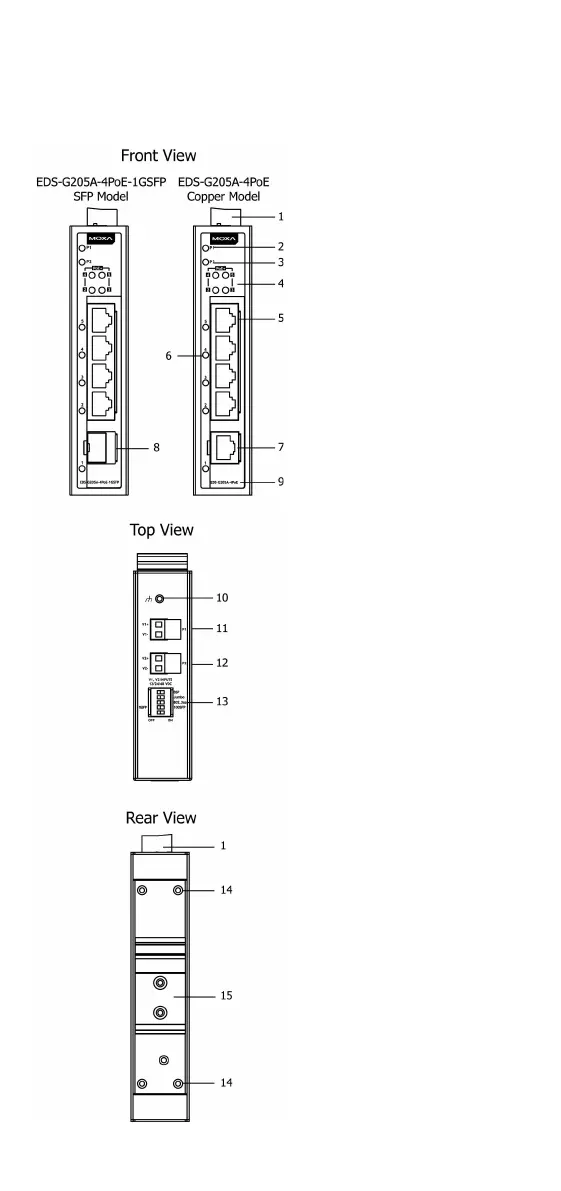

EDS-G205A-4PoE Panel Layouts
1. Terminal blocks for P1/P2
power inputs
2. Power input P1 LED
3. Power input P2 LED
4. PoE status LED
5. 10/100/1000BaseT(X) PoE
ports (ports 2, 3, 4, 5)
6. TP port speed LED
7. 10/100/1000BaseT(X) port
(port 1)
8. 100/1000BaseX SFP slot
9. Model name
10.
Grounding screw
11.
P1 power input terminal
block
12.
P2 power input terminal
block
13.
DIP switches
14.
Screw holes for panel
mounting kit
15.
DIN-rail mounting kit
