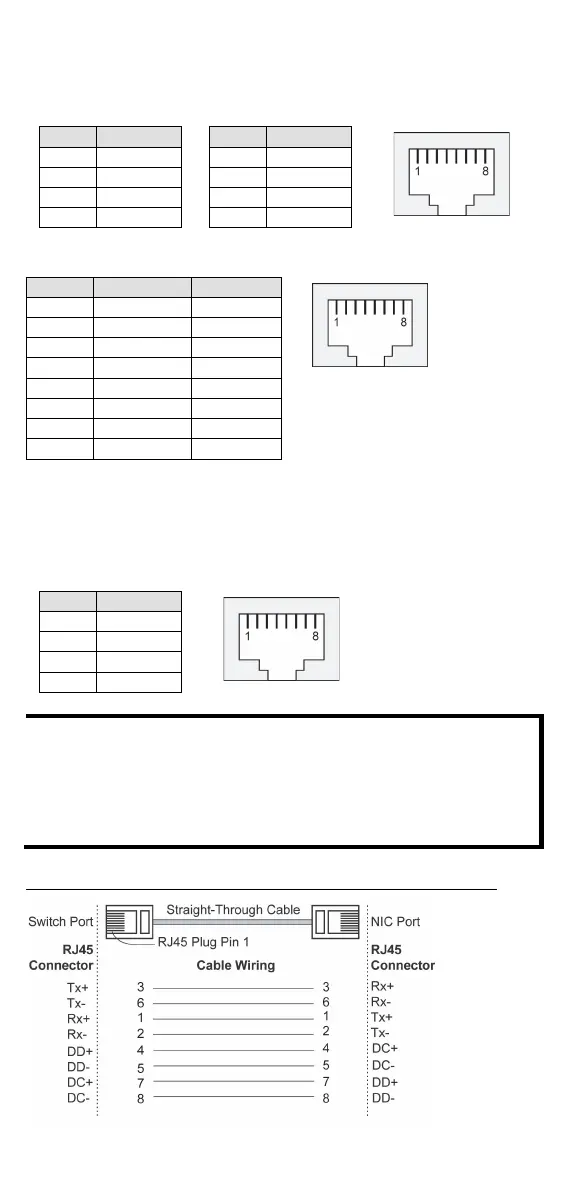

10/100BaseT(x) RJ45 Pinouts
MDI Port Pinouts
MDI-X Port Pinouts
8-pin RJ45
Pin
Signal
1
Tx+
2
Tx-
3
Rx+
6
Rx-
Pin
Signal
1
Rx+
2
Rx-
3
Tx+
6
Tx-
1000BaseT RJ45 Pinouts
Pin
MDI
MDI-X
1
BI_DA+
BI_DB+
2
BI_DA-
BI_DB-
3
BI_DB+
BI_DA+
4
BI_DC+
BI_DD+
5
BI_DC-
BI_DD-
6
BI_DB-
BI_DA-
7
BI_DD+
BI_DC+
8
BI_DD-
BI_DC-
PoE Ethernet Port Connection
PoE ports located on the EDS switch’s front panel are used to connect to
PoE-enabled devices. The pinout follows the Alternative A, MDI mode of
802.3af/802.3at standards. Details are shown below.
PoE Port Pinouts
8-pin RJ45
Pin
Power
1
V+
2
V+
3
V-
6
V-
NOTE
According to IEEE 802.3af/at standards, the PD shall be
implemented to be insensitive to the polarity of the power supply
and shall be able to operate per MDI mode and MDI
-X mode.
However, some PDs only support MDI mode or MDI
-
X mode only.
The following figure
s show how to select the correct cable to
connect between the PD and EDS-G205A-4PoE.
RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring
