- 4 -

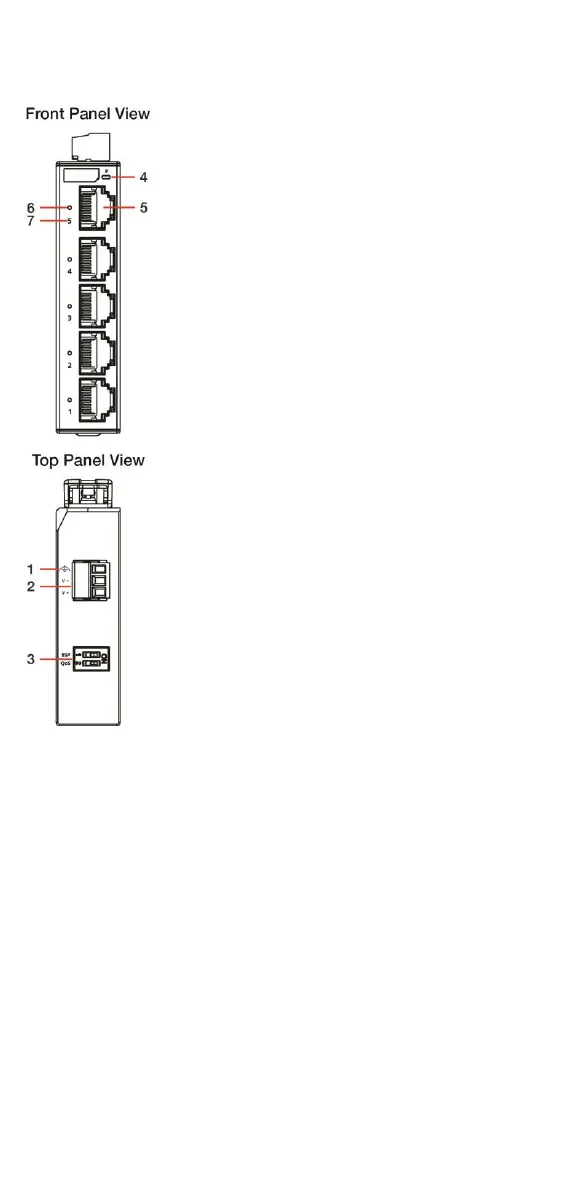

Panel Layout of IESH-MB205G-C2E-R
1. Chassis ground screw
2. Terminal block for power input
3. DIP switch
4. Power LED
5. 10/100/1000BaseT(X) Port
6. 10/100/1000BaseT(X) Port LED
7. Port number
