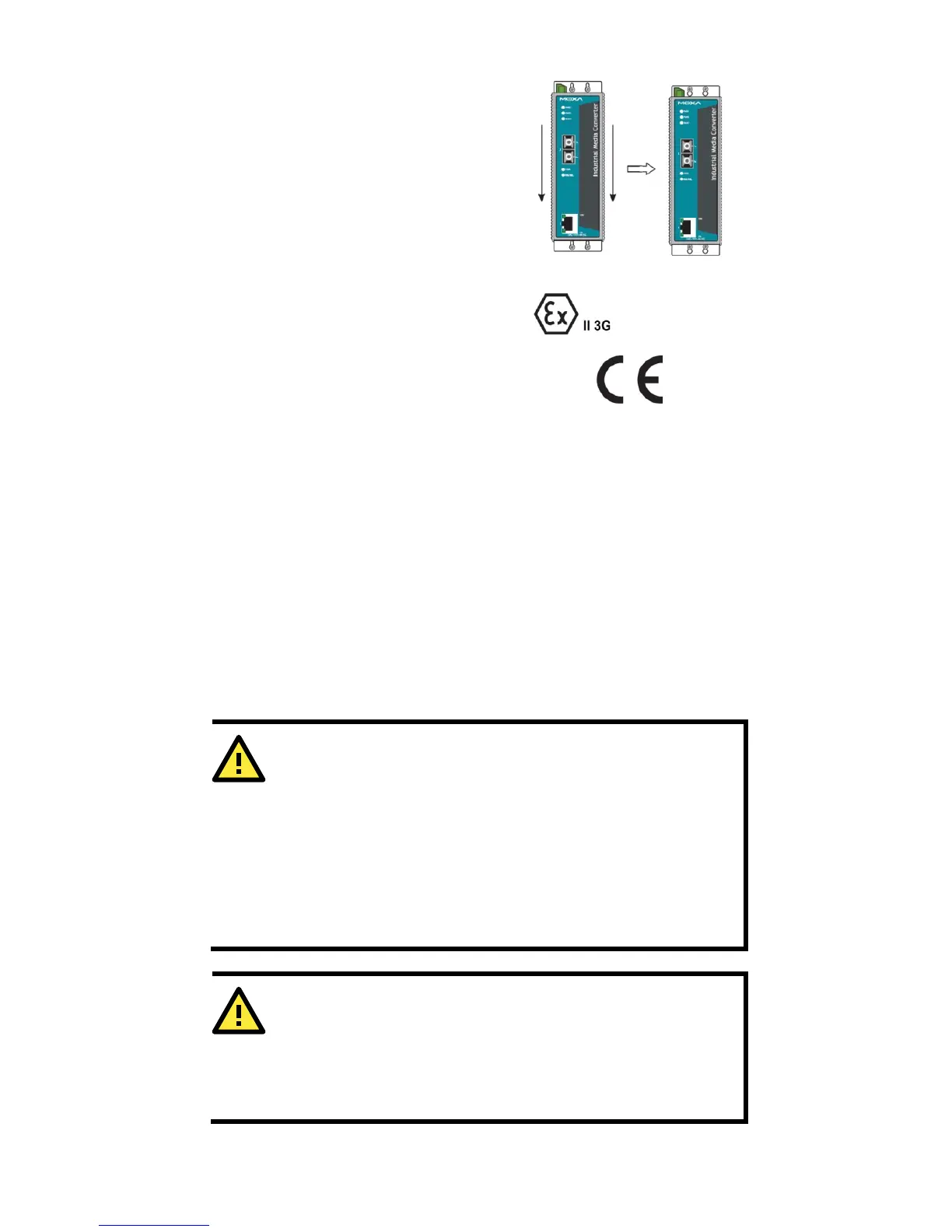

Once the screws are fixed in the wall, insert
the four screw heads through the large parts
of the keyhole
-shaped apertures, and then
slide Moxa Industrial Media Converter
downwards, as indicated below. Tighten the
four screws for added stability.
ATEX and IECEx Information
1. ATEX: DEMKO 09 ATEX 0812123X
2. Ambient range: -40°C ≤ Tamb ≤ 75°C
3. Certification string: Ex nC nL IIC T4
4. Standards covered:
EN 60079-0: 2009 /IEC 60079-0:Ed 6.0
EN 60079-15:2010/IREC 60079-15: Ed 4.0
EN 60079-28:2007
5. The conditions of safe usage:
The Ethernet Communication Devices are to be mounted in a
tool-accessible ATEX-certified or IECEx-certified IP54 enclosure and
used in an area of not more than pollution degree 2 as defined by
IEC60664-1. A 4 mm
2
conductor must be used when a connection to
the external grounding screw is used. Conductors suitable for use in
an ambient temperature of 93°C must be used for the Power Supply
Terminal.
Wiring Requirements
Do not disconnect modules or wires unless power has been
switched off or the a
rea is known to be non hazardous. The
devices may only be connected to the supply voltage shown on
the type plate.
The devices are designed for operation with a safety extra
voltage. Thus, they may only be connected to the supply voltage
connections an
d to the signal contact with the safety extra-low
voltages (SELV) in compliance with IEC950/EN60950/VDE0805.
Substitution of components may impair suitability for Class I,
Division 2 and Zone 2.
be supplied by a SELV source as defined in
the Low Voltage Directive 73/23/EEC and 93/68/EEC.
