Moxa Technologies IMC-101 Series User Manual

- 8 -
ATTENTION
This product is intended to be mounted to a well
-grounded
mounting surface such as a metal panel.

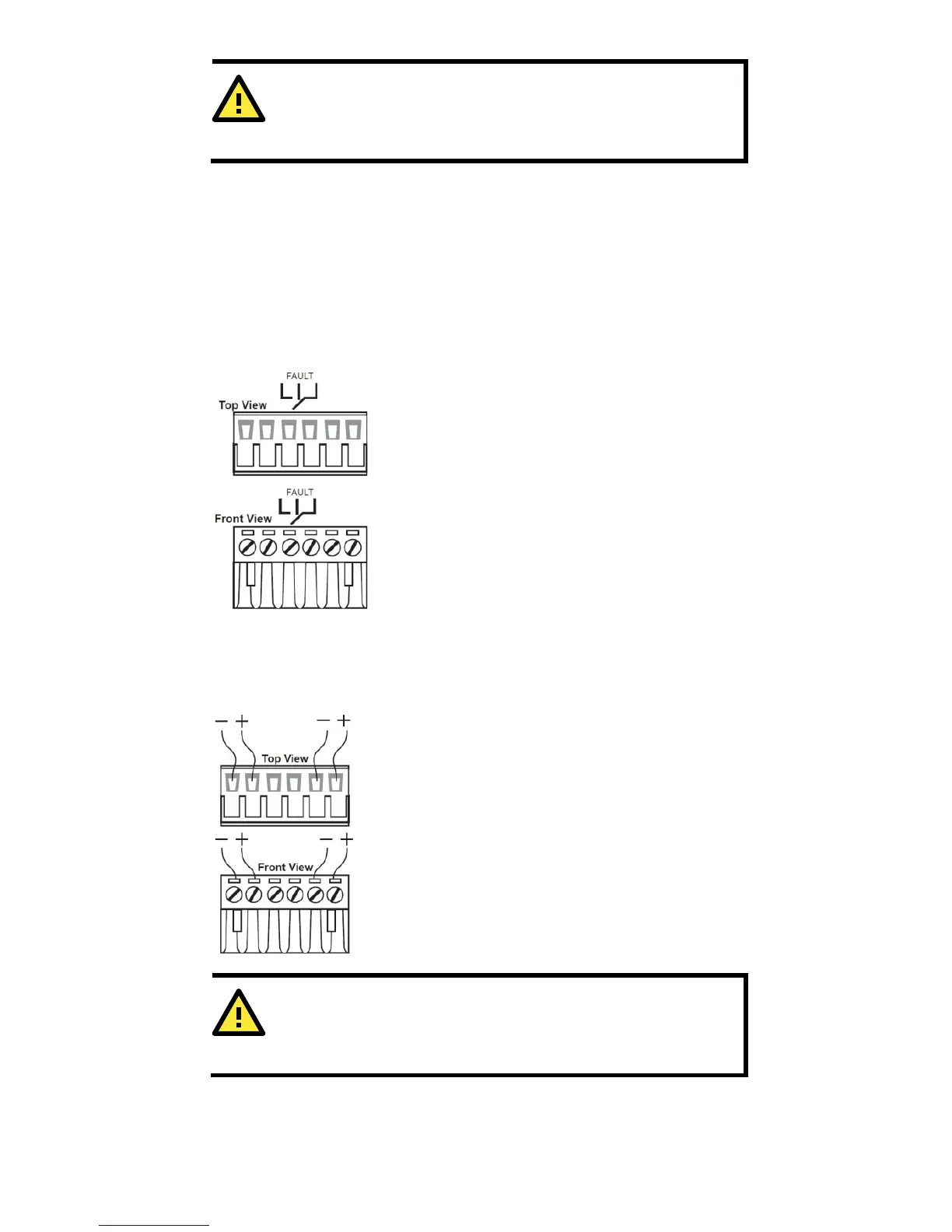

Wiring the Alarm Contact
The alarm contact is made up of the two middle contacts of the terminal
block on the IMC-101’s top panel. Refer to the next section for detailed
instructions on how to connect the wires to the terminal block connector,
and how to attach the terminal block connector to the terminal block
receptor.
In this section, we explain the meaning of the two contacts used to
connect the alarm contact.
FAULT:
The two middle contacts of the 6-
contact
terminal block connector are used to detect both
power faults and port faults. The two wires
attached
to the Fault contacts form an open
circuit when:
1. The IMC-101
has lost power from one of the
DC power inputs.
OR
2. One of the ports for which the
corresponding PORT ALARM Dip Switch is
set to ON is not properly connected.
If neither of these two conditions occurs
, the
Fault circuit will be closed.
Wiring the Redundant Power Inputs
STEP 1:
Insert the negative/positive DC wires
into the V
-/V+ terminals.
STEP 2: To keep the DC wires from pulling loose,
use a small flat
-
blade screwdriver to tighten the
wire
-clamp screws on the front of the terminal
block connector.
STEP 3:
Insert the plastic terminal block
connector prongs into the terminal block
receptor, which is located on
the IMC-101
’s top
panel.
ATTENTION
Before connecting
the IMC-101 to the DC power inputs, make
sure the DC power source voltage is stable.
Communication Connections
The IMC-101 has one 10/100BaseT(X) Ethernet port, and one 100BaseFX
(SC or ST type connector) fiber port.
