Moxa Technologies ioLogik E1200 Series Quick Installation Guide

- 6 -
LED Indicators
Type
Color
Description
Power
Amber
System power is ON
Off
System power is OFF
Ready
Green
System is ready
Flashing
Flashes every 1 sec when the “Locate”
function is triggered
Flashing
Flashes every 0.5 sec when the firmware is
being upgraded
Flashing
An on/off period cycle: 0.5 second shows
“Safe Mode”
Off
System is not ready.
Port 1
Green
Ethernet connection enabled
Flashing
Transmitting or receiving data
Port 2
Green
Ethernet connection enabled
Flashing
Transmitting or receiving data
EXT
(E1213 only)
Green
EXT field power input is connected
Off
EXT field power input is disconnected

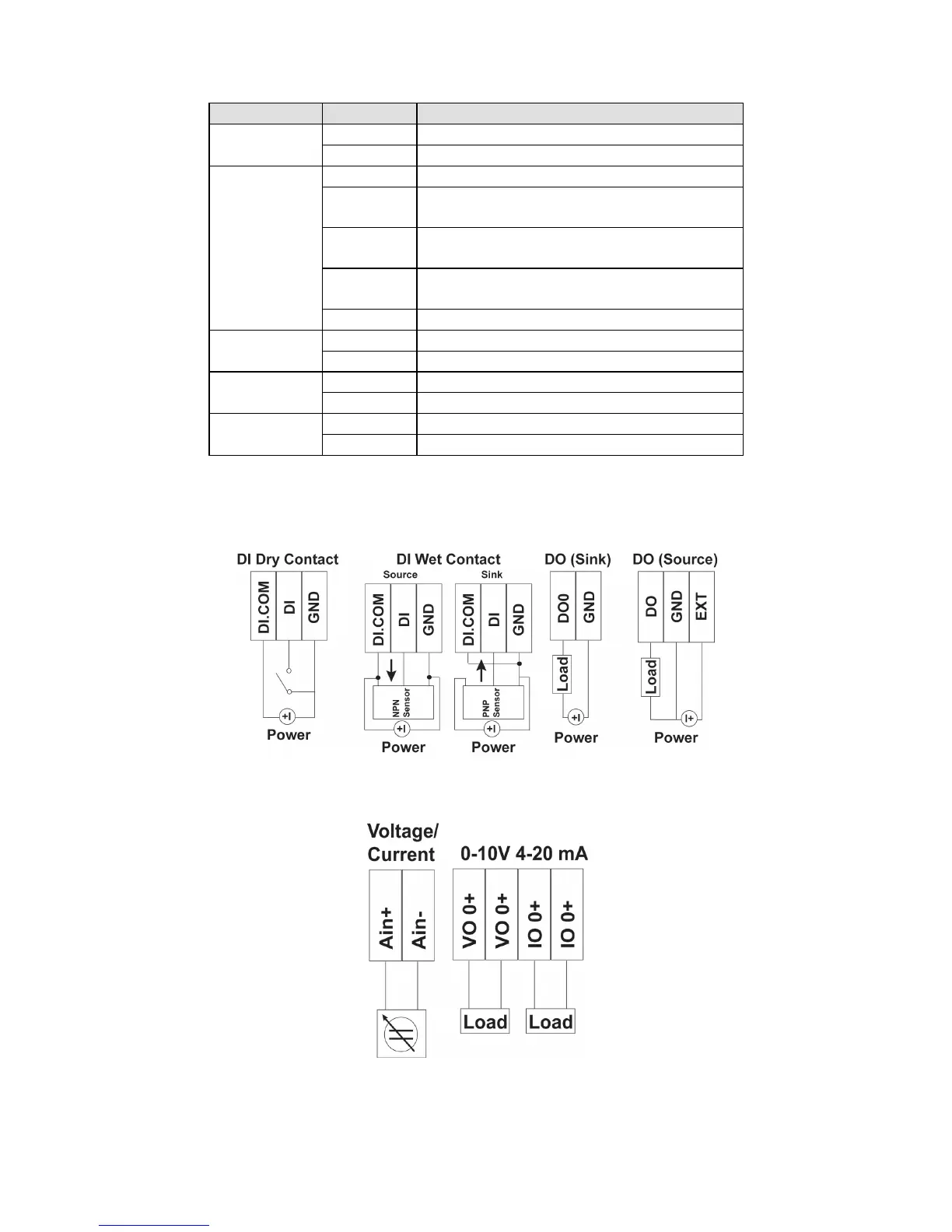

I/O Wiring
Digital Inputs/Outputs
Analog Inputs/Outputs
