Moxa Technologies NPort 5230 User Manual

NPort 5000 Series User Manual
132

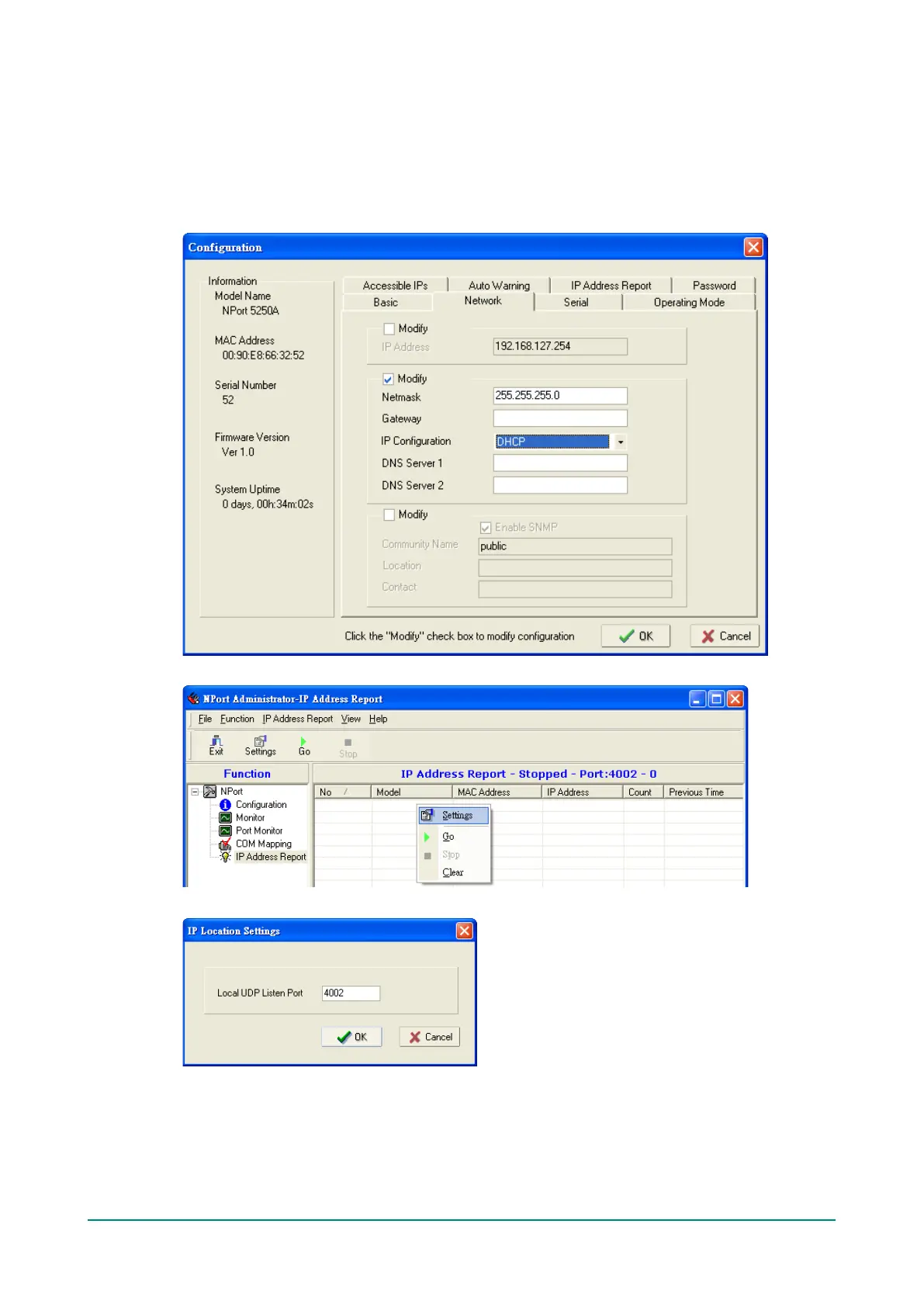

IP Address Report
When the NPort is used in a dynamic IP environment, users must spend more time with IP management
tasks. NPort serial device servers help out by periodically reporting their IP address to the IP location
server, in case the dynamic IP has changed.
1. Configure the NPort with Dynamic IP settings (DHCP, BOOTP, or DHCP/BOOTP). Assign the remote Auto
IP report server’s IP address and UDP port.
2. Select the IP Address Report, and click the right mouse button to select Settings.
3. Configure the Local Listen Port to be the same as the NPort’s “Auto report to UDP port” setting.

Moxa Technologies NPort 5230 Specifications

General

Isolation	1.5 kV
Certification	CE, FCC, EN
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Ethernet LAN (RJ-45) ports	1
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, IGMP v1/2
Compatible operating systems	Windows 95/98/ME/NT/2000/XP/2003/Vista Windows XP/2003/Vista (32/64-bit) SCO Unix SCO OpenServer UnixWare 7 UnixWare 2.1, Unix SVR 4.2 Unix QNX 4.25, QNX 6 Solaris 10 FreeBSD AIX 5.x HP-UX 11i
Storage temperature (T-T)	-20 - 85 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	12 - 48 V
Safety	UL, TÜV, DNV

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	67 x 100.4 x 22 mm
