NPort 5000 Series User Manual
135
Using NPort CE Driver Manager
After you install NPort CE Driver Manager, you can set up the NPort’s serial ports as remote COM ports for
your Windows CE. Make sure that the serial port(s) on your NPort are set to Real COM mode when mapping
COM ports with NPort CE Driver Manager.

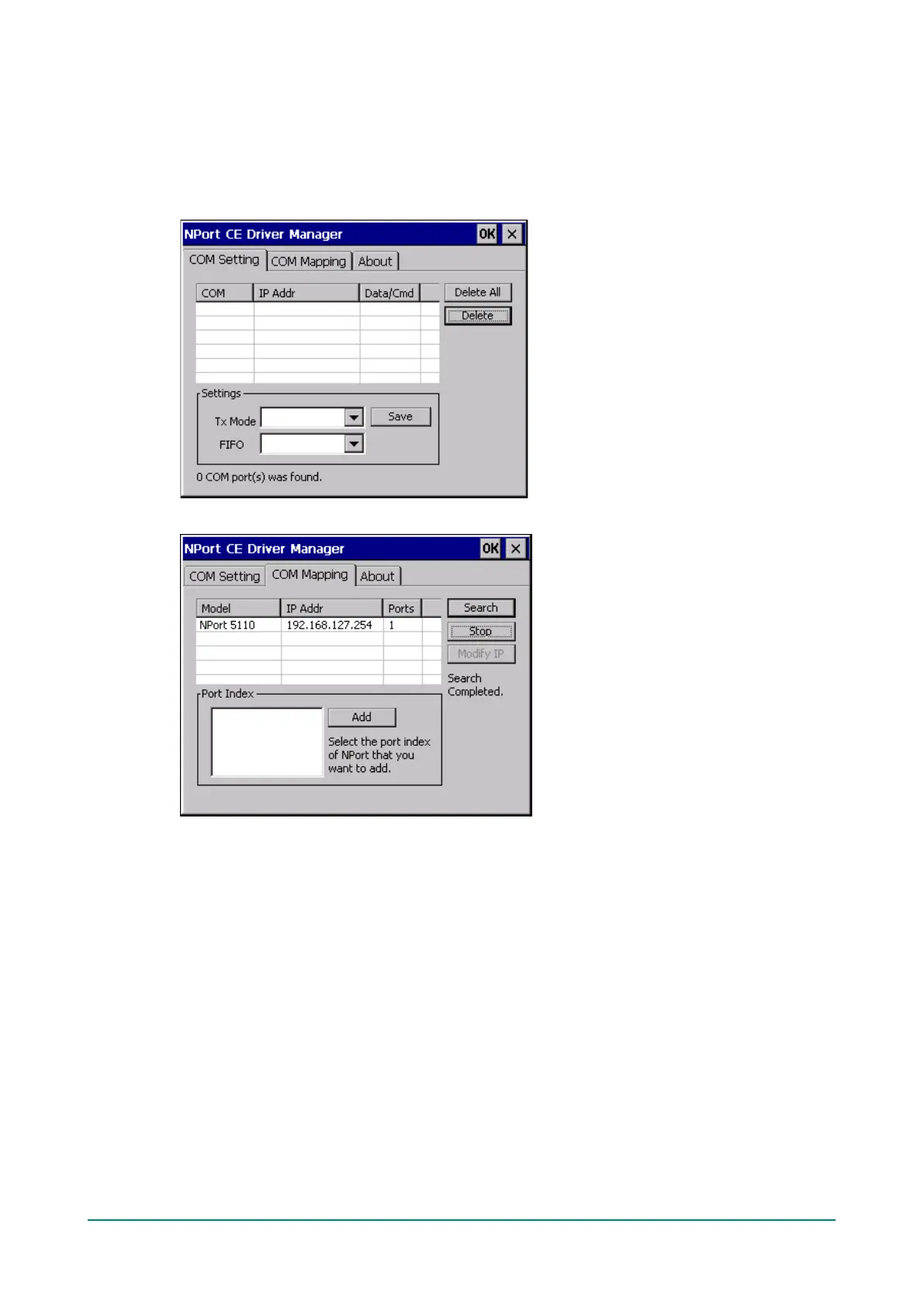

1. Go to Start > Programs > NPort CE Driver Manager.
2. Click on the COM Mapping page and then the “Search” button to scan for NPort servers
3. All NPort servers that were located will appear in the NPort CE Driver Manager window. Click on the
server whose COM ports you would like to map to and then select the port index. Note that multiple
selections are allowed.

Moxa Technologies NPort 5230 Specifications

General

Isolation	1.5 kV
Certification	CE, FCC, EN
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Ethernet LAN (RJ-45) ports	1
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, IGMP v1/2
Compatible operating systems	Windows 95/98/ME/NT/2000/XP/2003/Vista Windows XP/2003/Vista (32/64-bit) SCO Unix SCO OpenServer UnixWare 7 UnixWare 2.1, Unix SVR 4.2 Unix QNX 4.25, QNX 6 Solaris 10 FreeBSD AIX 5.x HP-UX 11i
Storage temperature (T-T)	-20 - 85 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	12 - 48 V
Safety	UL, TÜV, DNV

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	67 x 100.4 x 22 mm
