NPort 5000 Series User Manual
179

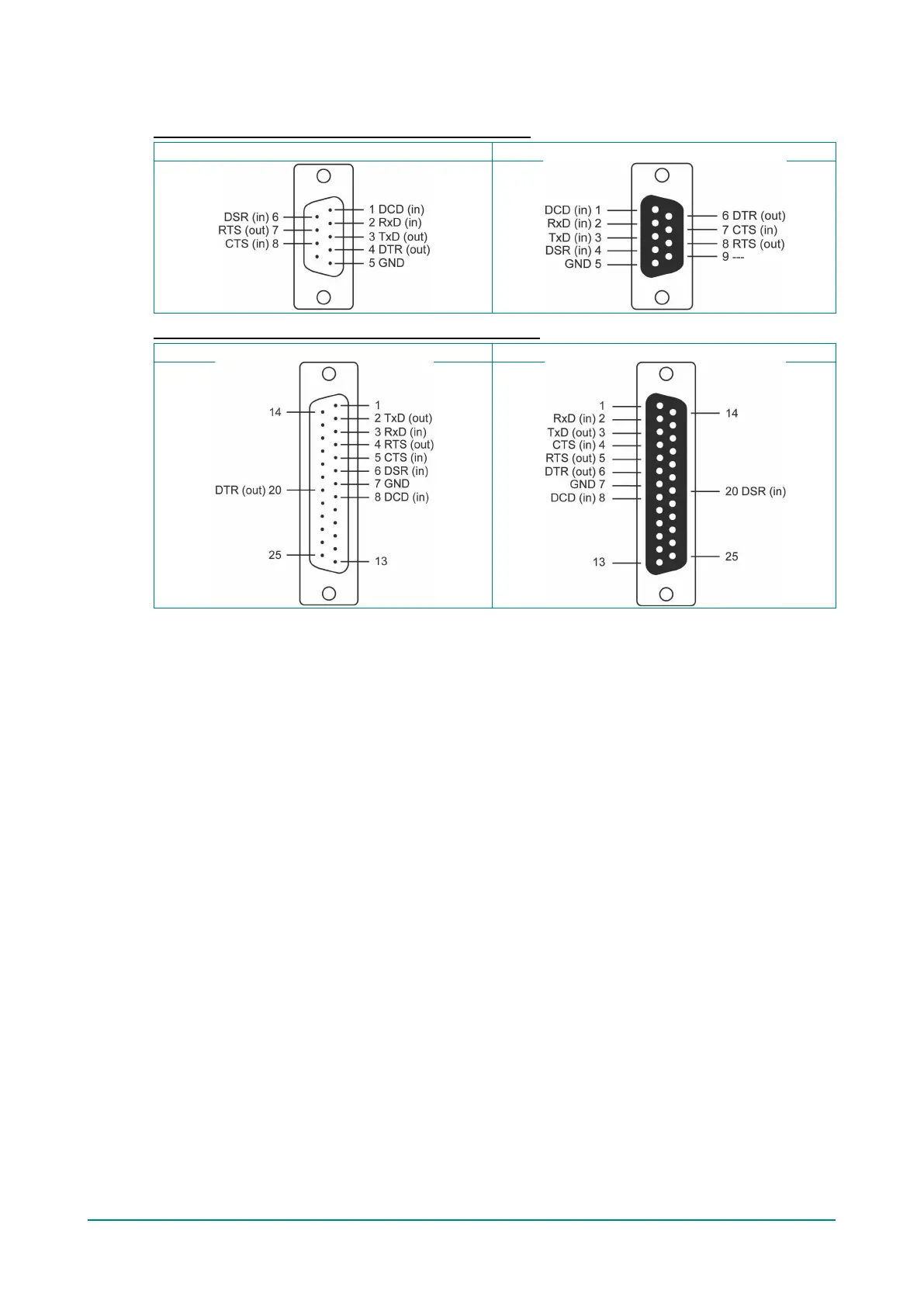

Pin Assignments for DB9 and DB25 Connectors
Pin Assignments for DB9 Male and Female Connectors
DB9 Male Connector
DB9 Female Connector
Pin Assignments for DB25 Male and Female Connectors
DB25 Male Connector
DB25 Female Connector

Table of Contents

Other manuals for Moxa Technologies NPort 5230

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Moxa Technologies NPort 5230 and is the answer not in the manual?

Moxa Technologies NPort 5230 Specifications

General IconGeneral
Isolation1.5 kV
CertificationCE, FCC, EN
Serial interface typeRS-232, RS-422, RS-485
Serial ports quantity2
Ethernet LAN data rates10, 100 Mbit/s
Surge protection voltage0.5 kV
Ethernet LAN (RJ-45) ports1
Supported network protocolsICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, IGMP v1/2
Compatible operating systemsWindows 95/98/ME/NT/2000/XP/2003/Vista Windows XP/2003/Vista (32/64-bit) SCO Unix SCO OpenServer UnixWare 7 UnixWare 2.1, Unix SVR 4.2 Unix QNX 4.25, QNX 6 Solaris 10 FreeBSD AIX 5.x HP-UX 11i
Storage temperature (T-T)-20 - 85 °C
Operating temperature (T-T)0 - 55 °C
Operating relative humidity (H-H)5 - 95 %
Input voltage12 - 48 V
SafetyUL, TÜV, DNV
Weight and Dimensions IconWeight and Dimensions
Weight340 g
Dimensions (WxDxH)67 x 100.4 x 22 mm
