Moxa Technologies PT-7728 Hardware Installation Guide

- 3 -

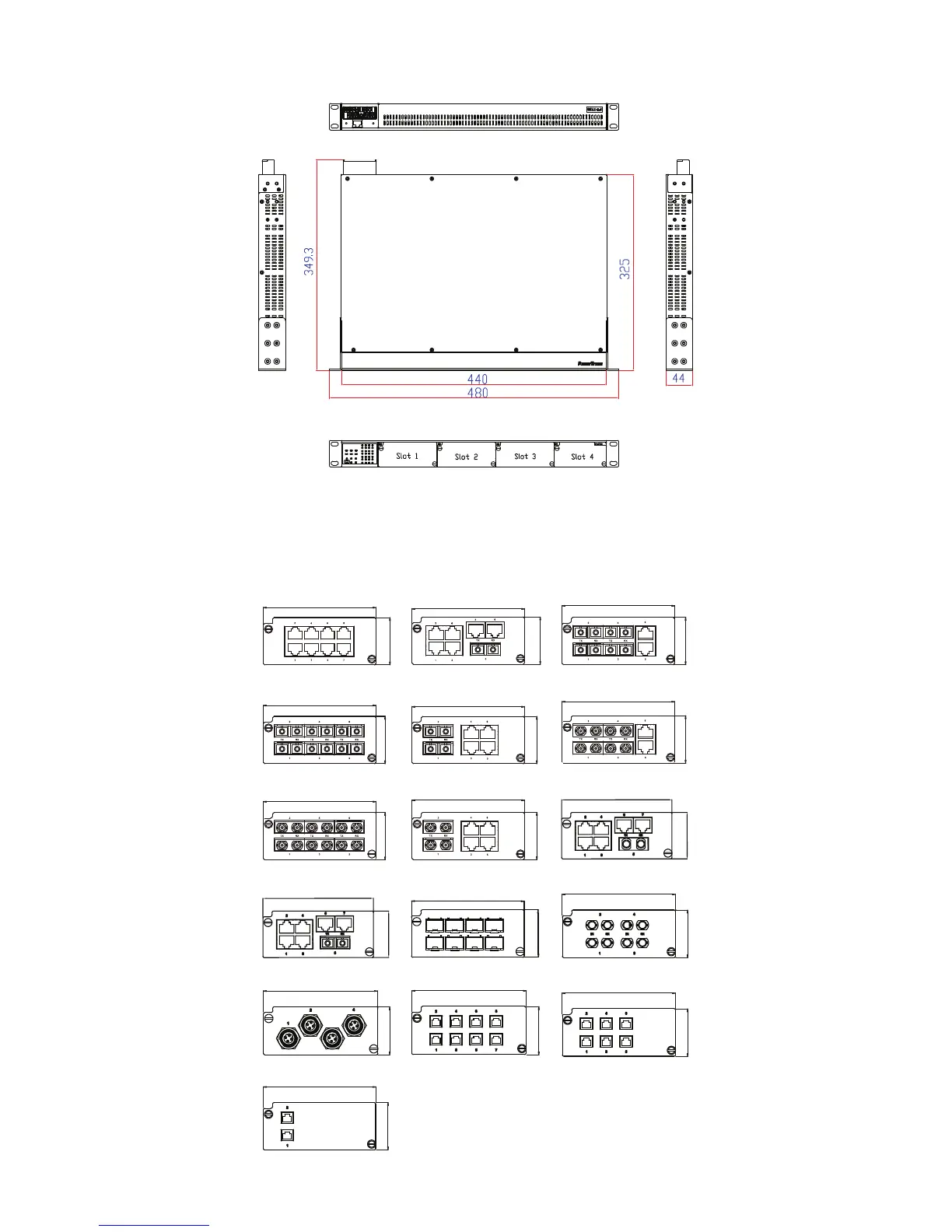

Dimensions (unit = mm)
Rear View
Side ViewSide View
Front View
Top View
Fast Ethernet Interface Modules
(for slots 1, 2, and 3)
40.7
96.8
PM-7200-8TX
96.8
40.7
PM-7200-1LSC6TX
40.7
96.8
PM-7200-4MSC2TX/PM-7200-4SSC2TX
96.8
40.7
PM-7200-6MSC/PM-7200-6SSC
96.8
40.7
PM-7200-2MSC4TX/PM-7200-2SSC4TX
PM-7200-4MST2TX
40.7
96.8
PM-7200-6MST
96.8
40.7
PM-7200-2MST4TX
96.8
40.7
96.8
40.7
PM-7200 1MST6TX
PM-7200-8SFP
96.8
40.7
40.7
96.8
PM-7200 1SSC6TX/1MSC6TX
40.7
96.8
PM-7200-4M12
40.7
96.8
PM-7200 4MST-FL
40.7
96.8
PM-7200 8MTRJ
40.7
96.8
PM-7200 6MTRJ
40.7
96.8
PM-7200 2MTRJ
