UPort 1100 Series Installation and Configuration
2-4

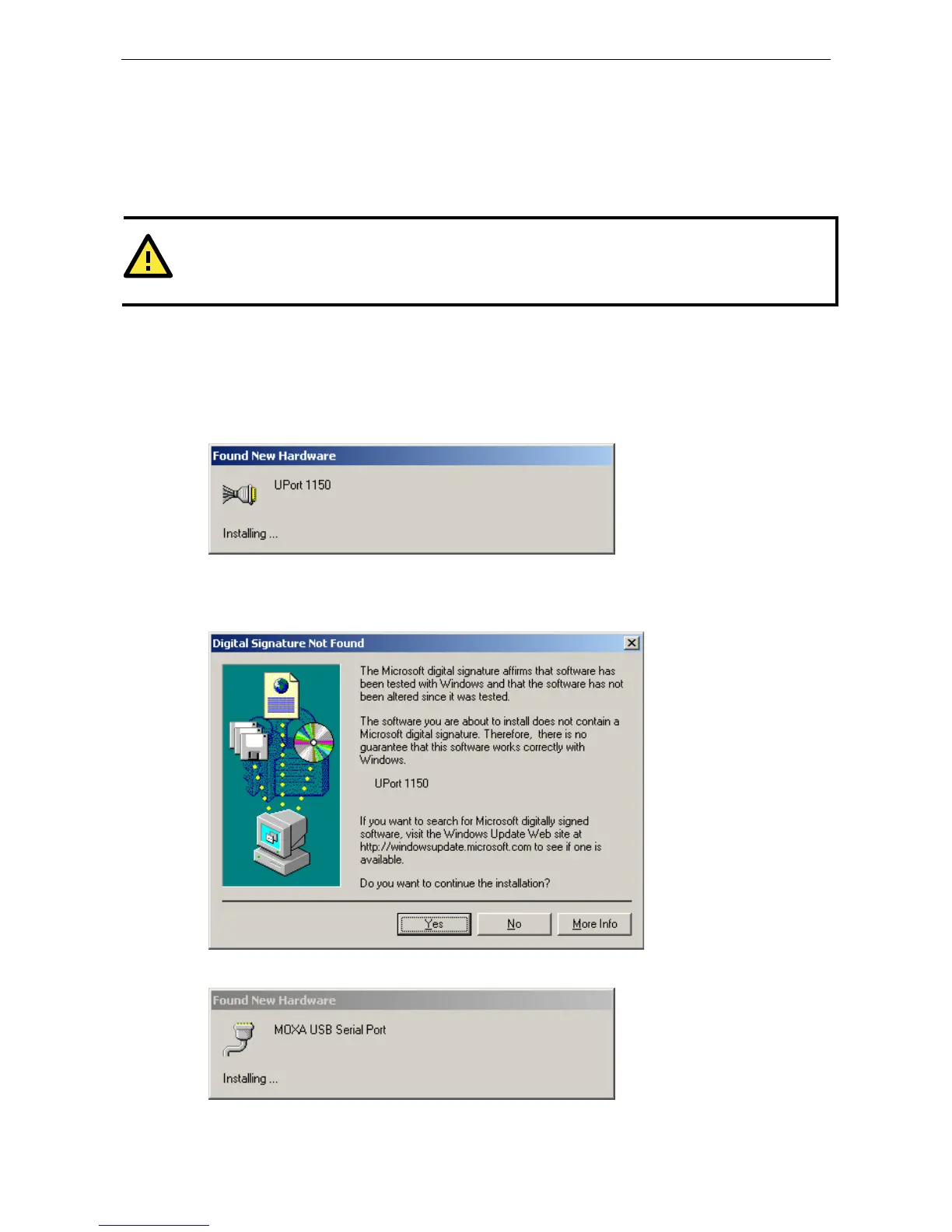

Hardware Installation
After installing the driver, plug the converter into any upstream USB port, such as a USB port on your computer.
Windows will automatically detect the converter and begin installing the driver. When the Windows finishes
installing the driver for the converter, it will then detect a new COM port, and will then install another driver for
the new COM port.
ATTENTION
For best results, we recommend that you install the dri
ver before plugging the converter into the USB port.
Please refer to the previous section on Initial Driver Installation for instructions.
Windows 98/ME and Windows 2000
The following instructions are for Windows 98 and Windows 2000 systems:
1. After plugging the converter into a USB port, the Found New Hardware window should open
automatically. The USB icon indicates that the USB port is being installed. No action is required.
2. Windows 98 users may skip to the next step. On Windows 2000 systems, a window will pop up cautioning
you that this software has not passed Windows logo testing. This is a standard warning, and Moxa has
thoroughly tested the driver for safe Windows operation. Please click Yes to proceed.
3. Windows will automatically detect and install the new serial port. No further action is required

Moxa Technologies UPORT 1130 Specifications

General

Connector 1	USB
Connector 2	DB-9M
Connector 1 gender	Male
Depth (imperial)	2.36 \
Width (imperial)	1.51 \
Height (imperial)	0.79 \
Weight (imperial)	0.14 lbs
Dimensions (WxDxH)	38.4 x 60 x 20 mm
Product color	Silver
Data transfer rate	0.012 Gbit/s
Compatible operating systems	Windows 98, ME, 2000, XP (x86/x64), 2003 (x86/x64), Vista (x86/x64) WinCE 5.0 Linux 2.6 (x86/x64), Linux 2.4 (x86/x64)
Input voltage	5 V

Weight and Dimensions

Weight	65 g
