Moxa Technologies UPORT 1130 User Manual

UPort 1100 Series Introduction
1-4
Environmental Limits
Operating
Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature:
-20 to 70°C (-4 to 158°F)
Ambient Relative Humidity:
5 to 95% (non-condensing)
Altitude:
Up to 2000 m
Note: Please contact Moxa if you require products guaranteed to function properly at higher
altitudes.
Standards and Certifications
EMC:
CE, FCC
EMI:
EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B
EMS:
EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC-61000-4-6, IEC
61000
-4-8, IEC-61000-4-11
Green Product:
RoHS, CRoHS, WEEE
Power Requirements
Power Consumption:
UPort 1110: 30 mA @ 5 VDC
UPort 1130: 60 mA @ 5 VDC
UPort 1130I: 65 mA @ 5 VDC
UPort 1150: 77 mA @ 5 VDC
UPort 1150I: 260
mA @ 5 VDC
MTBF (mean time between failures)
Time:
1,949,025 hrs
Database:
Telcordia (Bellcore), GB
Warranty
Warranty Period:
5 years
Details:
See www.moxa.com/warranty
LED Indicators

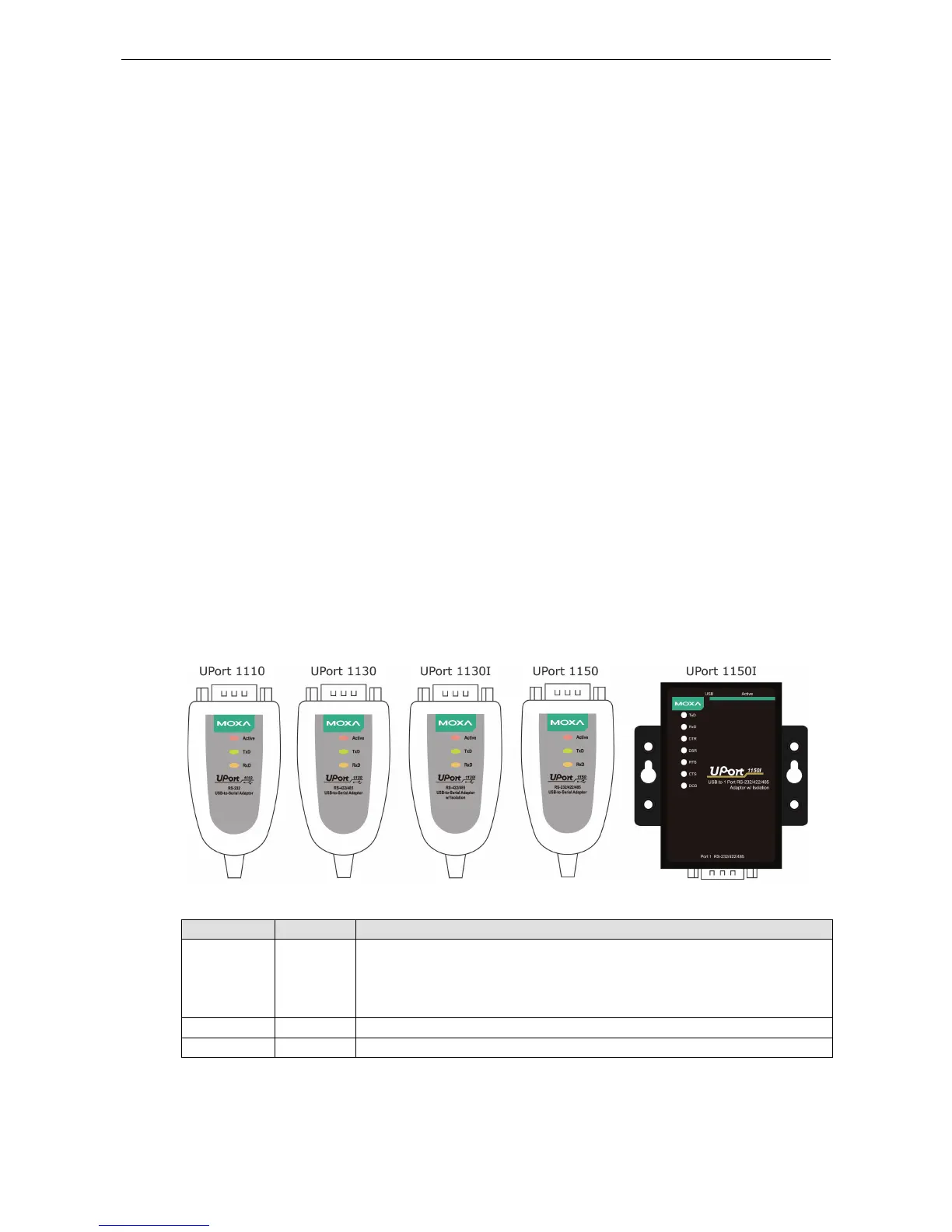

UPort 1110/1130/1130I/1150 LED description:
Name Color Description
Active Red This LED indicates normal operation.
Steady: The UPort is operational.
Off: Fault condition exists. There may be a problem with the converter, the
driver installation, or PC configuration.
TxD Green Blinking: Serial device is transmitting data.
RxD Yellow Blinking: Serial device is receiving data.

Moxa Technologies UPORT 1130 Specifications

General

Connector 1	USB
Connector 2	DB-9M
Connector 1 gender	Male
Depth (imperial)	2.36 \
Width (imperial)	1.51 \
Height (imperial)	0.79 \
Weight (imperial)	0.14 lbs
Dimensions (WxDxH)	38.4 x 60 x 20 mm
Product color	Silver
Data transfer rate	0.012 Gbit/s
Compatible operating systems	Windows 98, ME, 2000, XP (x86/x64), 2003 (x86/x64), Vista (x86/x64) WinCE 5.0 Linux 2.6 (x86/x64), Linux 2.4 (x86/x64)
Input voltage	5 V

Weight and Dimensions

Weight	65 g
