Connecting Camera Control Cable
4 different control cables are stored in the tool box
1. M3C-Mini cable: For cameras with Mini port like Canon 5D3, etc
2. M3C-Micro cable: For cameras with Micro port like Canon 5D4, etc
3. MCSC-Remote cable: For Panasonic cameras with 2.5mm port like GH3, GH4, etc
4. MCSC-Multi cable: For Sony cameras with Multi port like A7s II, A7 III, etc
5. MCSC-Multi/C cable: For Sony cameras with Multi port and USB power supply like
A7s II, A7 III, etc

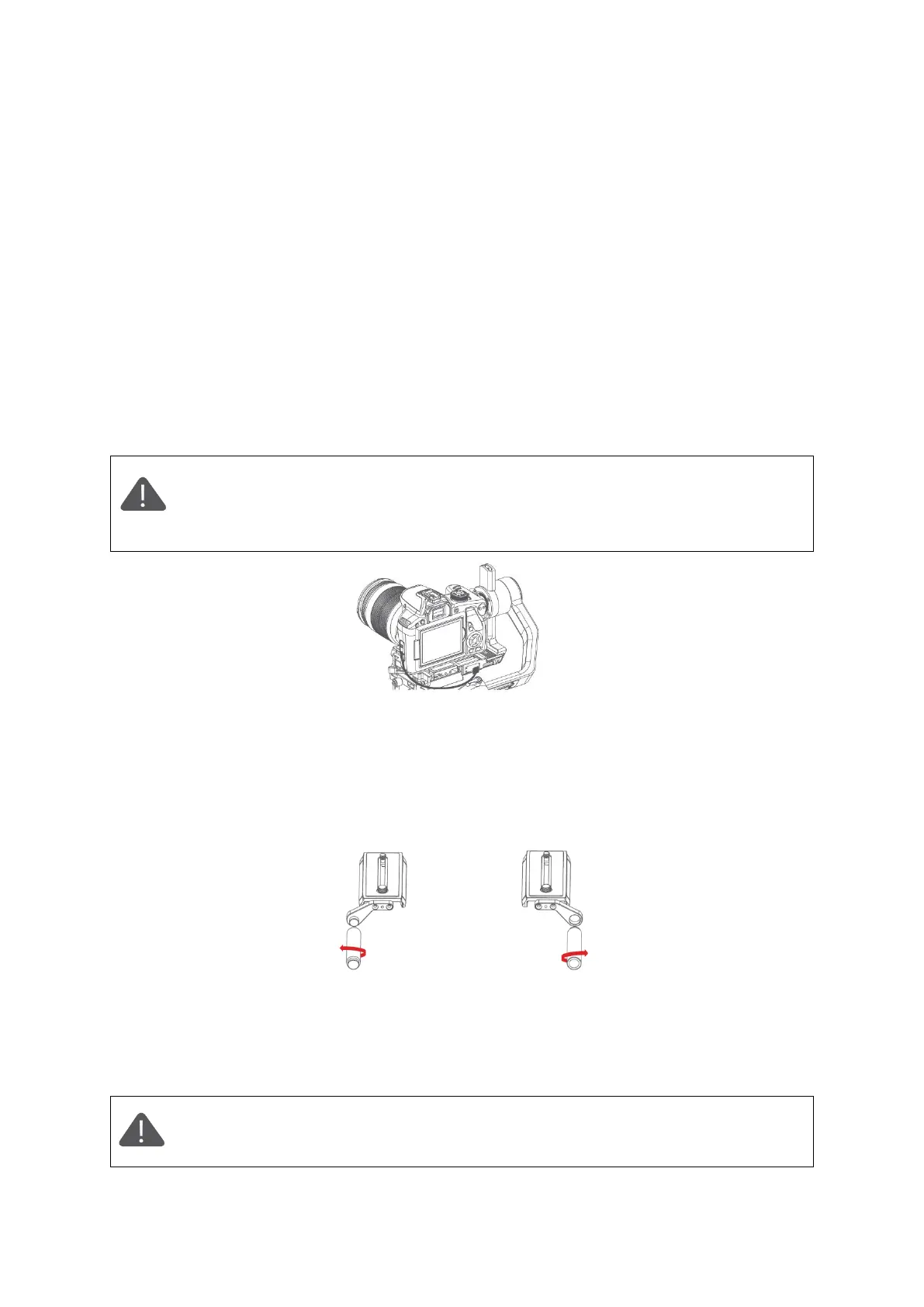

Connect the control cable to the CAM CTRL port on the Air 2S gimbal, and then the other
end to the control port on the camera. The camera icon will be displayed on the OLED
screen. Then parameters adjusting, video recording or photo taking, and follow focus
can be directly operated on the gimbal.
Note:
1. For details of different cameras and lenses, please refer to ‘Camera Control’.
2. If USB control is not supported, the camera icon won’t display on the
screen, please choose your camera control protocol manually.
Installing the Support Rod
Please install the rod before using the follow focus.
Take out the rod adaptor, M3x10 screws, Allen wrench first. Fix the adaptor on the front
or back of the quick release plate with M3x10 screws, then revolve the support rod into
the adaptor.
When installed at the left side, please
match the stud of the rod adapter and the
screw hole of the support rod, then
tighten the support rod counterclockwise.
When installed at the right side, please
match the screw hole of the rod adapter
and the stud of the support rod, then
tighten the support rod clockwise.
Note: 1. Please install the support rod and rod adatptor according to the
position shown above for fear of falling off. 2. Can’t assiemble 2 support rods
together as extending use
