4
INSTALLATION
Unpacking and Inspection
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should
have received the following items inside the package:
The unit x 1
User manual x 1
Communication cable x 1
Software CD x 1

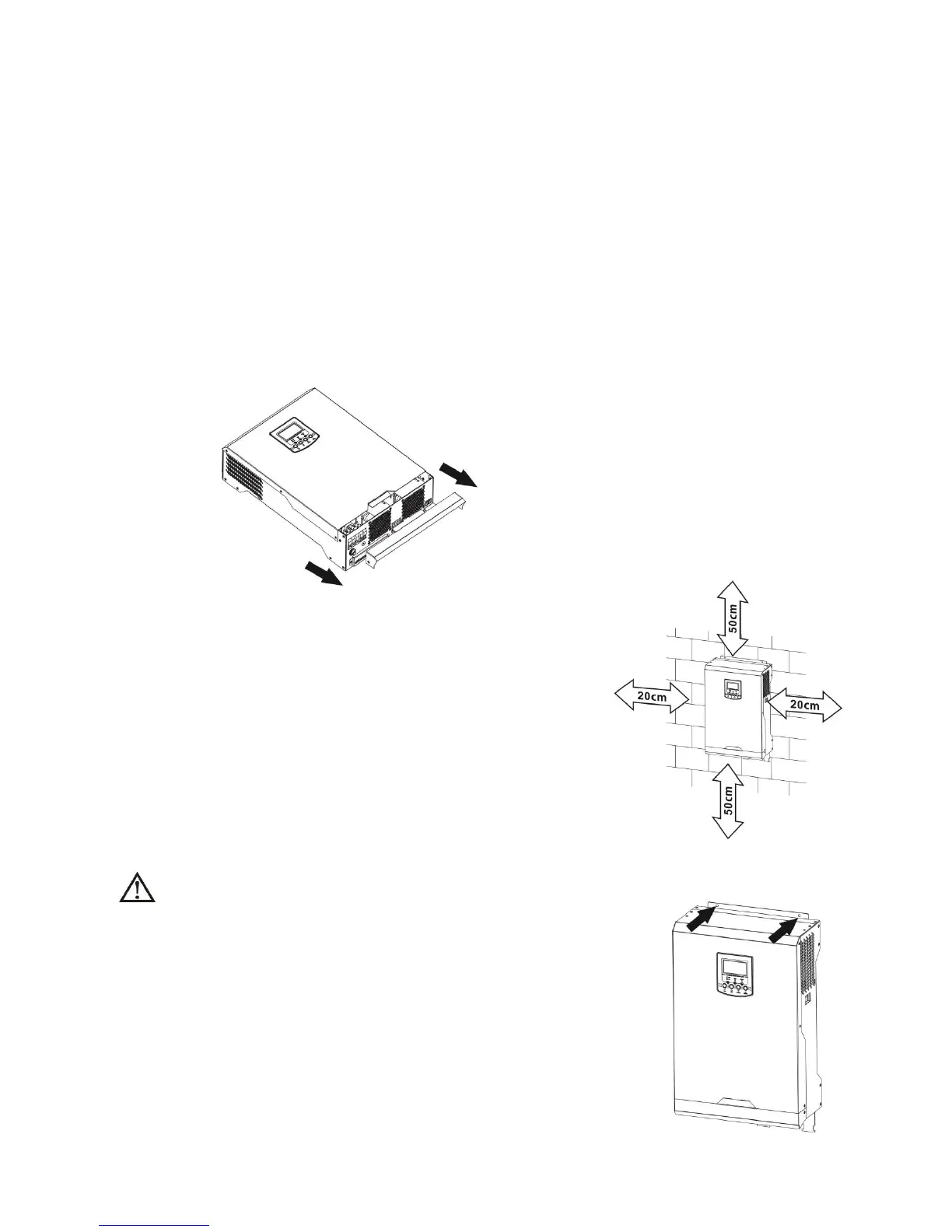

Preparation
Before connecting all wirings, please take off the cover of the bottom by removing the two screws as shown
below.
Mounting the Unit
Consider the following points before selecting where to install:
Do not mount the inverter on any flammable construction materials.
Mount this inverter on a solid surface
Install this inverter at eye level in order to read the LCD display at all
times.
The ambient temperature should be between 0°C and 55°C to
ensure optimal operation.
The inverter should be adhered to the wall vertically.
Be sure to keep other objects away and leave the space in a
minimum as shown in the right diagram to guarantee sufficient
heat dissipation and enough space for replacing wires.
SUITABLE FOR MOUNTING ON CONCRETE OR OTHER NON-COMBUSTIBLE SURFACE ONLY.
Install the unit by screwing two screws as shown in the diagram.
It’s recommended to use M4 or M5 screws.
