4. Installation
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You
should have received the following items inside of package:
 The unit x 1
 User manual x 1
 Communication cable x 1
 Mounting bracket x 2
Mounting the Unit
Please utilize the delivered mounting brackets for problem-free installation of the inverter. Installation to the
wall should be implemented with the proper screws. Mount the wall bracket so that the inverter can be easily
attached to the wall. After that, the device should be bolted on securely.

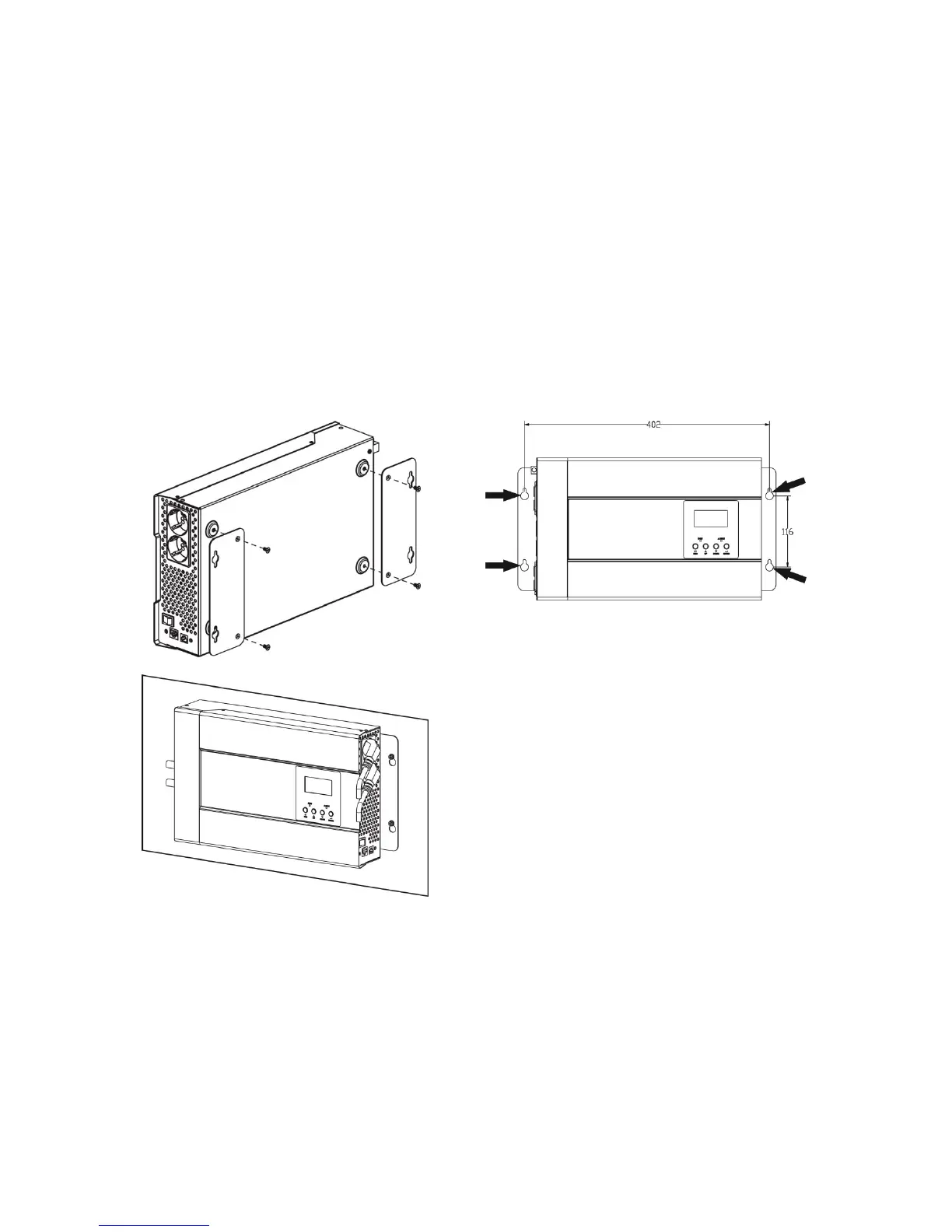

1. Screw two mounting brackets on the back of
the inverter with supplied screws as shown in
chart.
2. Mount the mounting plate with appropriate screws
(M4 or M5) into four holes to fix the unit in place.
3. Check if the inverter is firmly secured.
