LED Indicator
LED Indicator
Messages
Green
Flashing
Output is powered in inverter mode.
Red
Solid On
Fault occurs in the inverter.
Flashing
Warning condition occurs in the inverter.
Function Keys
Function Key
Description
ESC
To exit setting mode
UP
To go to previous selection
DOWN
To go to next selection
ENTER
To confirm the selection in setting mode or enter setting mode
LCD Display Icons
Icon
Function description
Input Source Information
Indicate battery voltage.
Configuration Program and Fault Information
Indicates the setting programs.
Indicates the warning and fault codes.

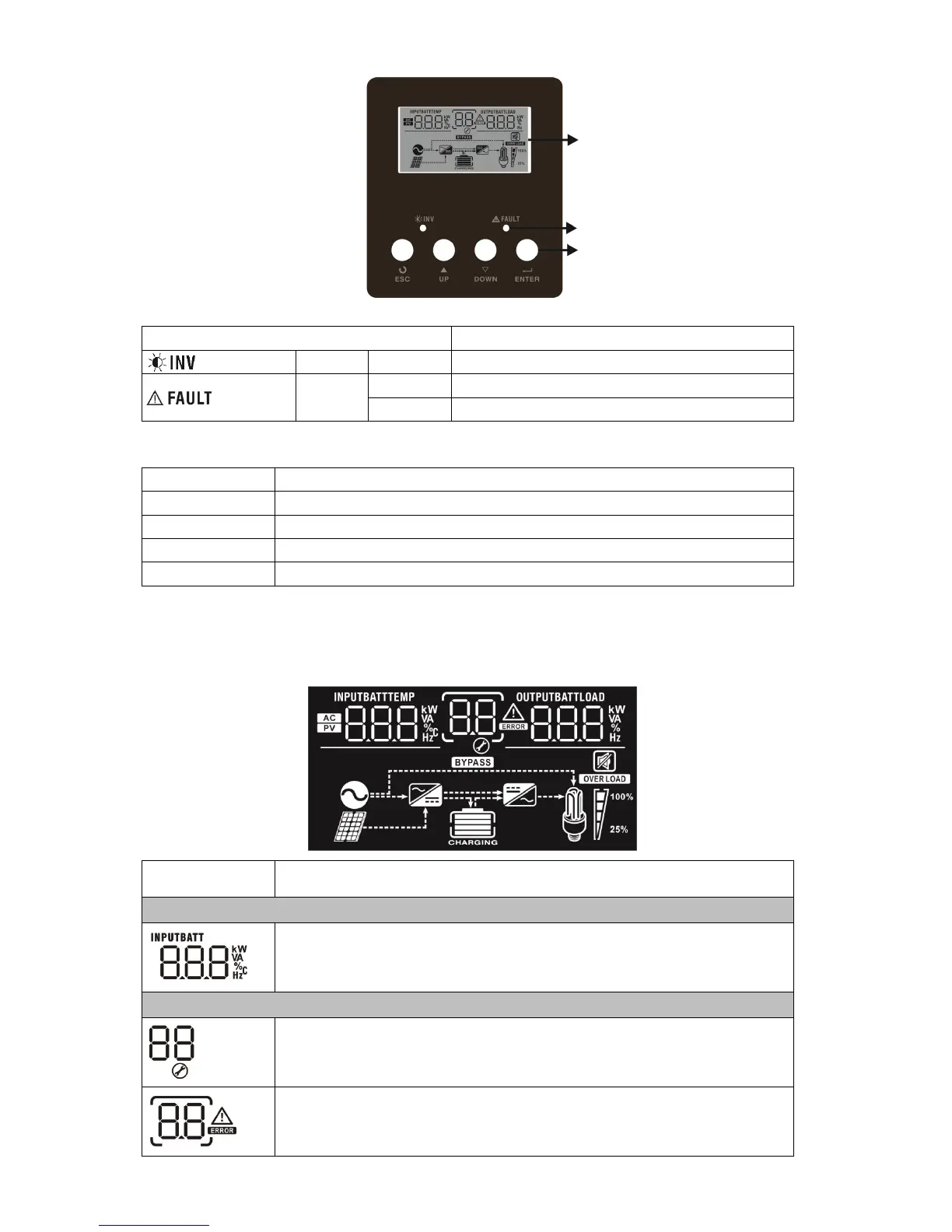

LCD display
LED indicators
Function keys
