MPP Solar PIP5048MKX User Manual

37

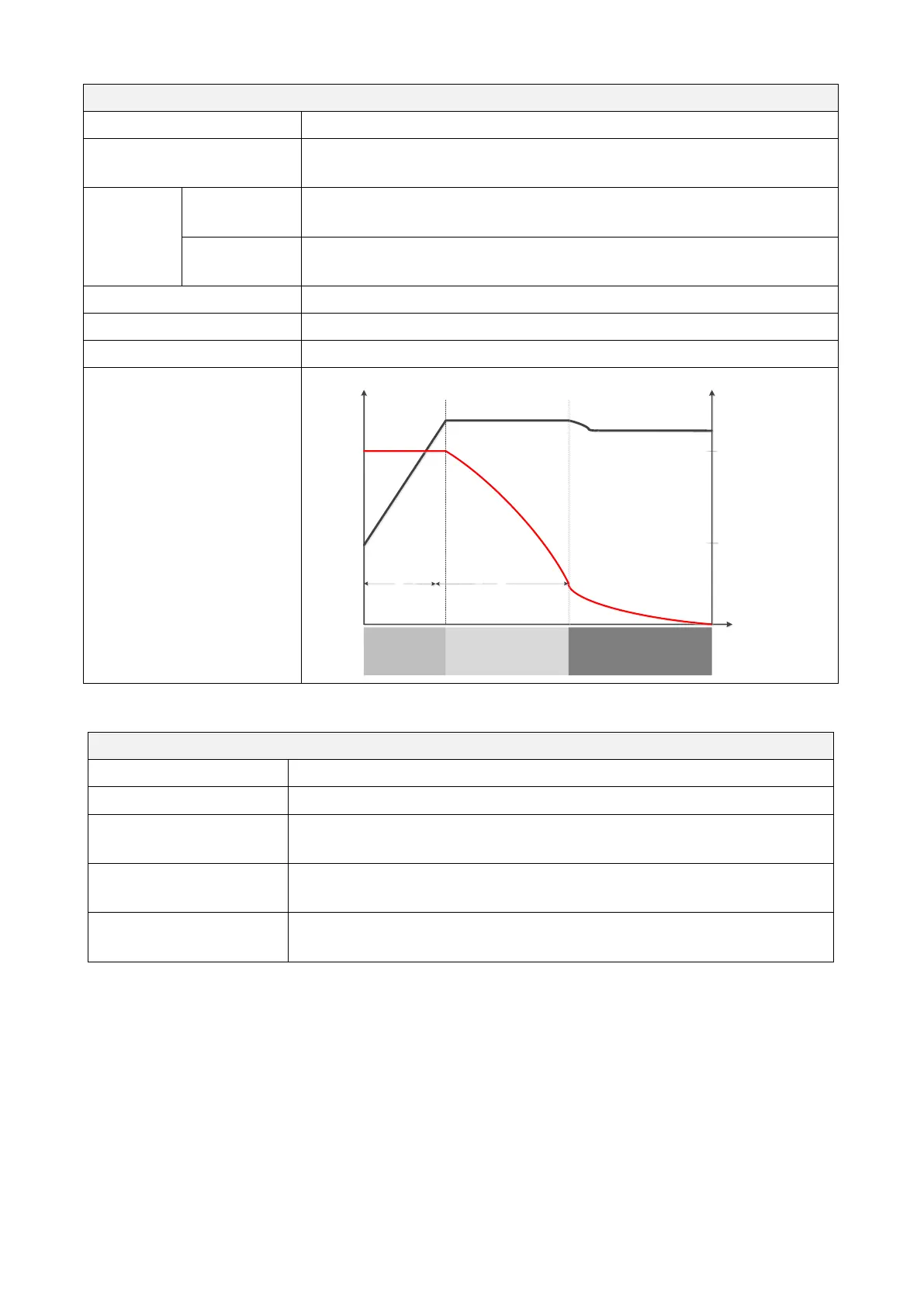

Table 3 Charge Mode Specifications
Charging Mode
INVERTER MODEL
PIP5048MKX
Charging Current
@ Nominal Input Voltage
Default: 30A, max: 100A
Bulk
Charging
Voltage
Flooded
Battery
58.4Vdc
AGM / Gel
Battery
56.4Vdc
Floating Charging Voltage
54Vdc
Overcharge Protection
66Vdc
Charging Algorithm
3-Step
Charging Curve
Time
Battery Voltage, per cell
Charging Current, %
100%
50%
Bulk
(Constant Current)
Absorption
(Constant Voltage)
Maintenance
(Floating)
Current
Voltage
T
1
T1 = 10* T0, minimum 10mins, maximum 8hrs
T
0
2.43Vdc (2.35Vdc)
2.25Vdc
Table 4 Solar Specifications
Solar Input (MPPT type)
INVERTER MODEL
PIP5048MKX
Rated Power
6000W
Max. PV Array Open
Circuit Voltage
500Vdc
PV Array MPPT Voltage
Range
120~430V
Maximum solar input
current
27A

MPP Solar PIP5048MKX Specifications

General

Brand	MPP Solar
Model	PIP5048MKX
Category	Inverter
Language	English
