3. Installation and Operation
After configuration, please install LCD panel with inverter and Lithium battery with the following steps.

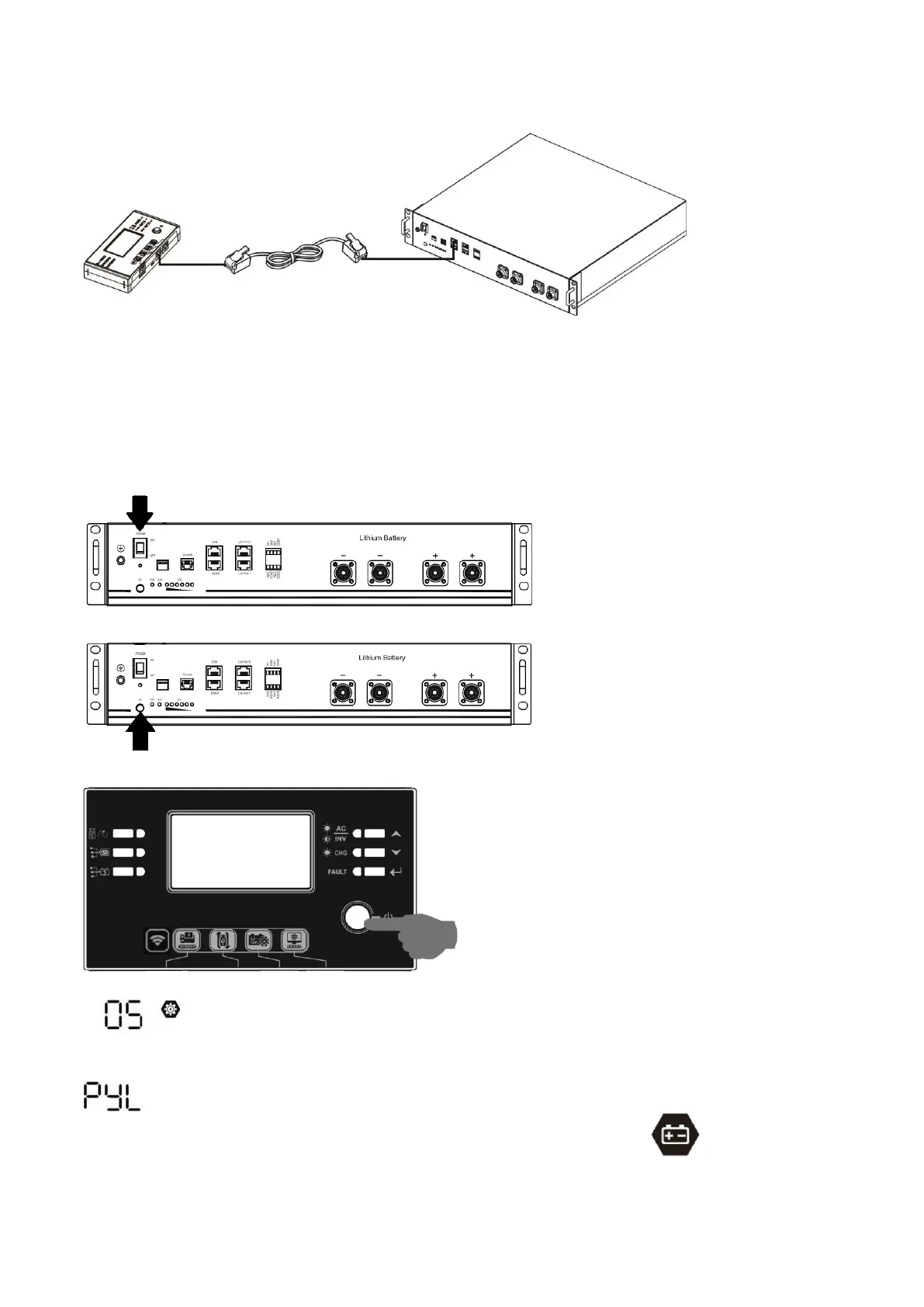

Step 1. Use custom-made RJ45 cable to connect inverter and Lithium battery.
Please take notice for parallel system:
1. Only support common battery installation.
2. Use one custom-made RJ45 cable to connect any inverter (no need to connect to a specific inverter) and
Lithium battery. Simply set battery type of this inverter to “PYL” in LCD program 5. The remaining
inverters are set as “USE”.
Step 2. Switch on Lithium battery.
Step 3. Press more than three seconds to start Lithium battery. Output power is ready.
Step 4. Turn on the inverter.
Step 5. Be sure to select battery type as “PYL” in LCD program 5.
If communication between the inverter and battery is successful, the battery icon on LCD display will
flash. Generally speaking, it will take longer than 1 minute to establish communication.
