MPPT SMPPT20D User Manual

SMPPT Installation & Operation Manual Version 1.0
12
SMPPT10D dimensions(Figure 4.1-1):
Mounting hole pitch: 60mm*169mm
Mounting hole diameter: Ф4.2mm
Height*Width*Thickness: 101.4mm*178mm*45.5mm
Connecting terminals: Maximum 10mm²

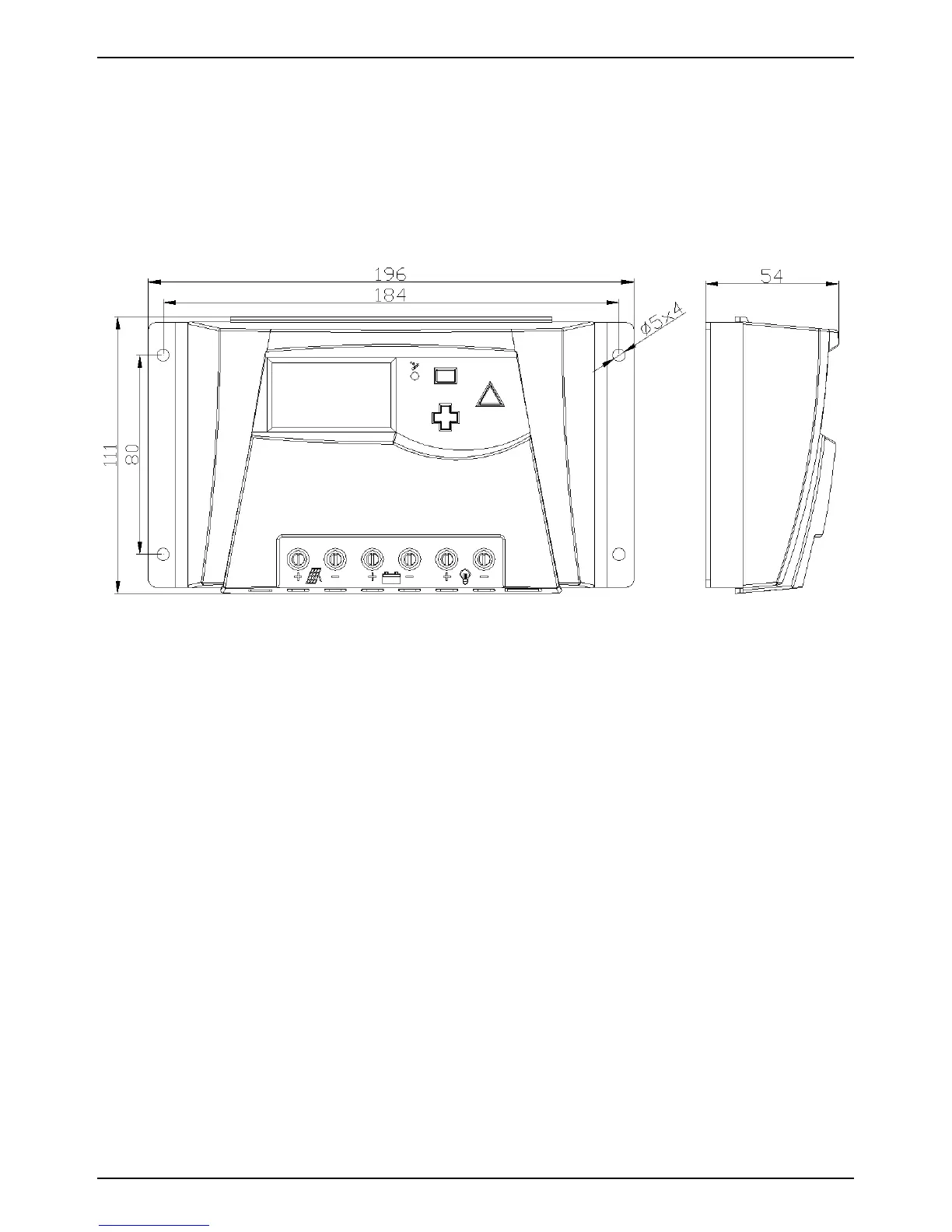

Figure 4.1-2: Dimensions for SMPPT20D (Unit: mm)
SMPPT20D dimensions(Figure 4.1-2):
Mounting hole pitch: 80mm*184mm
Mounting hole diameter: Ф5mm
Height*Width*Thickness: 111mm*196mm*54mm
Connecting terminals: Maximum 16mm²

MPPT SMPPT20D Specifications

General

Brand	MPPT
Model	SMPPT20D
Category	Controller
Language	English
