SMPPT
Inst
allation &
Operat
ion Manual
V
ersion 1.0
13

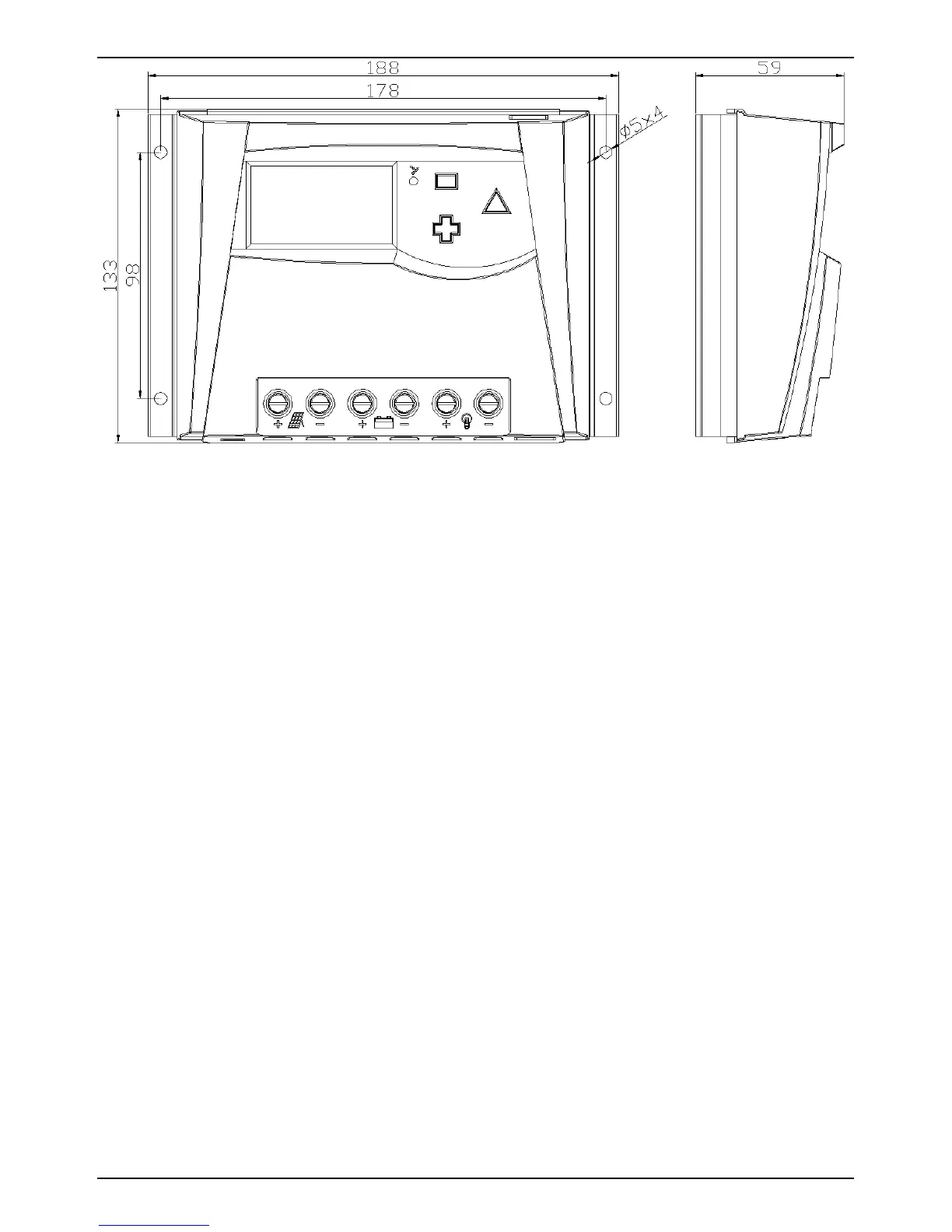

Figure 4.1-
3: Dimens
ions for SM
PPT30D (Un
it: mm)
SMPPT30
D dimensi
ons(Figure 4.1
-3):
Mounting ho
le pitch:
98mm*177mm
Mounting ho
le diam
eter:
Ф5mm
Height*
W
id
th*Thic
kness:
128mm*187mm*
59mm
Connect
ing termina
ls:
Maximum 35
mm²
4.2 Connecting Diagram
13
15
