MPPT SPT-10A - Controller Operation; Button Functions; LCD Display and Status

15
Operation
Button Function
Button
Function
SELECT button
• Browse interface
• Setting parameter
ENTER button
• Load ON/OFF
• Clear error
• Enter into Set Mode
• Save data
LCD DISPLAY

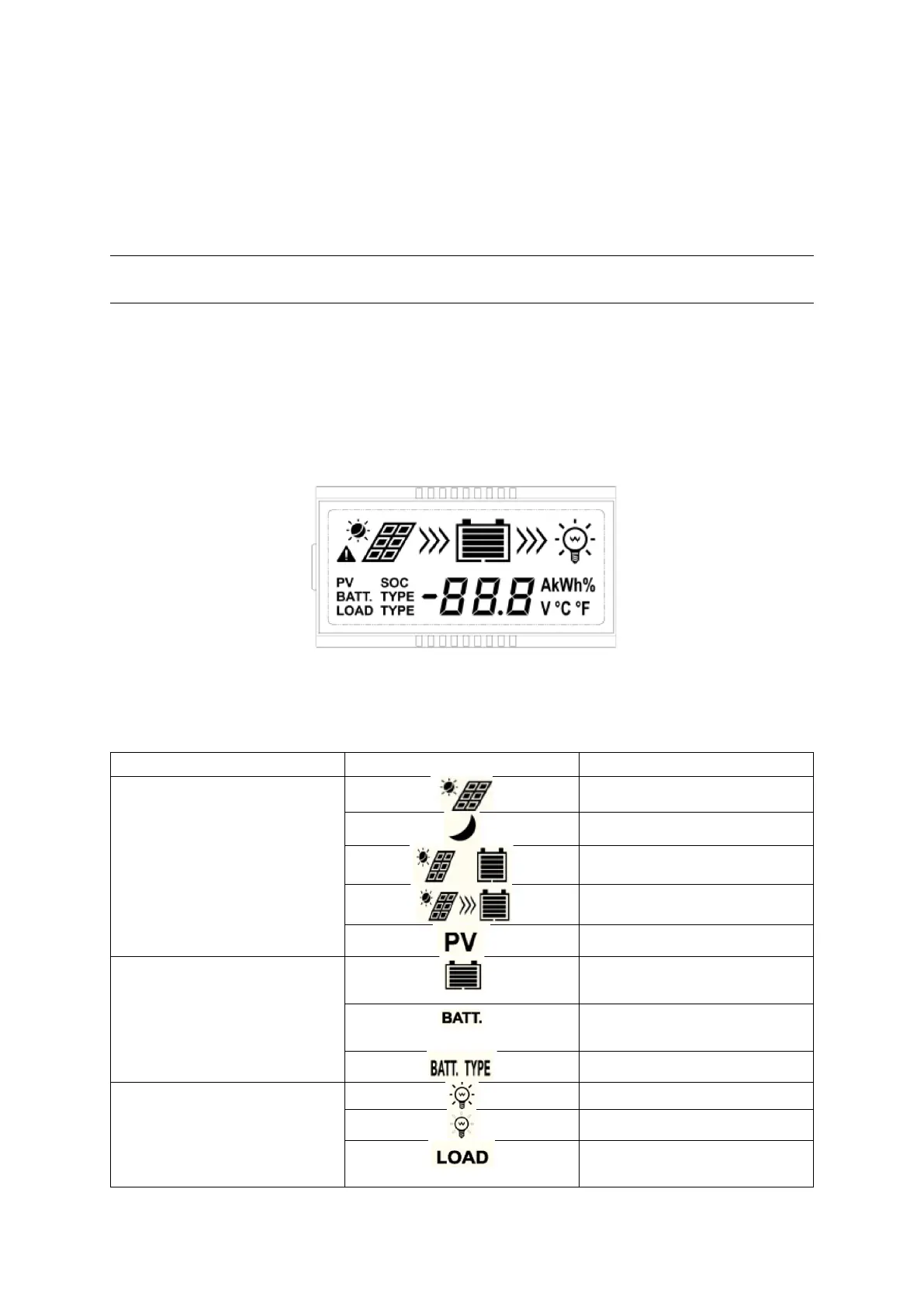

Figure 3-1 LCD
Status Description
Item
Icon
Status
PV array
Day
Night
No charging
Charging
PV Voltage, Current, Power
Battery
Battery capacity, In
Charging
Battery Voltage, Current,
Temperature
Battery Type
Load
Load ON
Load OFF
Load Voltage, Current,
Load mode
