MR VACUTAP - Page 52

6 Fault elimination
Maschinenfabrik Reinhausen GmbH 202052 5788897/03 ENVACUTAP
®
VVS
®
3. Remove the bracket at the top of the selector switch insert and fit it back
onto the energy accumulator.

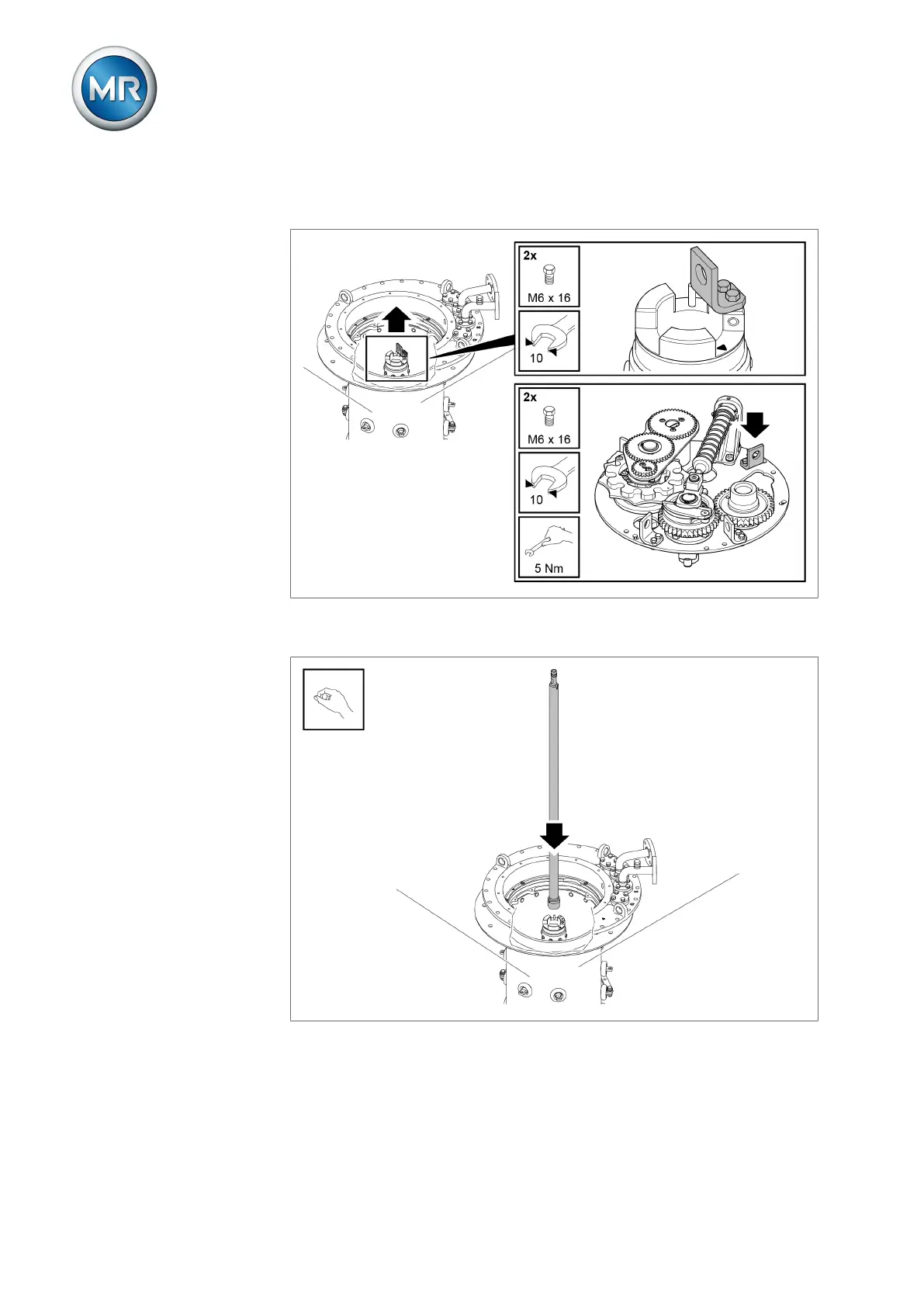

Figure35: Securing the bracket onto the energy accumulator
4. Insert the oil suction pipe into the selector switch insert.
Figure36: Inserting the oil suction pipe
