3 Product description
Maschinenfabrik Reinhausen GmbH 2020 255788897/03 EN VACUTAP
®
VVS
®
3.2.2 Design/versions
The drive shaft consists of a square tube and is coupled at each end by two
coupling brackets and one coupling bolt to the driving or driven shaft end of
the device to be connected.

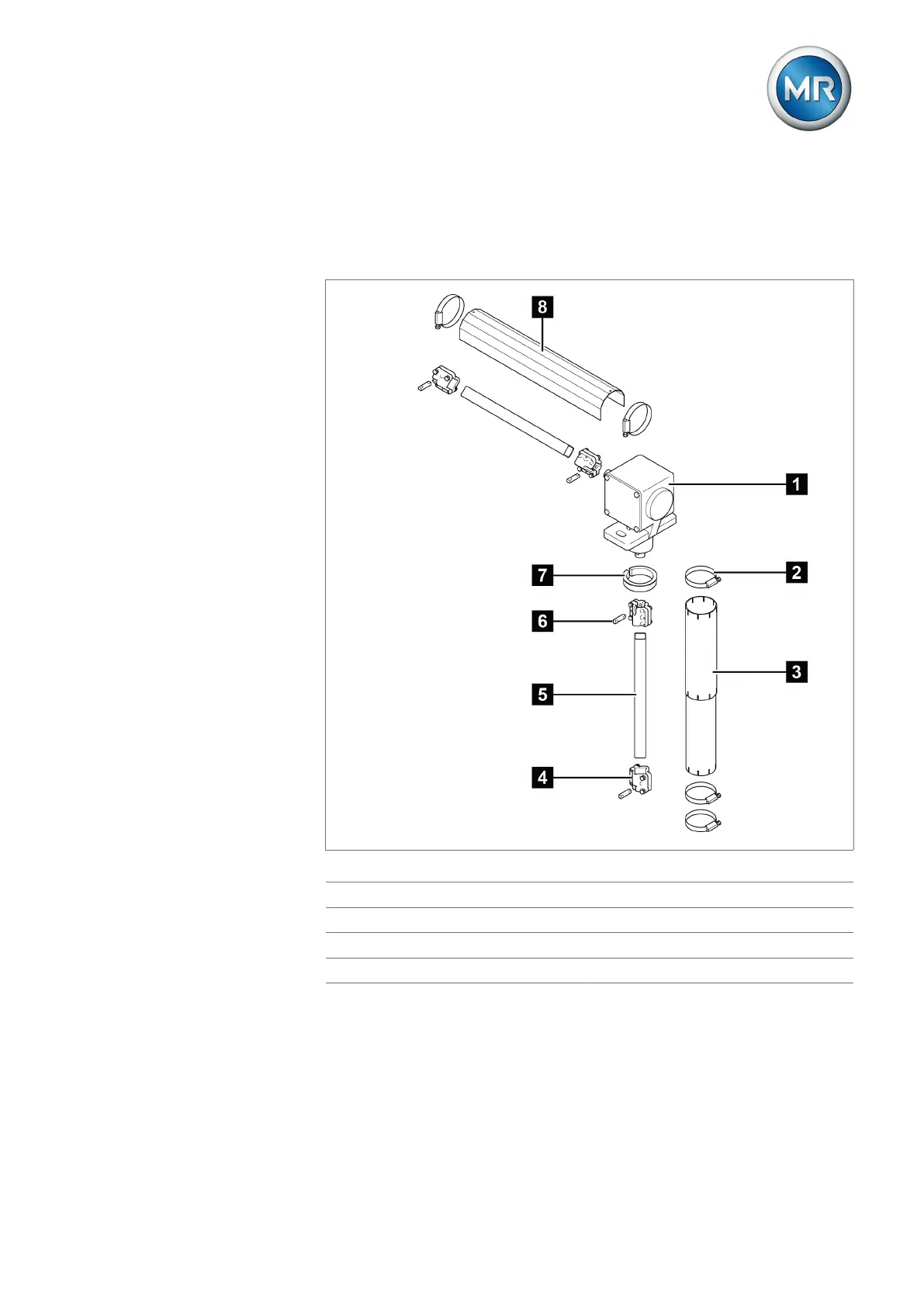

Figure11: Components of the drive shaft
1 Bevel gear 2 Hose clip
3 Telescopic protective tube 4 Coupling bracket
5 Square tube 6 Coupling bolt
7 Adapter ring 8 Protective cover
