7.3.5 Installing horizontal drive shaft
1. Secure horizontal drive shaft between upper gear unit and bevel gear with
coupling brackets and 4 or 6 screws. Refer to the drive shaft operating in-
structions for details.

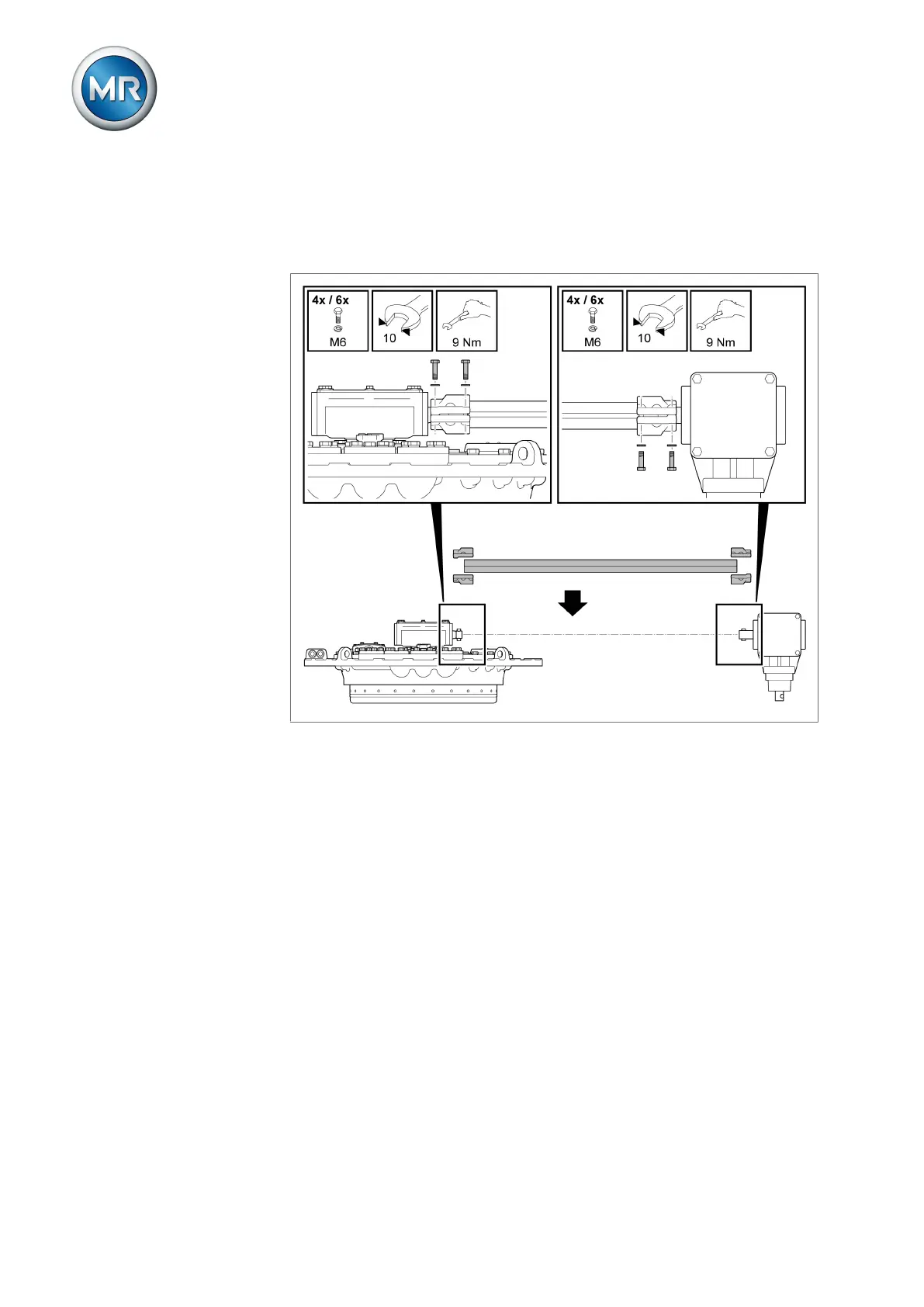

Figure64: Securing drive shaft
