7. NOTICE! Damage to the change-over selector and oil compartment in the
event of collisions during insertion.Insert change-over selector such that
the adjustment marking on the change-over selector is offset by around
30° from the adjustment marking on the on-load tap-changer head. When
doing so, ensure that the change-over selector does not collide with the oil
compartment.

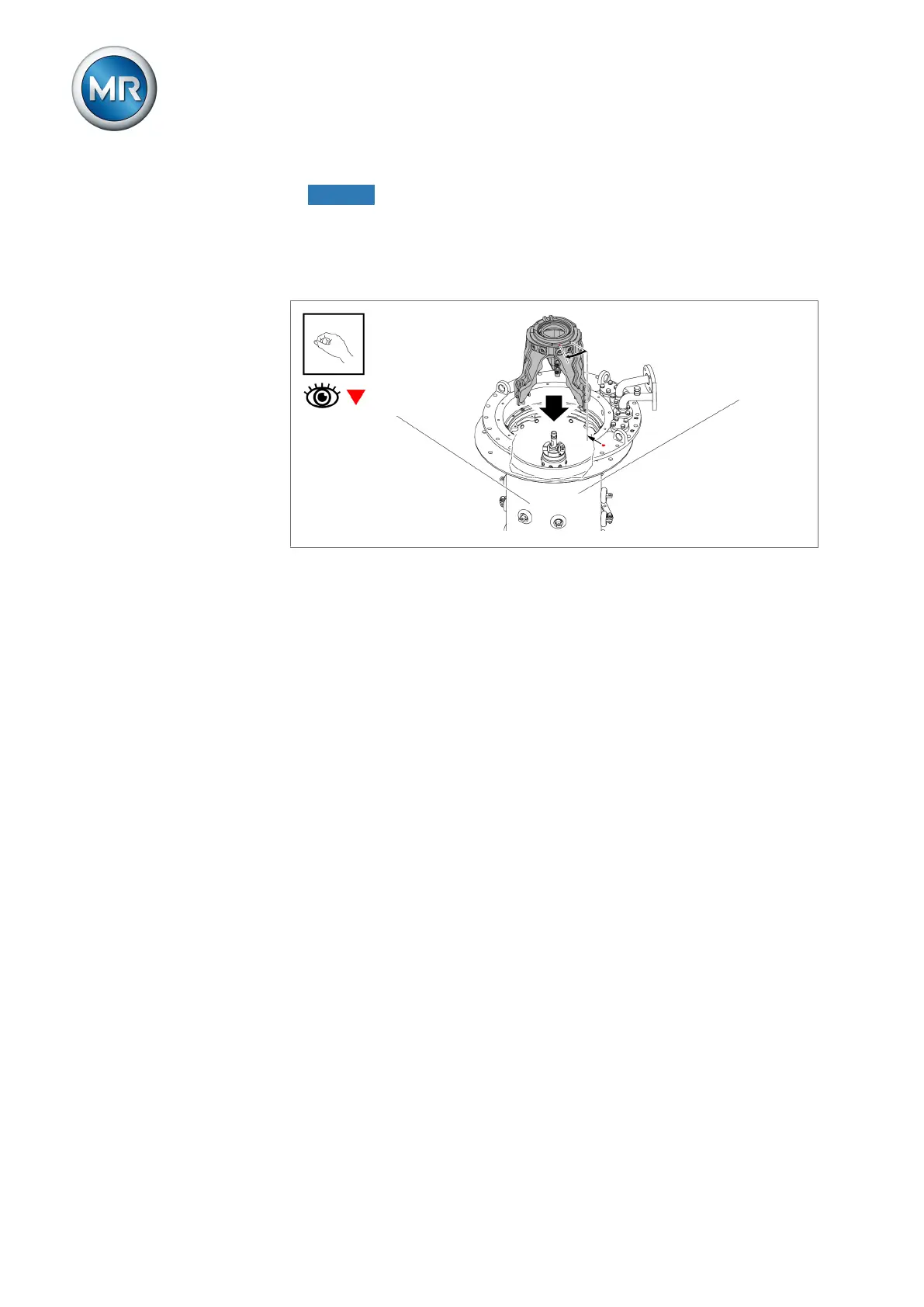

Figure39: Inserting change-over selector
