6 Fault elimination
Maschinenfabrik Reinhausen GmbH 2020 575788897/03 EN VACUTAP
®
VVS
®

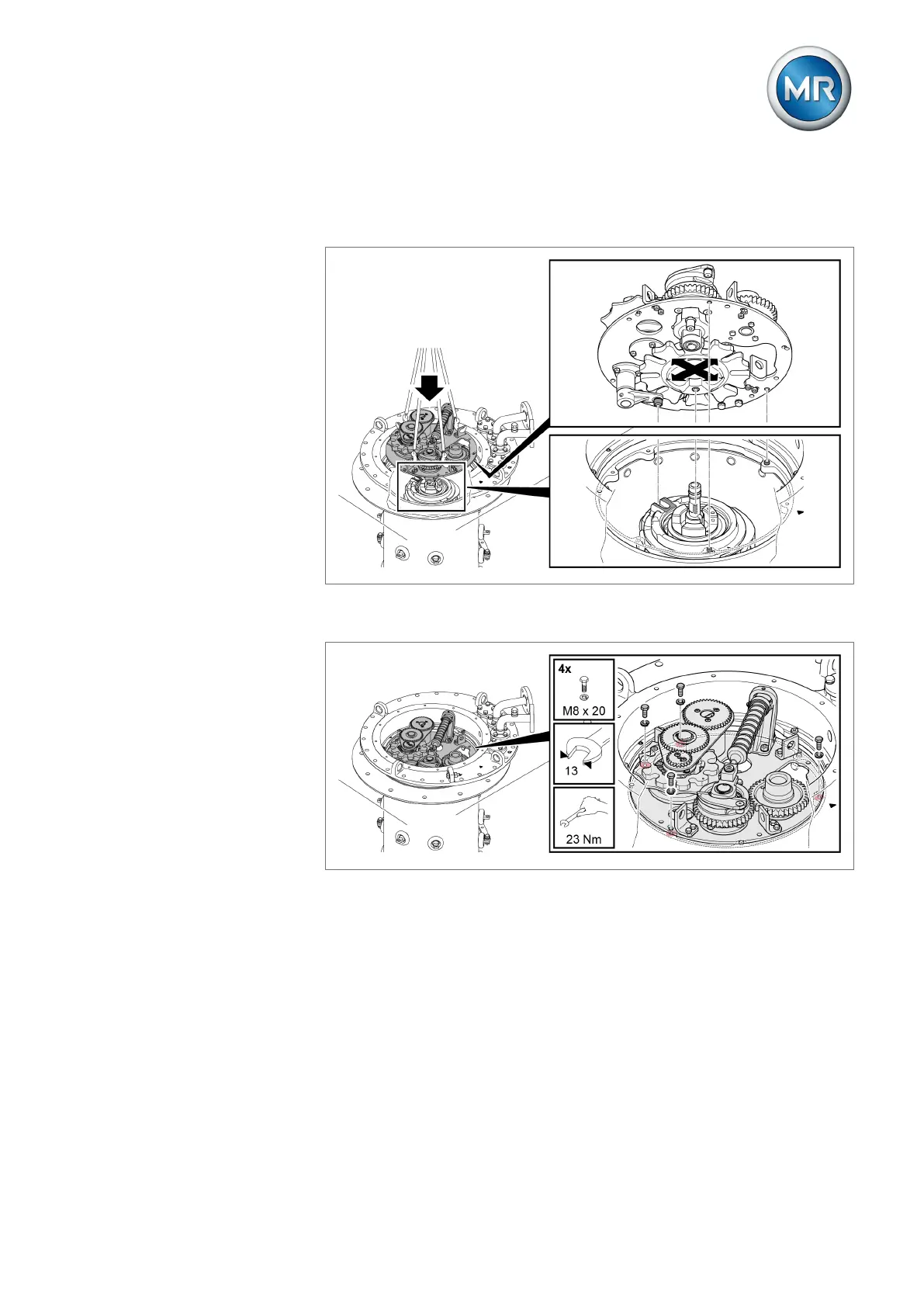

11. Turn energy accumulator a little back and forth so that the change-over
selector's roll engages in the groove and the gear plate is centered by
the upper head section's centering pins.
Figure44: Aligning energy accumulator
12. Screw down energy accumulator.
Figure45: Screwing down energy accumulator
