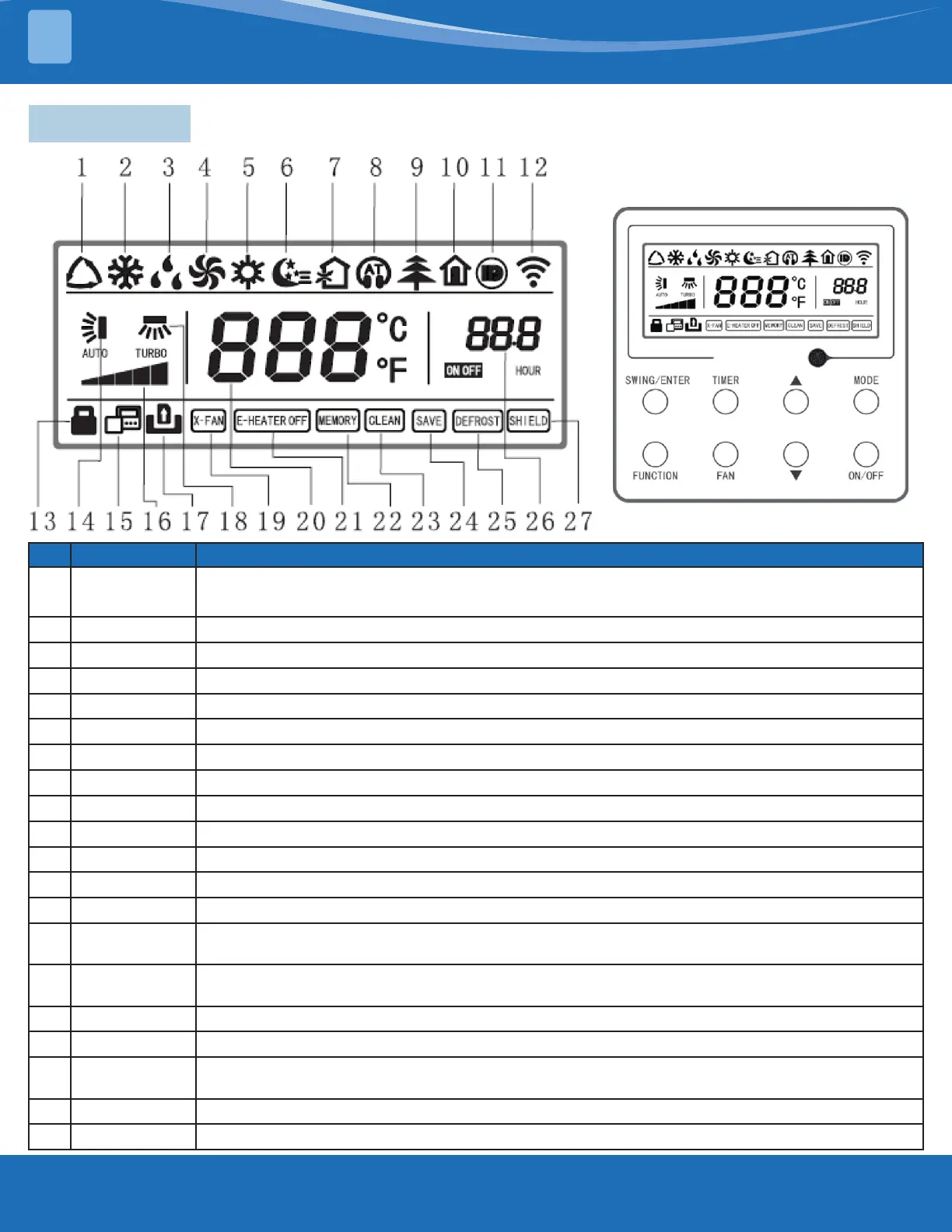

WIRED CONTROLLER
2
No. Display Description
1 Auto
Automatic Mode (under auto mode, the indoor unit will select its operating mode according to the
variation of room temperature)
2 Cool Cooling Mode
3 Dry Dry Mode
4 Fan Fan Mode
5 Heat Heating Mode
6 Sleep Display when sleep function is set (only display sleep mode II)
7 Exchange Display when air exchange function is set
8 Silent Display when silent function is set (only display silent, no AT)
9 Health Display when health function is set
10 Absent Display when absent function is set
11 I-Demand Display when I-Demand function is set
12 WiFi WiFi function icon
13 Child-Lock Child-lock status; display when child-lock function is set
14
Up & Down
Swing
Display when up and down swing function is set
15
Slave Wired
Controller
Icon of slave wired controller; display when slave wired controller is set
16 Fan Speed Currently set fan speed (auto, low, medium and low, medium, medium and high, high, and turbo)
17 No Card No card in gate control system
18
Left & Right
Swing
Display when left and right swing function is set
19 X-Fan Display when dry function is set
20 Temperature Displays set temperature
2.1 Display
