Universal digital repeater
DR-209M
Page 35
Name
Function
«1»
To set up stop bits
«2»
To edit port settings
To add the selected type of NMEA data to port traffic
To delete all types of NMEA data from port traffic
To delete the selected current NMEA sentence from port traffic
2.3.13.4 Inclinometer settings
The Product may receive data of pitch and heel angle, roll period, amplitude port
and starboard from inclinometer.
In this case the Product operates as a secondary display unit and recommended
for application on stations with low level of responsibility.
To display data received from the inclinometer, a user shall select Inclinometer in
drop-down list of NMEA sentences.
To set up / edit inclinometer data, provide the similar settings for other NMEA
sentences as described in cl. 2.3.13.2.
2.3.14 Rx tab page
Tab page Rx ensures a diagnostic check of ports operability, see Figure 27. All
received data are displayed on the screen regardless of pre-configured port settings.
The controls of Rx tab page are represented in Table 24.

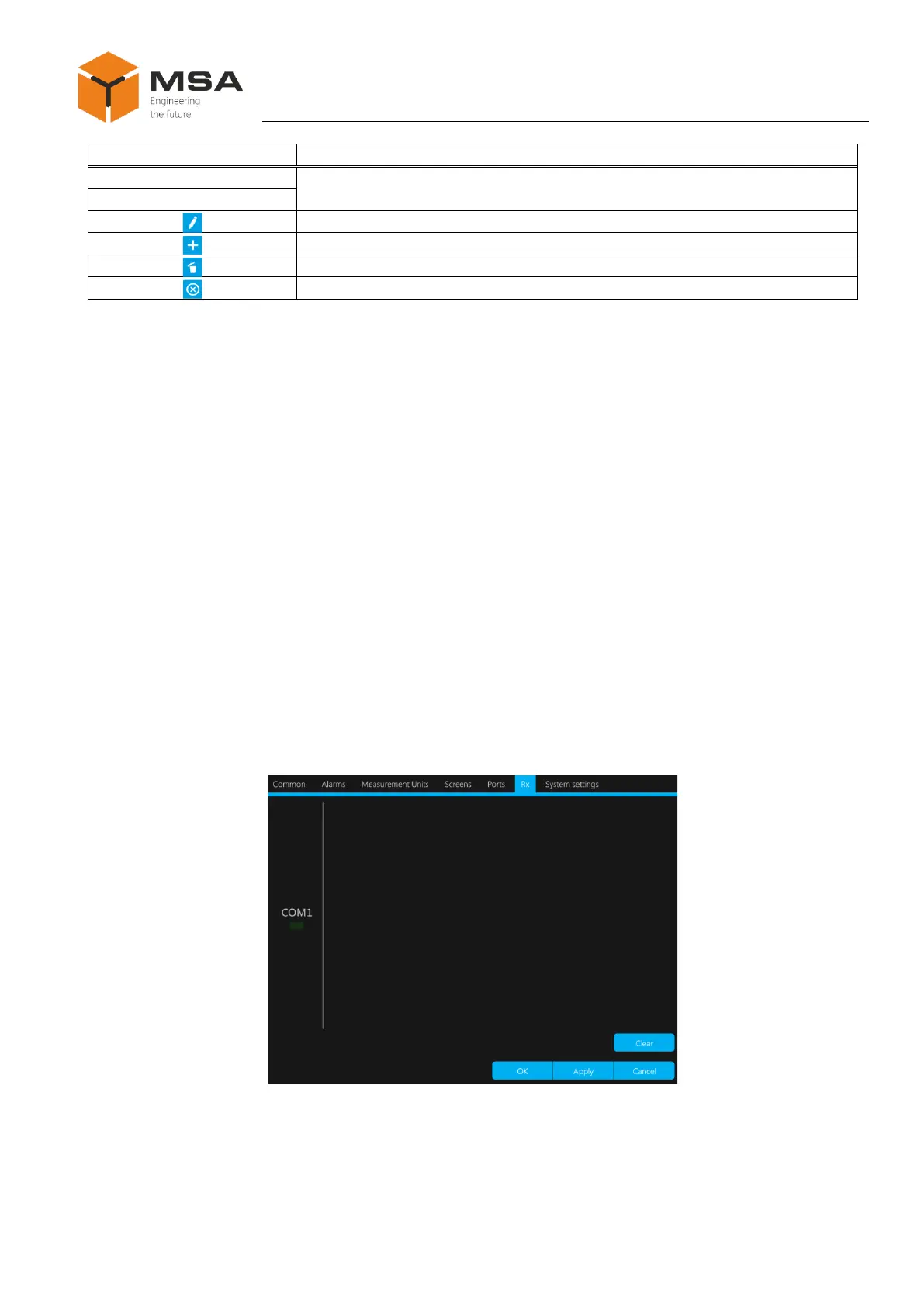

Figure 27 – Rx tab page
An LED indicator is located in the field of each port. At the moment of transmis-
sion it is periodically glowing.
