14
GB
GB

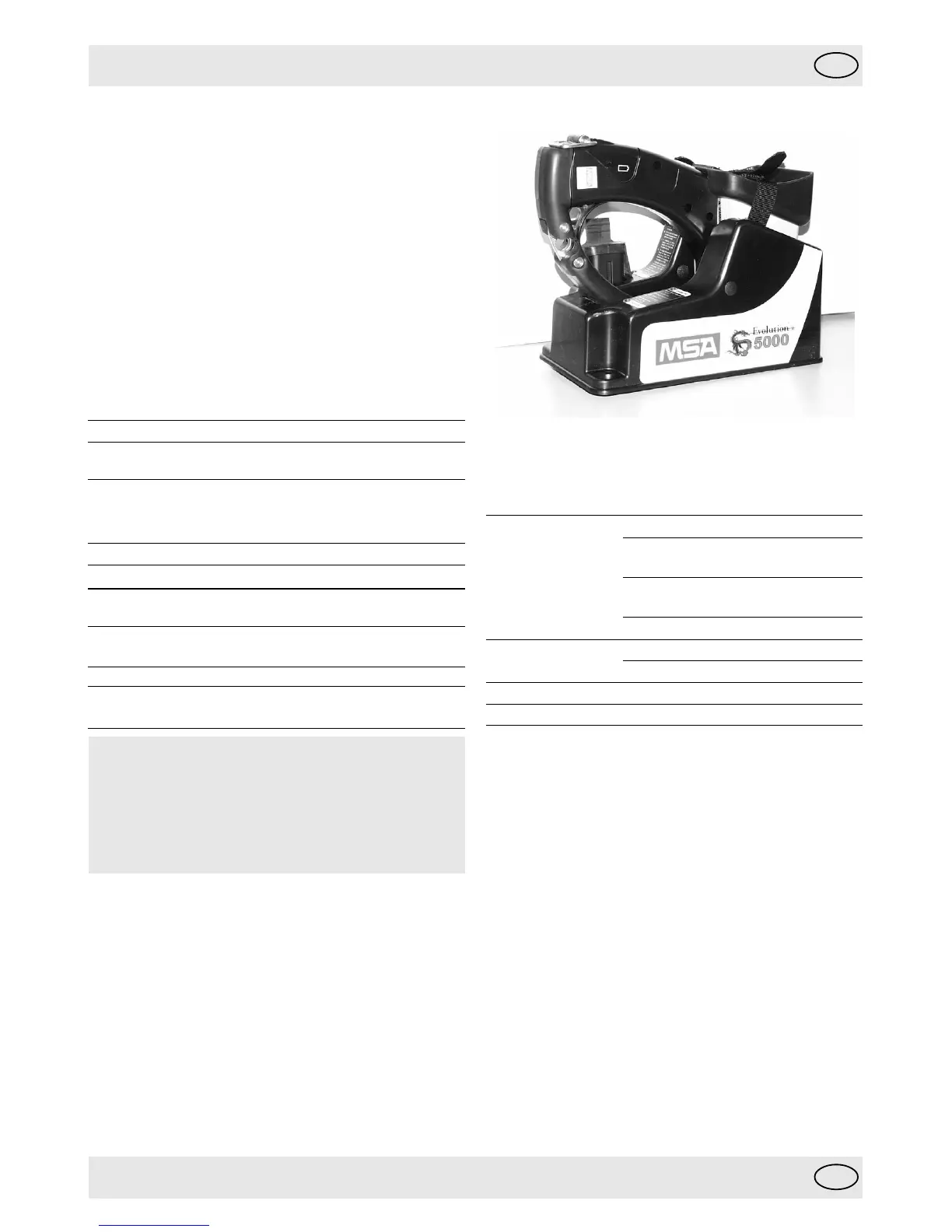

Fig. 19: EVOLUTION 5000 and Truck-Mounted Charging
System
Specifications
Dimensions Width 265 mm (10.4 in)
Height 155 mm (6.1 in)
without camera
Height 230 mm (9.1 in)
with camera
Depth 145 mm (5.7 in)
Weights (without without camera 770 gr. (1.69 Ibs)
mounting kit) with camera 2070 gr. (4.56 Ibs)
Weight Mounting Kit only 310 gr. (0.68 Ibs)
Voltage Range 12.5–26.0 V DC
8. Installation
Getting Started
The EVOLUTION 5000 TIC Truck-Mounted Charging System
must be correctly installed before use. Read all installation
instructions thoroughly before starting actual installation.
What you will need:
x Electric drill
x 5 mm and 7 mm drill bits
x 6 mm tap
x Phillips head screwdriver
x Stainless steel bolts (4)
x 5-amp in-line fuse
x Master ON/OFF switch
x Strain relief bushing for power supply cable
x Mounting kit (provided) – Fig. 20 –, including 3 meters/
10 ft. power supply line
7. Operation
To charge the TIC and spare batteries using the EVOLUTION
5000 Truck-Mounted Charging System make sure the TIC
charging pins and cradle are clean and free from debris.
1. Place the TIC into the charging cradle with the display
facing outward; secure the unit with the straps on the
charging cradle.
2. If charging a spare battery, place the battery into the slot
provided and secure it with the rubber retainer.
The power LED indicator should always remain green when
the power source is ON and properly connected. When the
Truck-Mounted Charging System is correctly installed, the
status indicators will light as follows:
Power Status LED Indicators
Off System Fault
Green Power ON/
System Operational
Battery LED Indicators
Off No Battery Installed
Green Charge Completed
Fast blinking, Charging
Green
Slow blinking, Charge Pending
Green
Red Fault
Any LED indication other than those listed indicates faulty
operation and the unit must be returned to MSA for service.
Note: For optimal performance, the battery charger should
be operated at temperatures between 10 to 30 °C (50 to
85 ° F). Charging batteries outside this temperature range
may result in a charging error and/or premature battery
degradation.
Charging batteries in environments greater than 38 °C
(100 °F) may result in premature termination of charge.
The charging cycle takes approximately 2.5 hours to
completely charge a single battery or five hours when
charging two completely discharged batteries.
